P218 WESITERN

01
There is a video
p218

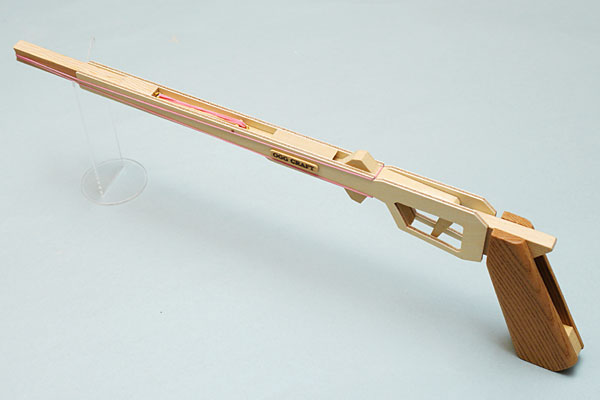

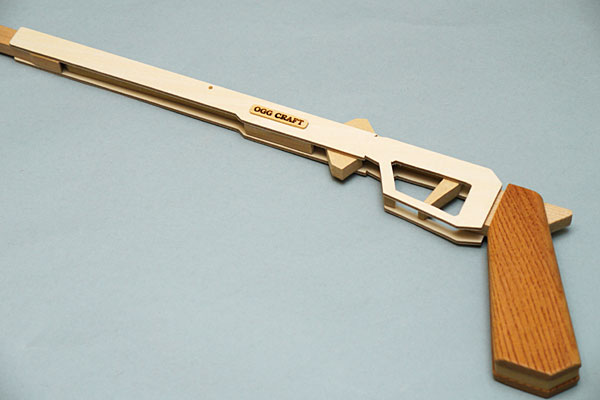

The P218 WESITERN, is a 2 rounds semi-automatic rubber band gun. It has a "Ramp-release-system" and a new idea for the semi-automatic action.

p218

The moving part is one only.

p218

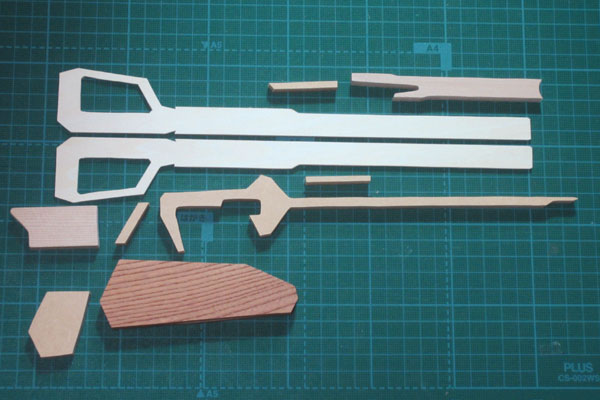

The all parts were cut with a scroll saw.

p218

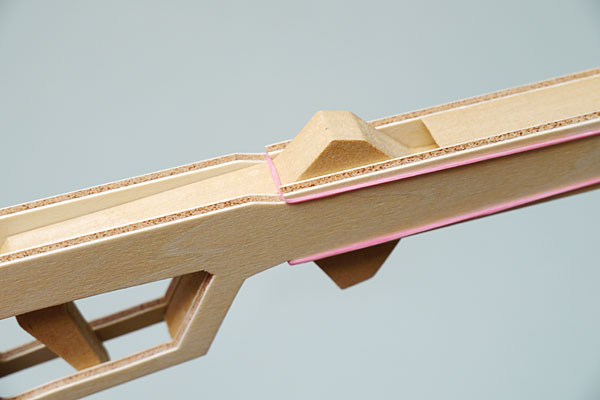

The trigger has two "Shark-Fin-Releasers" at the over and under.

p213

The trigger has to be slided and rotated at the same time. It has a steepled front tip for the complex action.

p218

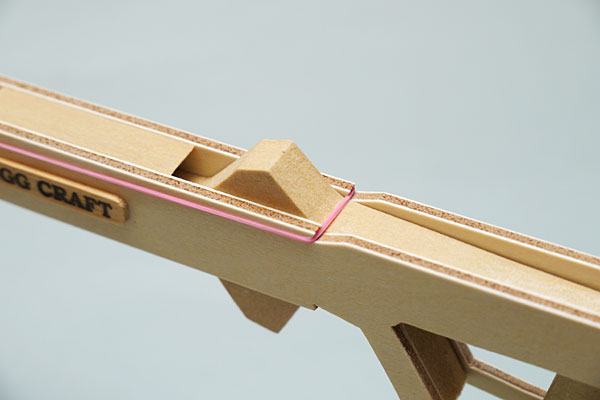

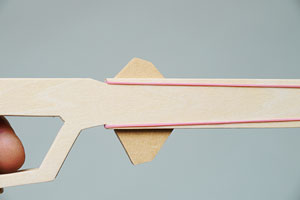

Loaded 2 rubber bands at the over and under.

p218 p218

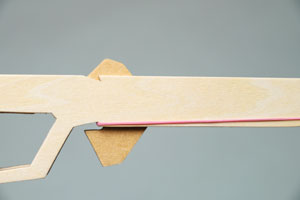

When the trigger is pulled, the over rubber band is released by the over releaser. But under rubber band never be released because of the dent of the under releaser.

p218

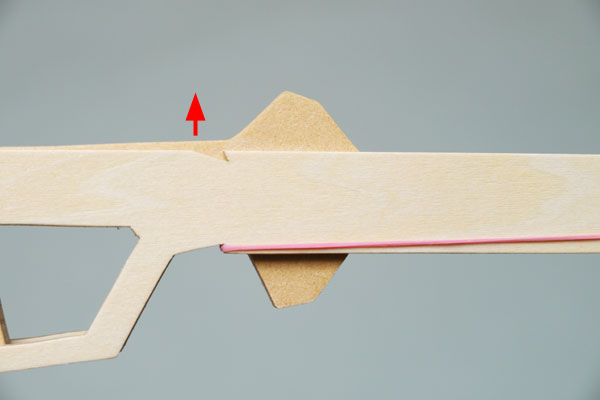

When the trigger is returned, it moves up a little. And at the next pulling, the under rubber band is released by the under releaser.

p218

The similar "whiff" idea has been used already in the P605 FUDOH made in 2008.

p218

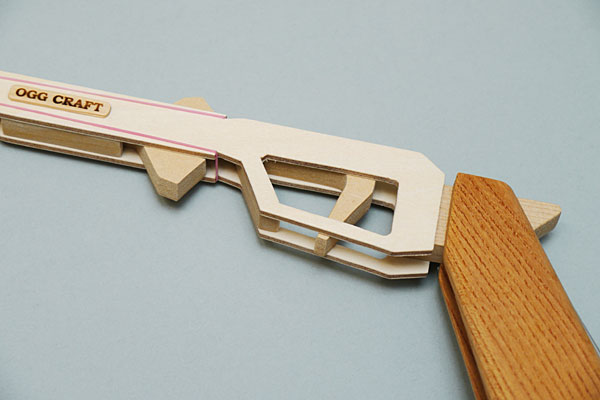

The trigger sticks out from the trigger guard.

p218

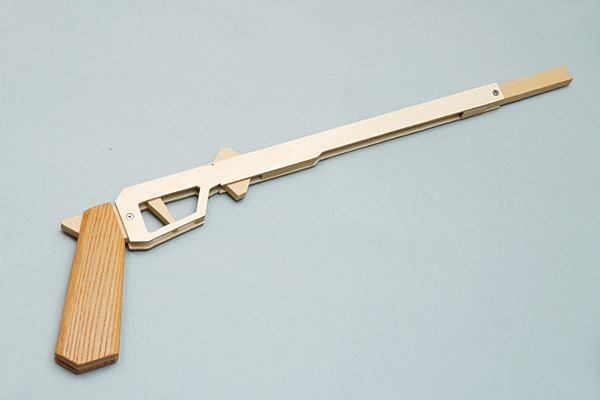

The right view.

p218

The left view.
The name "WESITERN" comes from "UE-SHITAN". It means "Over and Under" in Japanese.

p218

Made from plywood (Frame-panels), Japanese cypress (Barrel), MDF (Trigger) and Japanese zelkova (Grip-panels). Coated with urethane clear paint.

p218

Please watch the video.

YouTube video

p218

I made three models have a same thema ("Shark-Fin-Release" and "One-Moving-Part only").

That is continued to the 2nd model, P219 MIKASA.


- SPECIFICATION -

<Completion Date> 2014/06
<Model Name> P218 WESITERN
<Category> Hand Gun
<Length> 420 MM
<Barrel Length> 280 MM
<Capacity> 2 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto

2014.06.18 UP
