P219 MIKASA

OGG CRAFT
There is a video
p219

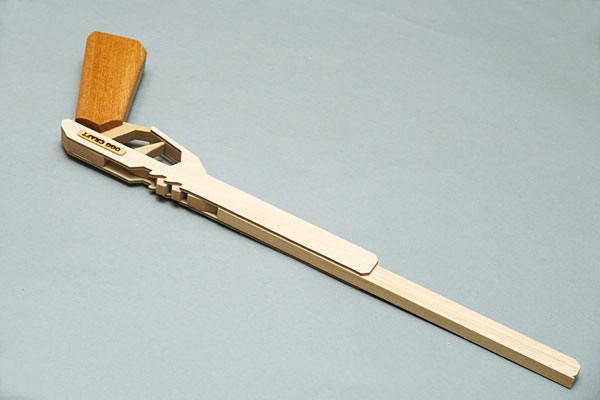

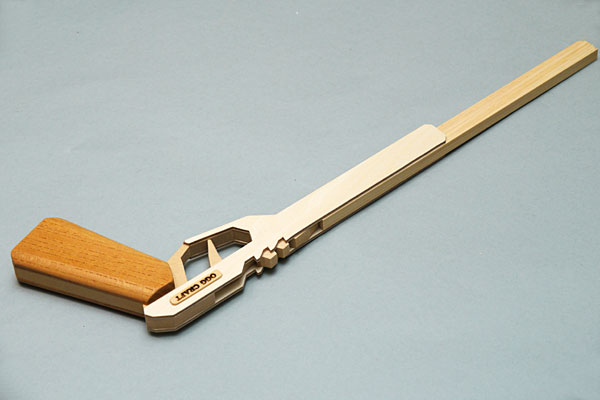

3 rounds semi-automatic gun P218 MIKASA. It has a "Ramp-release-System" and the moving part is one only.

p219

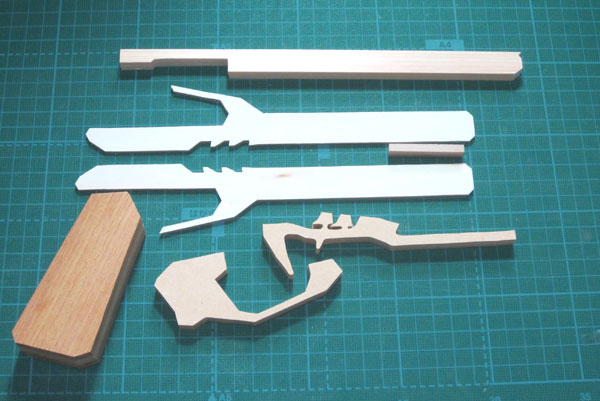

The all parts were cut with a scroll saw.

p219

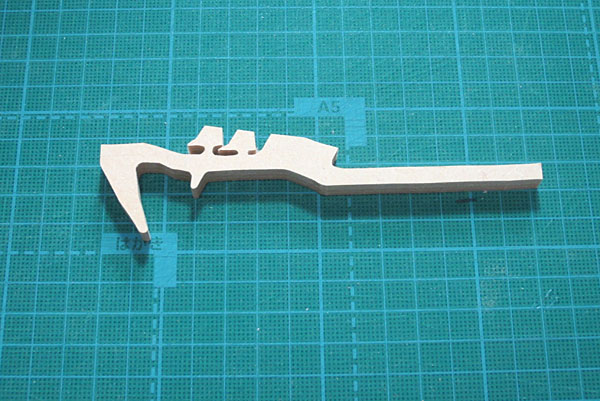

The strange shaped trigger. It has umbrella-like releasers.

p219

The small releaser-part, has 3 ramps and 4 pallets.

p219

It has a "Pallet-Escapement" like a common semi-automatic rubber band gun.

p219

Saw blade-like holding hooks. The trigger is pulled forward and downward by the trigger spring.

p219

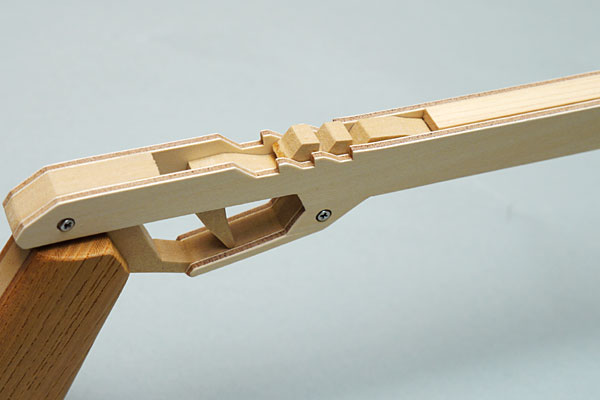

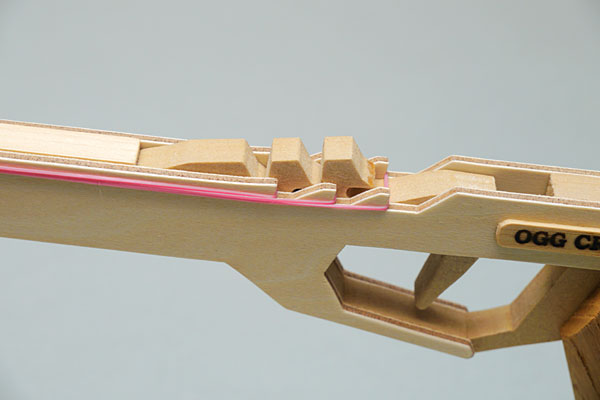

3 rounds. The loading is very complex.

p219

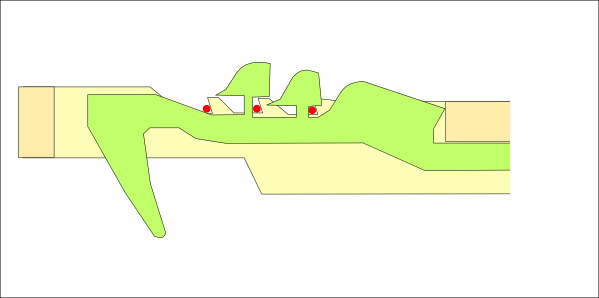

GIF animation to explain the escapement-action.

p219

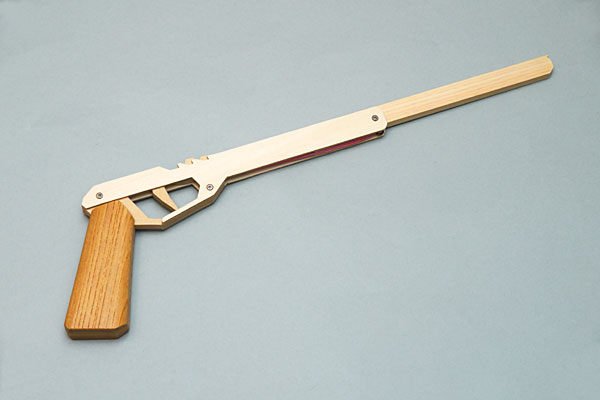

The right view.

p219

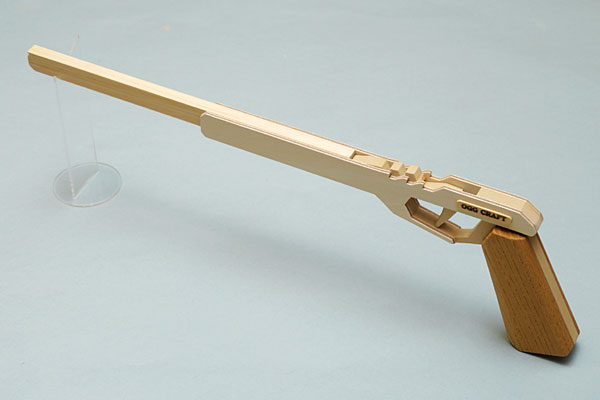

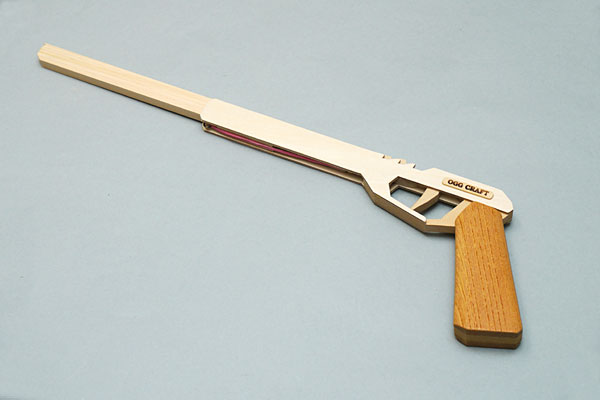

The left view.
The name "MIKASA" means "Three umbrellas" in Japanese.

p219

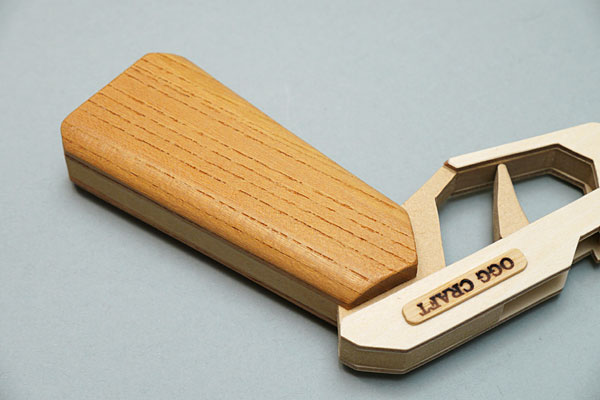

Made from plywood (Frame-panels),
Japanese cypress (Barrel),
MDF (Trigger, Grip-base) and Japanese zelkova (Grip-panels).
Coated with urethane clear paint.

p219

Please watch the video.

YouTube video

p219

I made three models have a same thema ("Shark-Fin-Release" and "One-Moving-Part only").

That is continued to the 3rd model, P220 GANNET.


- SPECIFICATION -

<Completion Date> 2014/06
<Model Name> P219 MIKASA
<Category> Hand Gun
<Length> 410 MM
<Barrel Length> 270 ~ 295 MM
<Capacity> 3 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto
