How to make P505 simplified Gatling Gun
OGG CRAFT

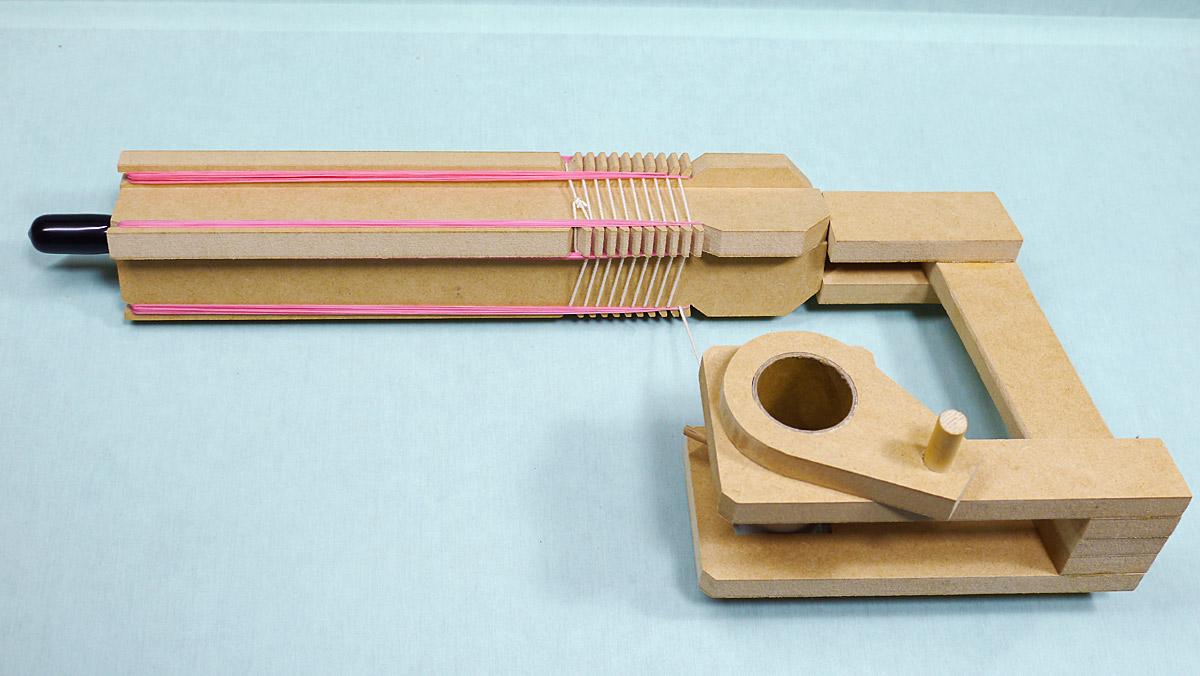

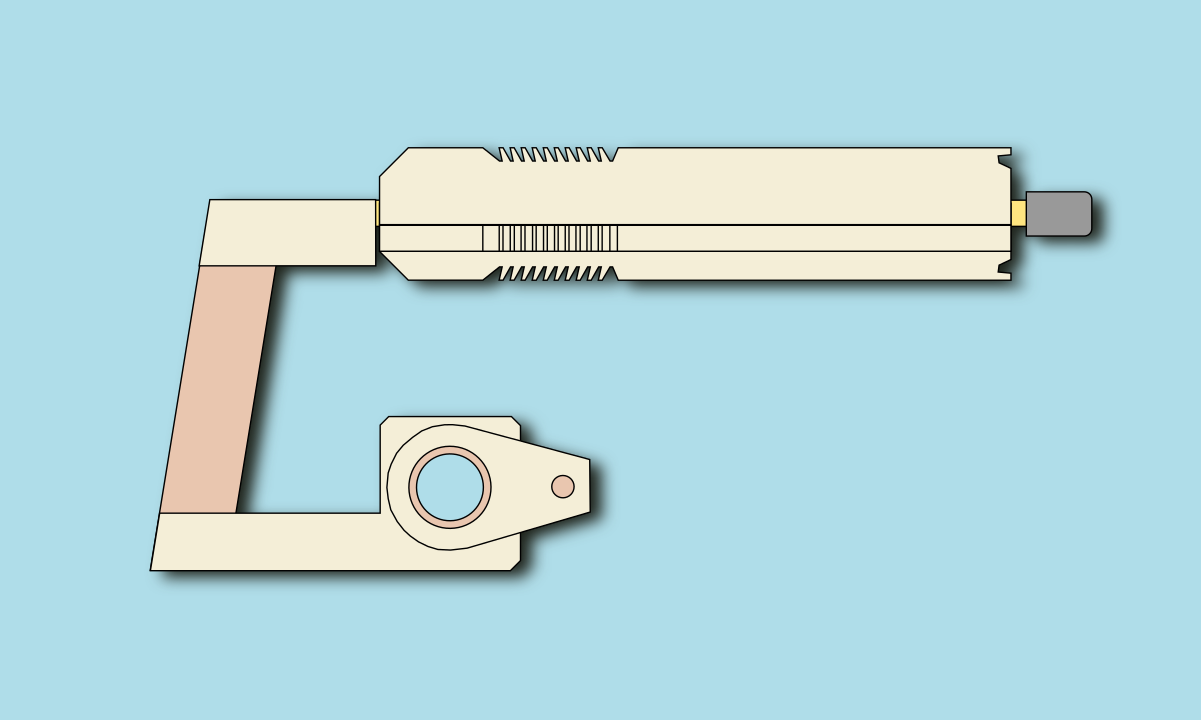

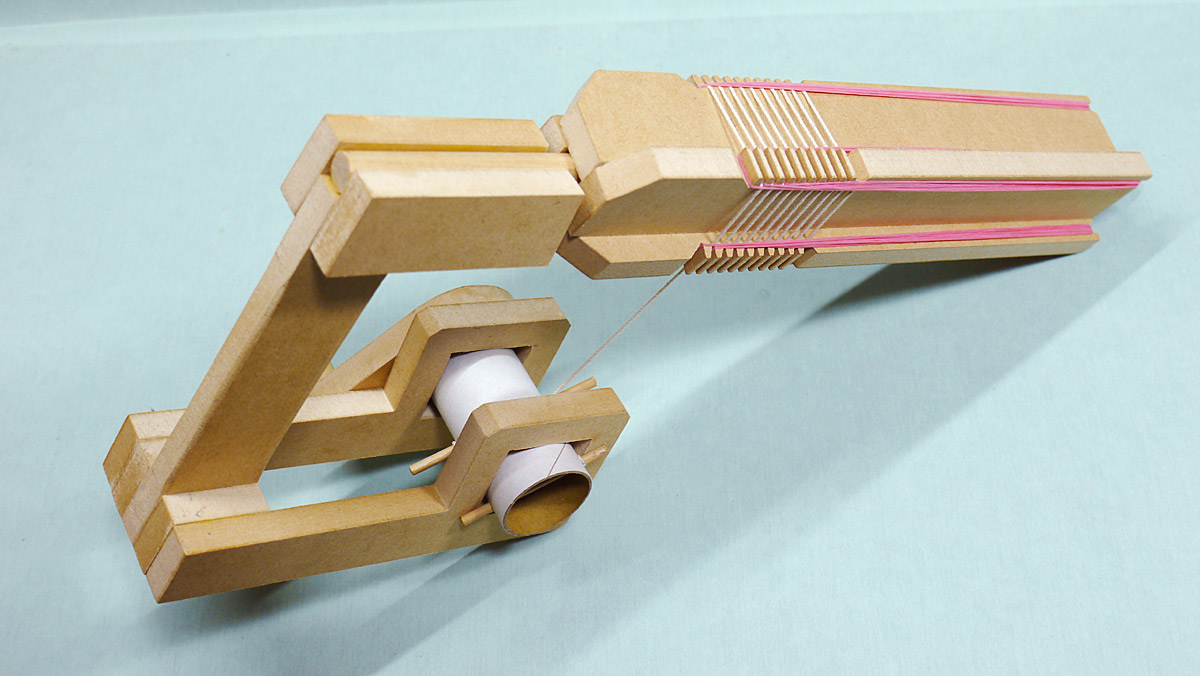

40 rounds Gatling Gun
designed on the basis of P505 FLAKEN


- About this model -

Model name: P505 simplified ver.2020

Category: Gatling machine gun

Capacity: 40 rounds

Mechanism: String release, pseudo full automatic



Youtube
- PDF plan -
PDF plan is here
- Note -
  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.
  • Do not over-load rubber bands.
  • Do not aim other person.

    • Do you understand and accept above? Then let's try to build it.
    - Materials -
  • MDF --- 12(T) mm
  • round bar --- diameter 12mm
  • round bar --- diameter 10mm
  • round bar --- diameter 3~4mm
  • something tube --- diaeter 30~40mm
  • PVC end cap --- inside diameter 12mm
  • cooking string --- about 2m length
    • - Tools -
  • Scroll saw
  • Drill press, pin vise
  • Sandpaper #240
  • Wood glue
  • Removable spray adhesive or Double sided tape
    • - Assembling -

    Please watch the Youtube video also.

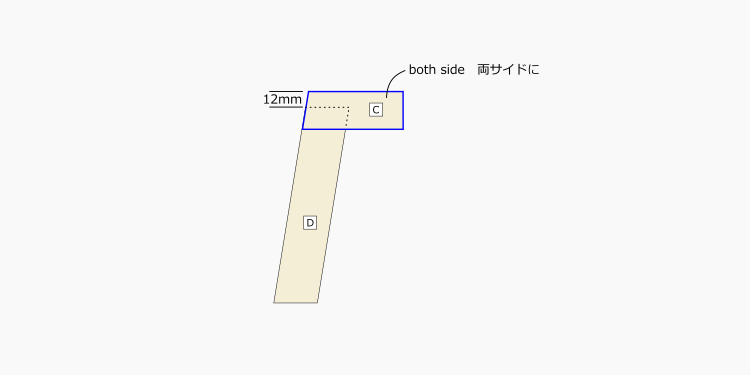

    1. Glue D and C(both side).
    OGG CRAFT

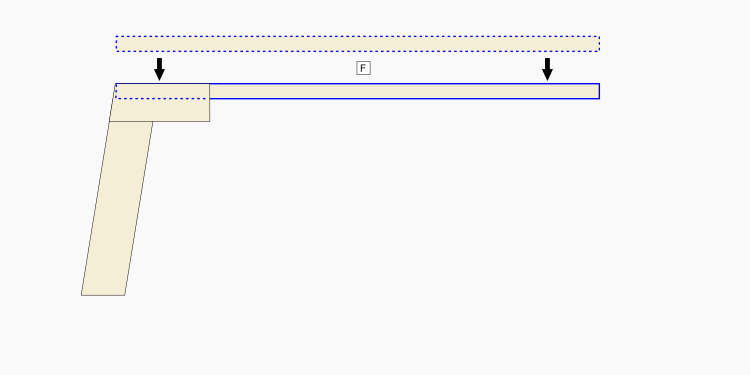

    2. Glue F.
    OGG CRAFT

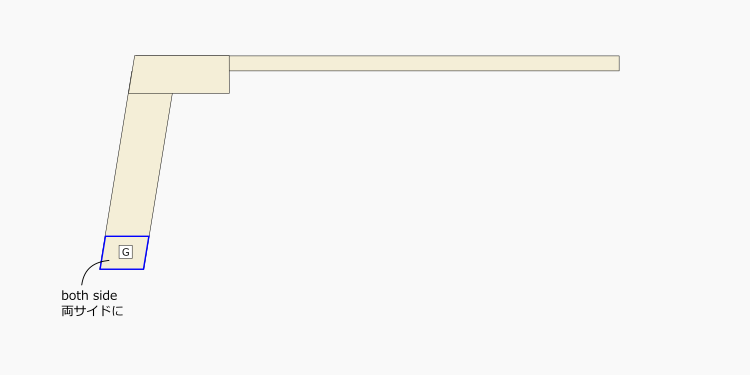

    3. Glue G(both side).
    OGG CRAFT

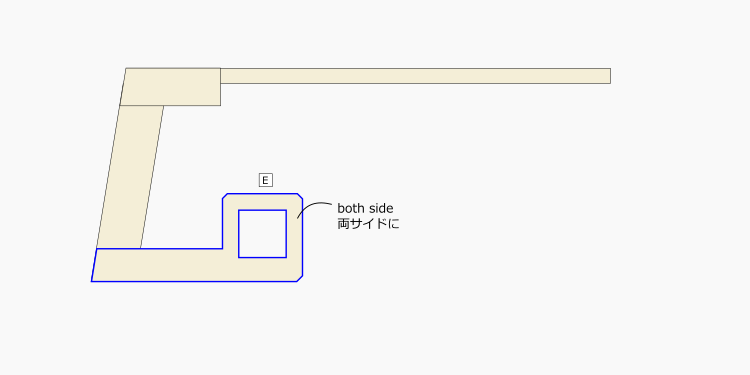

    4. Glue E(both side).
    OGG CRAFT



    5. Assemble "crank-unit"
    -1. glue K and J into H.
    -2. drill through holes.
    OGG CRAFT

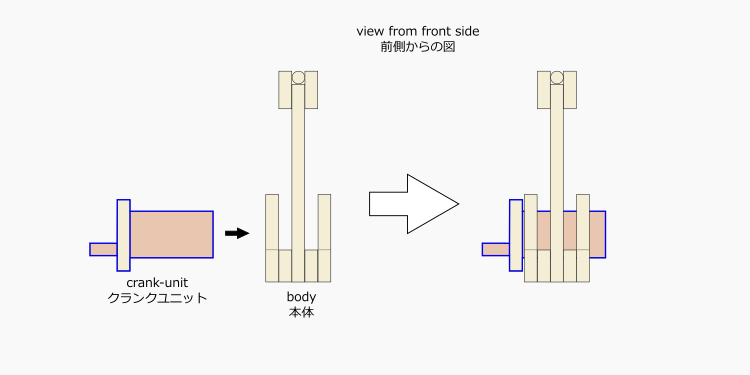

    6. Set "crank-unit" to body.
    OGG CRAFT

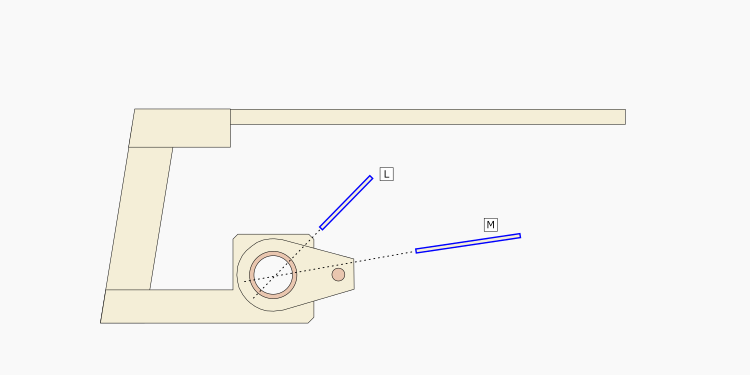

    7. Insert L and M to "crank-unit".
    OGG CRAFT



    8. Assemble "gatling-barrel" (glue each barrel).
    OGG CRAFT

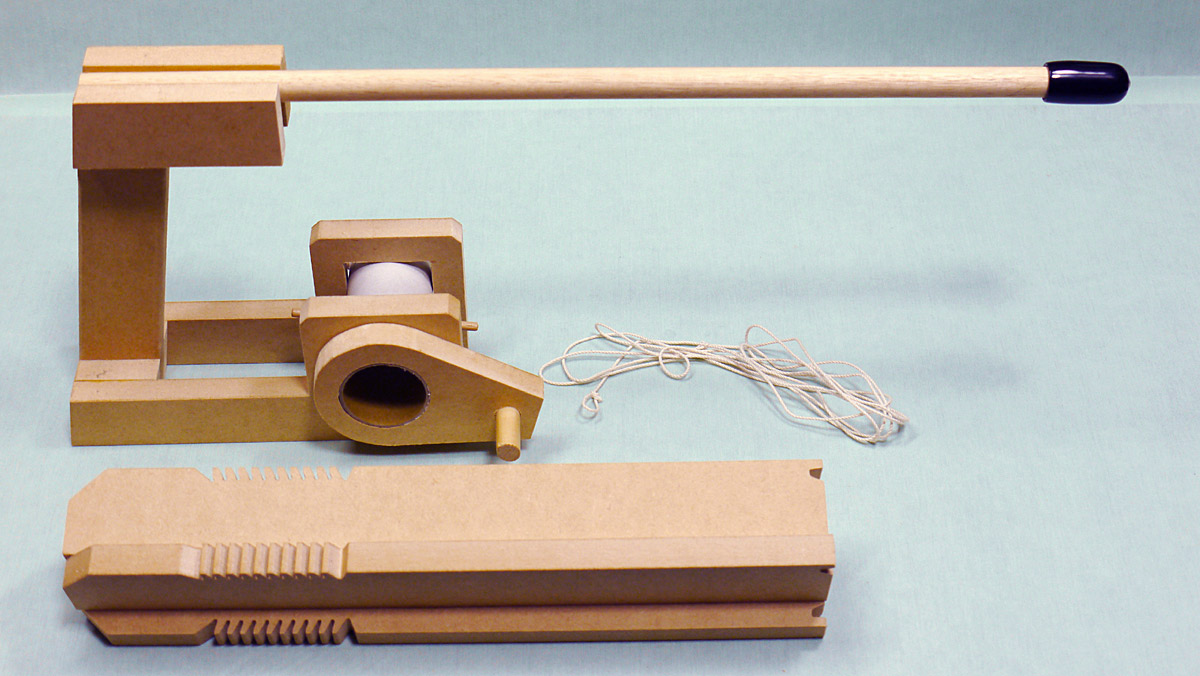

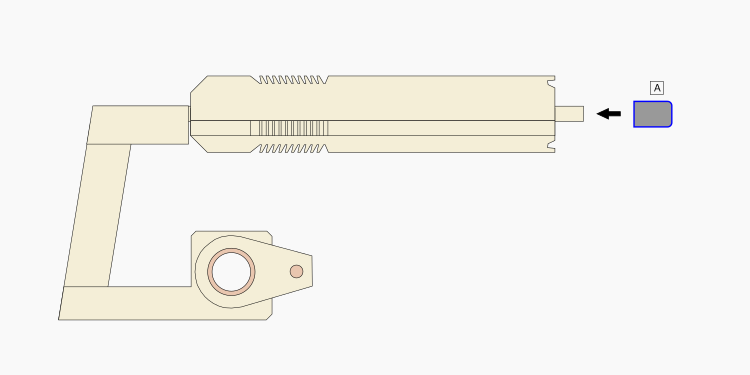

    9. Set "gatling-barrel" to F, and put on A.
    OGG CRAFT

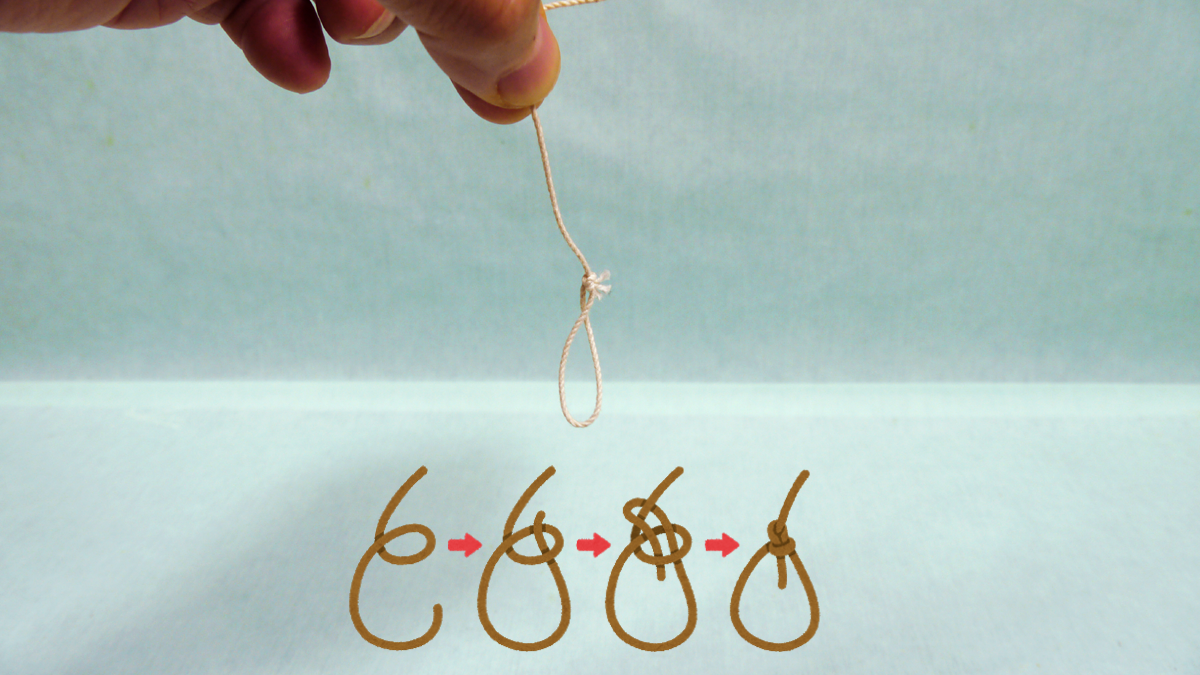

    10. Make bowline knot at both ends of string.
    OGG CRAFT


    - Loading -

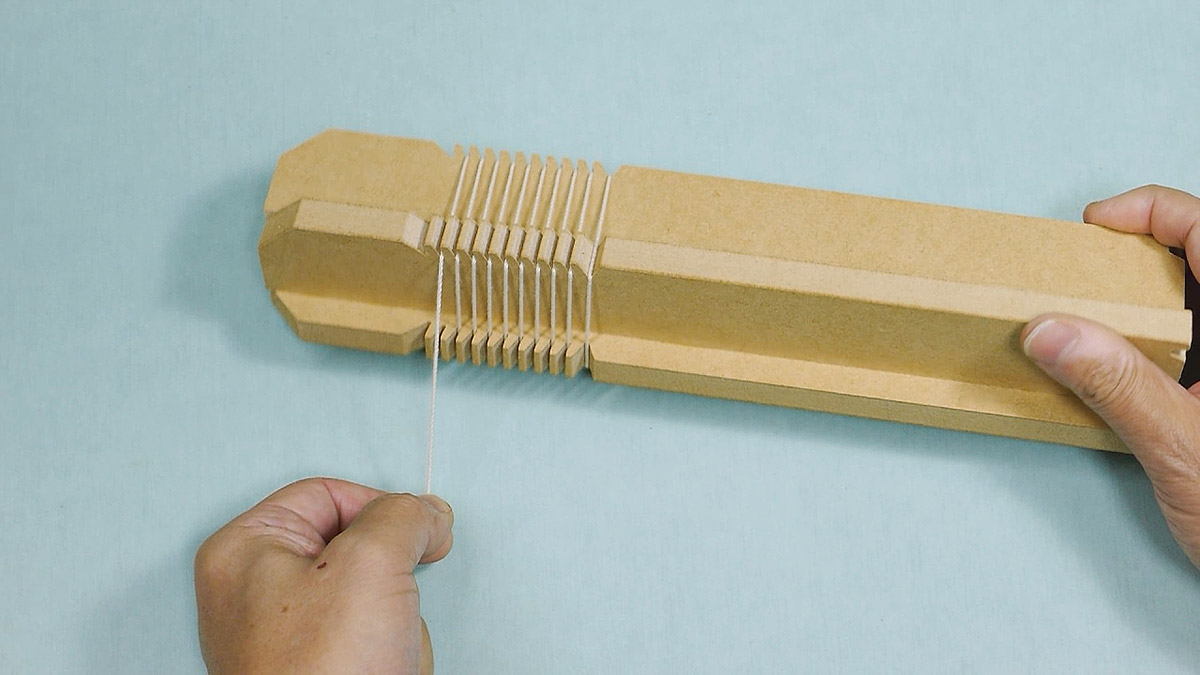

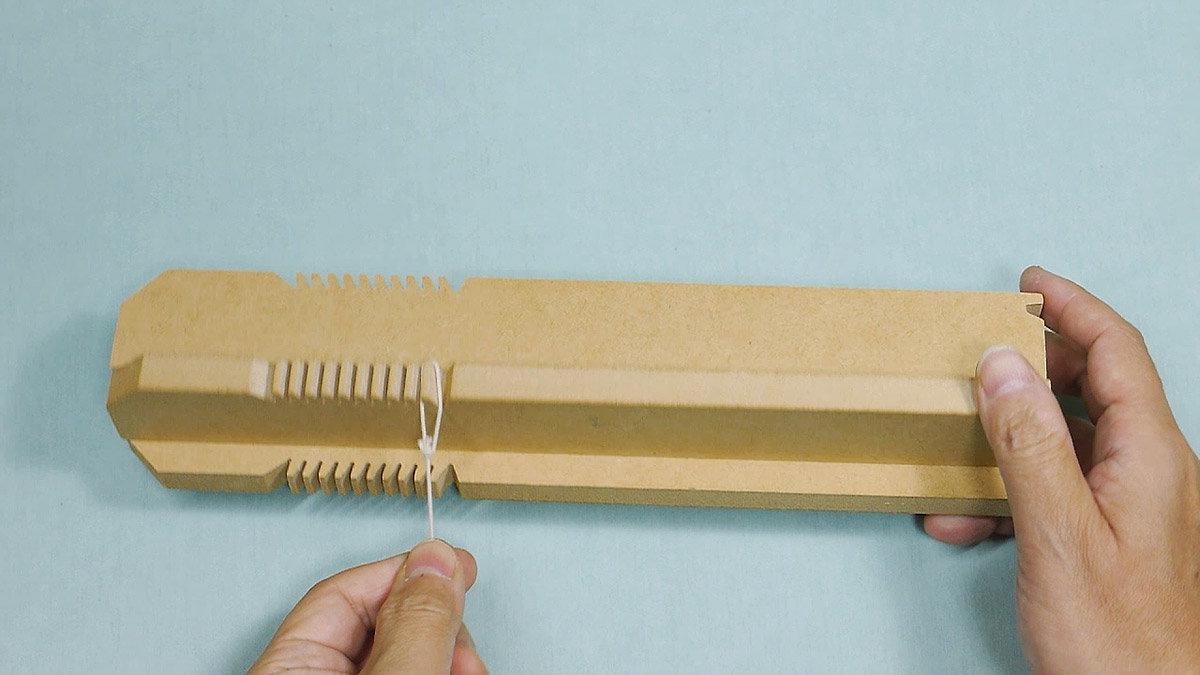

    1. Hang string-ring to foremost hook and wrap the string around barrel.
    OGG CRAFT

    OGG CRAFT

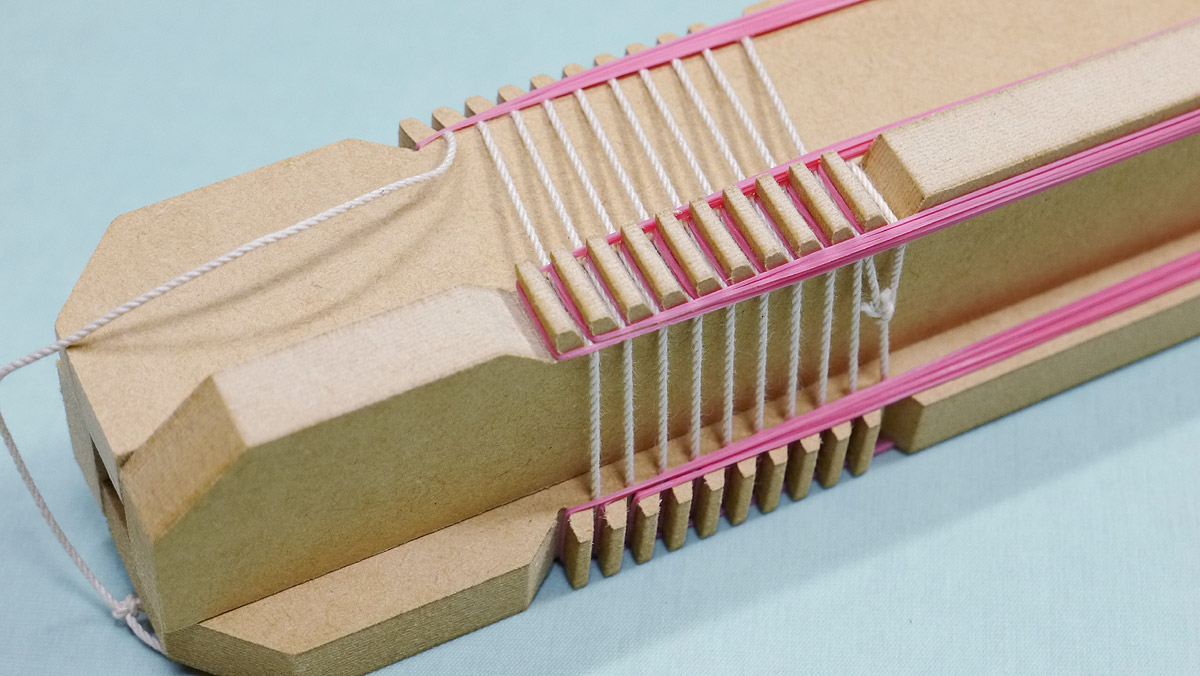

    2. Load rubber band from front hook.
    OGG CRAFT




    - shooting -
    1. Set the "gatling-barrel" to barrel hanger.
    2. Put on barrel cap.

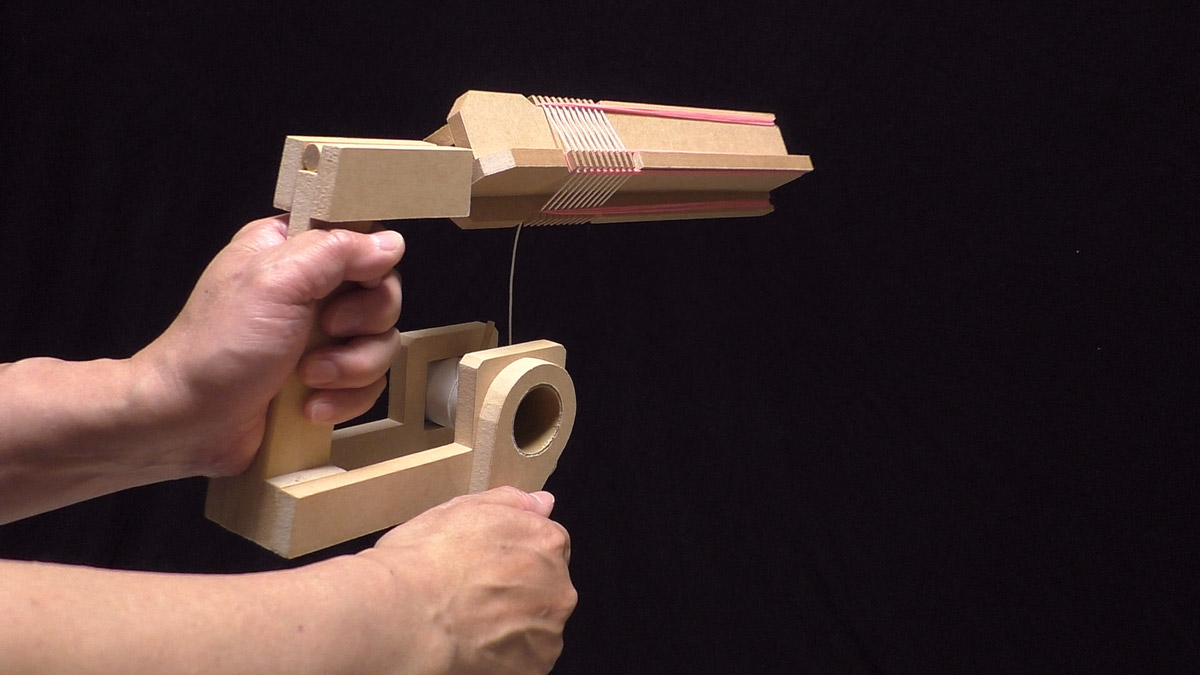

    3. Hang string-ring to bobbin hook and turn the crank handle.
    OGG CRAFT

    OGG CRAFT

    OGG CRAFT
    You can select the direction of crank insertion.

    OGG CRAFT
