"Manual-String-Release" machine gun, P505 FLAKEN.

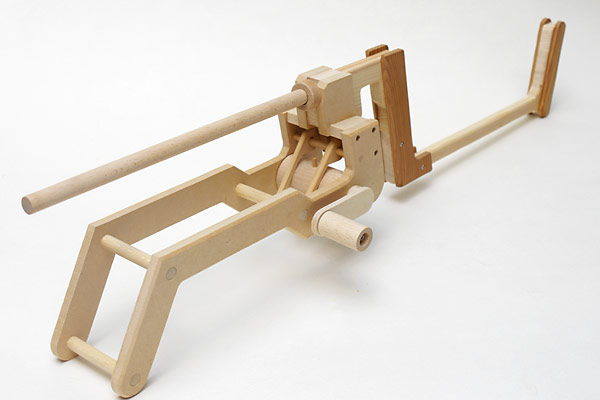

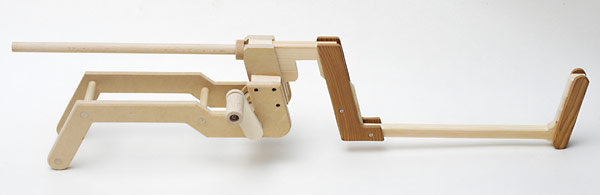

The right side view. Designed with an one-stroke from the front to the back without the barrel-hanger.

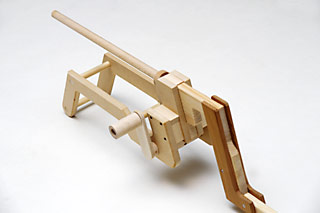

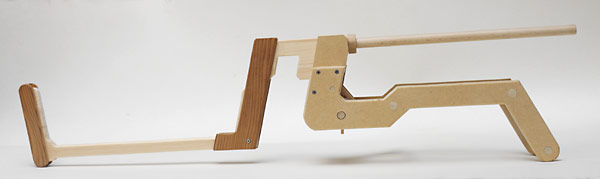

The left side view.

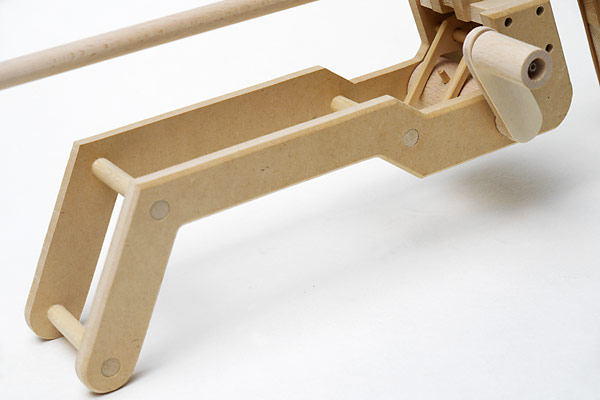

The mainframe doubles as a bipod.

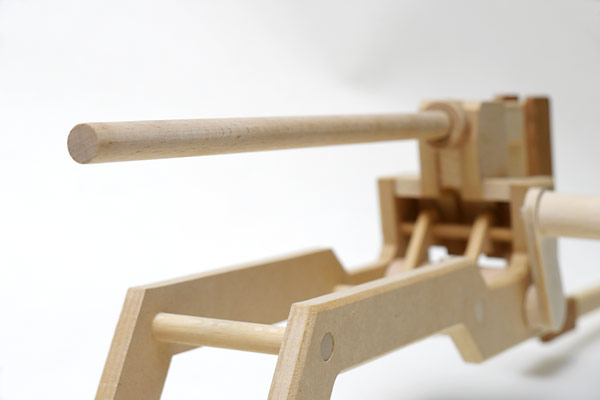

Barrel-hanger.

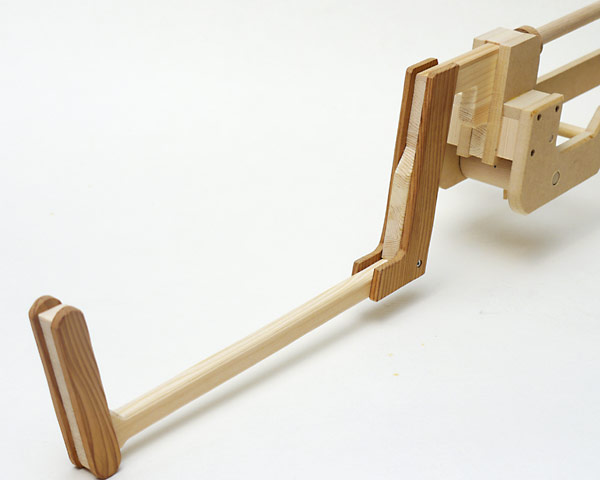

Stock.

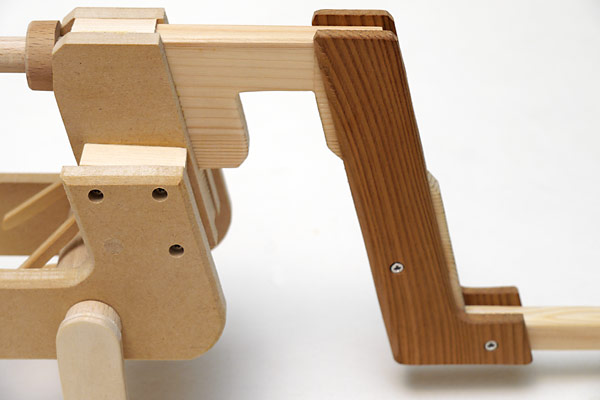

It is removable.

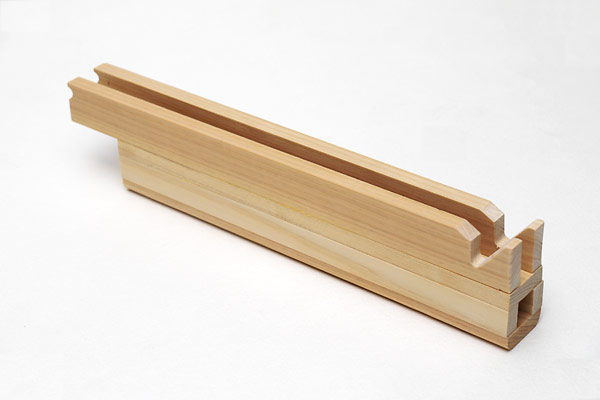

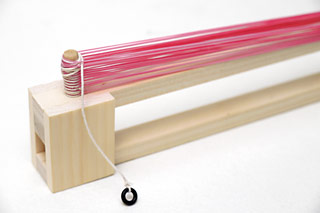

Easy-making 20 rounds single-barrels.

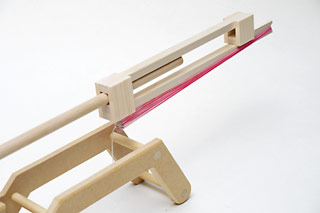

Set the barrel.

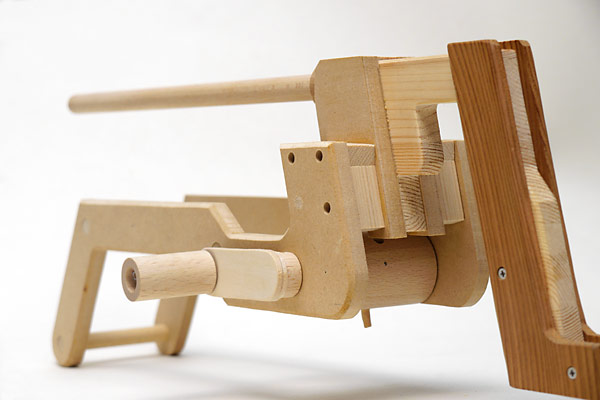

Winding cylinder.

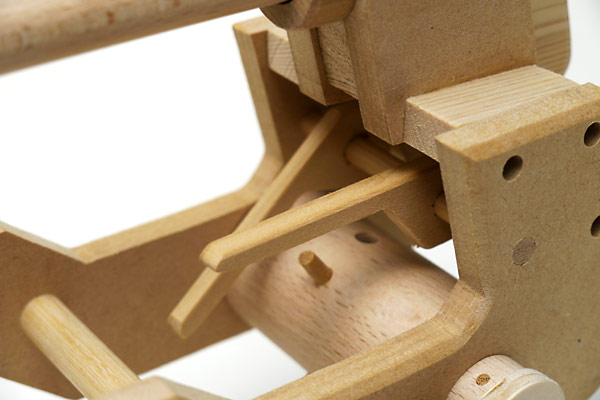

Centering-arms.

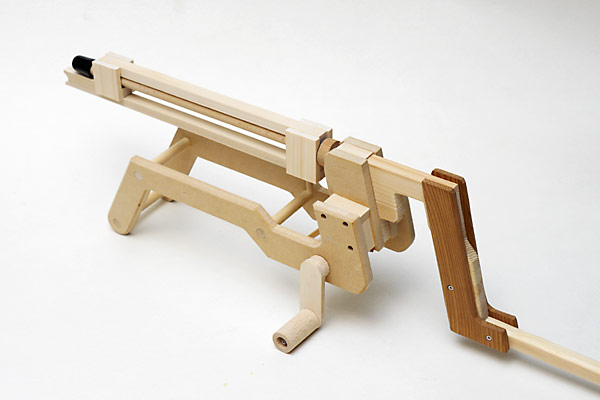

40 rounds double-barrel.

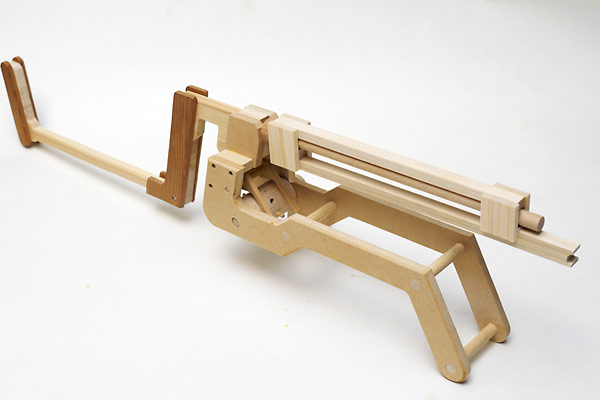

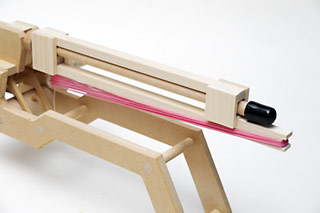

The another way. 25 rounds simplest flat-barrel.

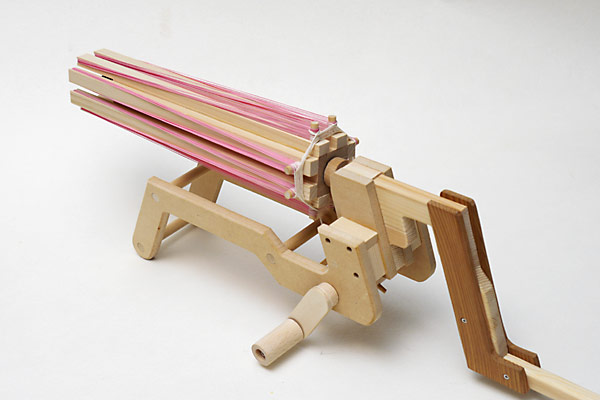

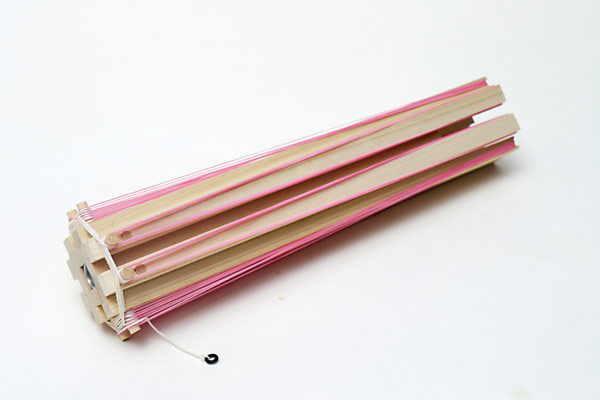

56 rounds gatling-barrel.
The looks ... balance is not good.
Single-barrel is more suitable than the gatling type.

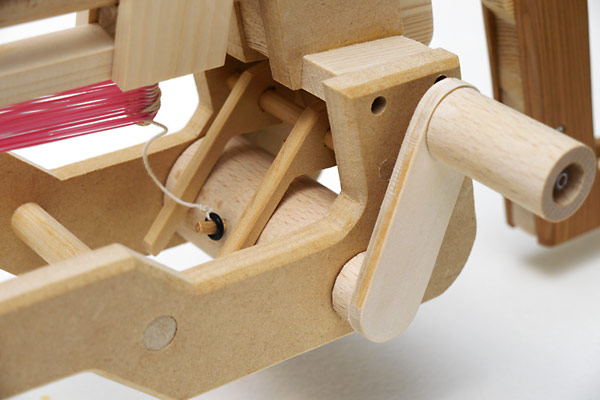

Each parts of the winder.
It is possible to change the position of the crank depending on the dominant hand.
The name FLAKEN comes from FlaK (Flugabwehrkanone).

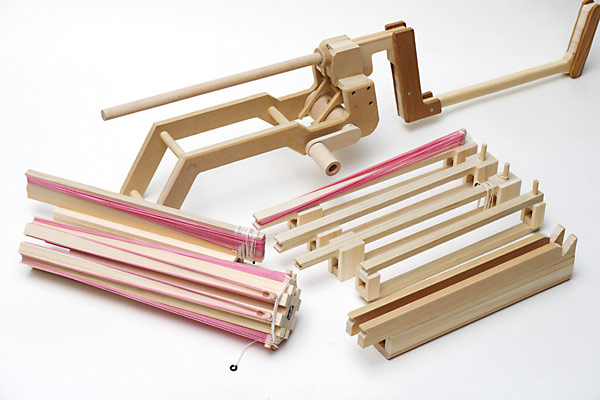

With all barrels.
Please watch Video.
YouTube
- SPECIFICATION -
<Completion Date> 2013/07
<Model Name> P505 FLAKEN
<Category> machine gun
<Length> 700 MM, 450 MM(without Stock)
<Barrel Length> 280 MM
<Capacity> 20 rounds (single-barrel), 25 rounds (flat-barrel), 40 rounds (double-barrel), 56 rounds (gatling-barrel)
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Manual-Pseudo-Full-Auto with String-Release
2013.08.04 UP
