How to make twin barreled Rubber Band Machine Gun
OGG CRAFT
Max 60 rounds, string-release Machine Gun
There is a video

This model is redesigned on basis of P502 ITO-OKACY and is easy to make.
That video tutorial has been already published on my Youtube channel in 2020.

- About this model, P502 simplified ver.2020 -
Category: Sub machine gun
Capacity: 30 or 60 rounds
Mechanism: String release, pseudo full automatic
Youtube video (uploaded in 2020)



- Note -
  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • Try to build (or play) it at your own risk. I do not assume any responsibility for any monetary damage or your bodily injury.
  • Do not load over 60 rubber bands.
  • Do not aim other person.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.

    • Do you understand and accept above? Then let's try to make it.
    - Materials -
  • wooden timber --- 24(H) x 12(T) x 1000(L) mm
  • round bar --- diameter 4mm x over700(L) mm

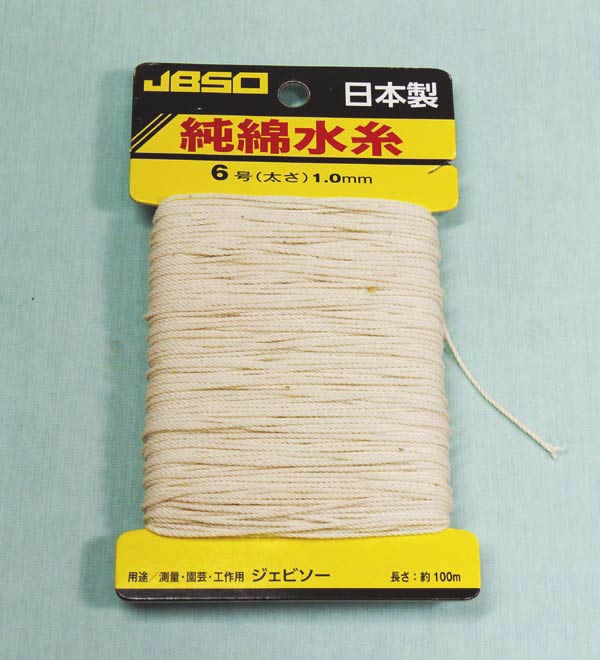

  • cotton string (ex. for cooking) --- diameter 1mm x 1200(L) mm
    • - Tools -
  • scroll saw or hand saw
  • drill press
  • scissors
  • sandpaper #240
  • wood glue
    • - Cutting -

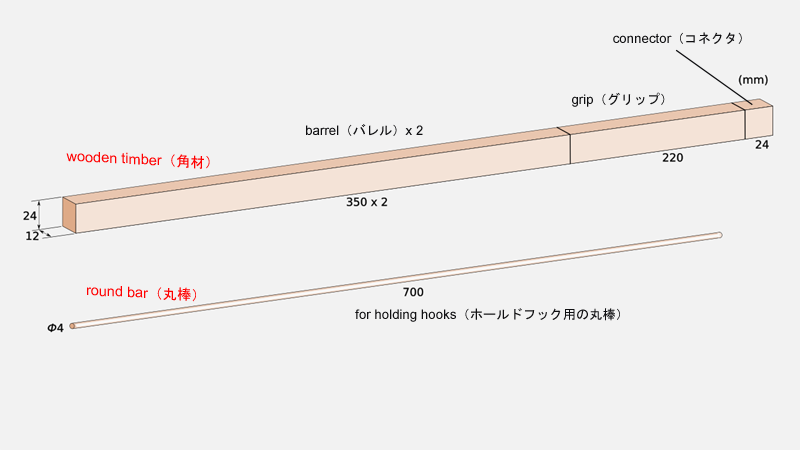

    Wooden timber cutting
    Cut timber. (barrel x2, grip, connector)
    p502_v2020

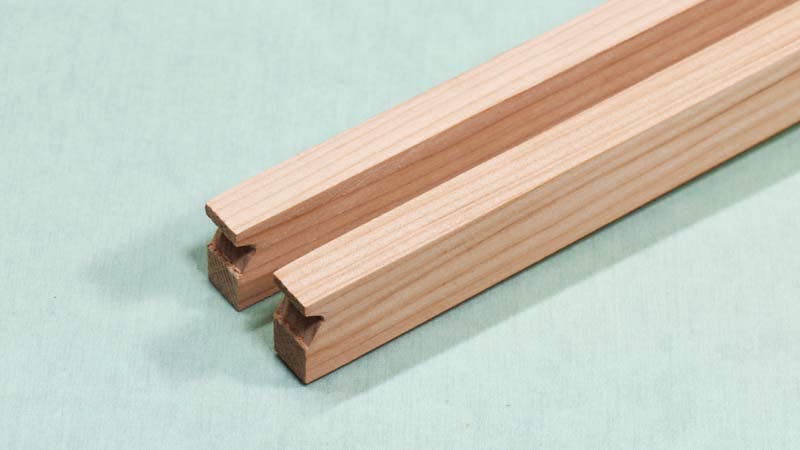

    Muzzle notch cutting
    Make muzzle notches in front of each barrel.
    p502_v2020



    Round bar cutting
    Length 20mm x 30 pins. (holding hooks)
    p502_v2020

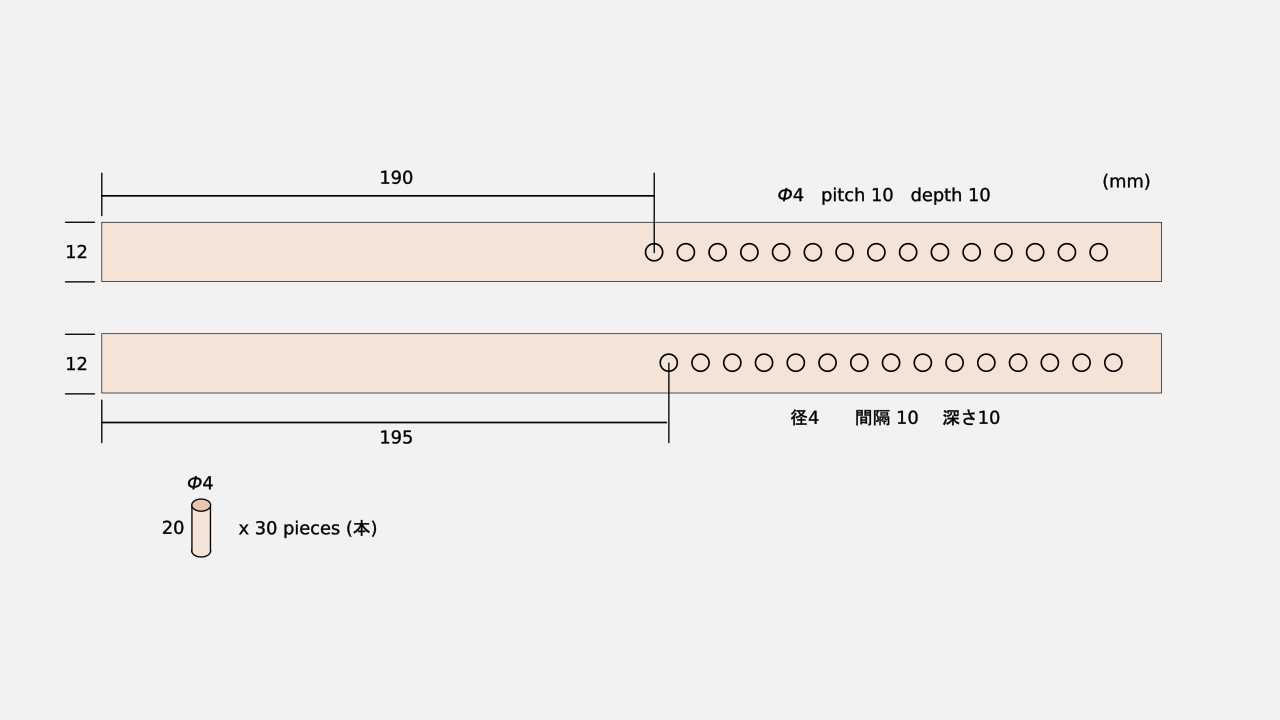

    Drilling
    Drill 15 holes in each barrel. (diameter 4mm, depth 10mm, pitch 10mm)
    p502_v2020




    - Assembling -
    1 Insert and glue pins as holding hooks.
    OGG CRAFT




    2Glue both barrel-ends together via connector. (align the bottom and rear faces of each part)
    OGG CRAFT

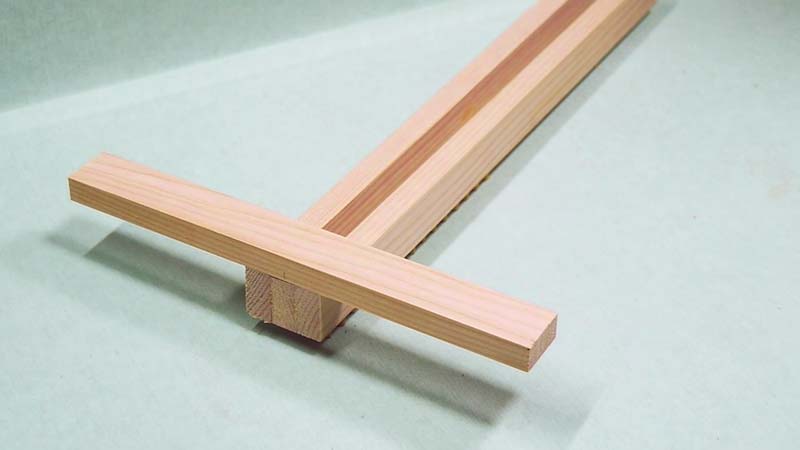

    3Glue grip on the bottom of barrels.
    OGG CRAFT

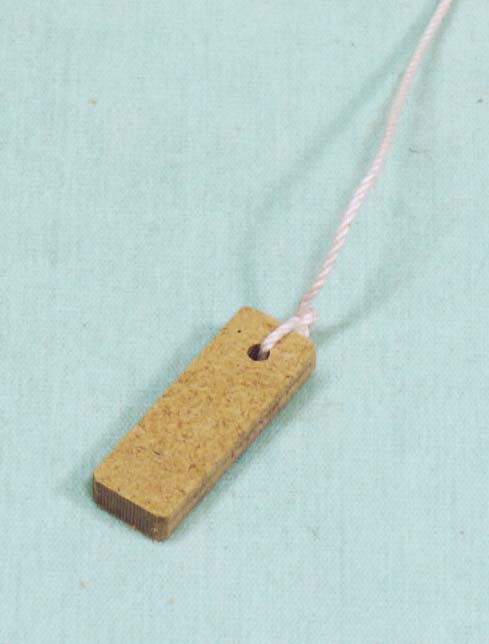

    4 Cut string into 120 cm, and tie it to a suitable small knob you made.

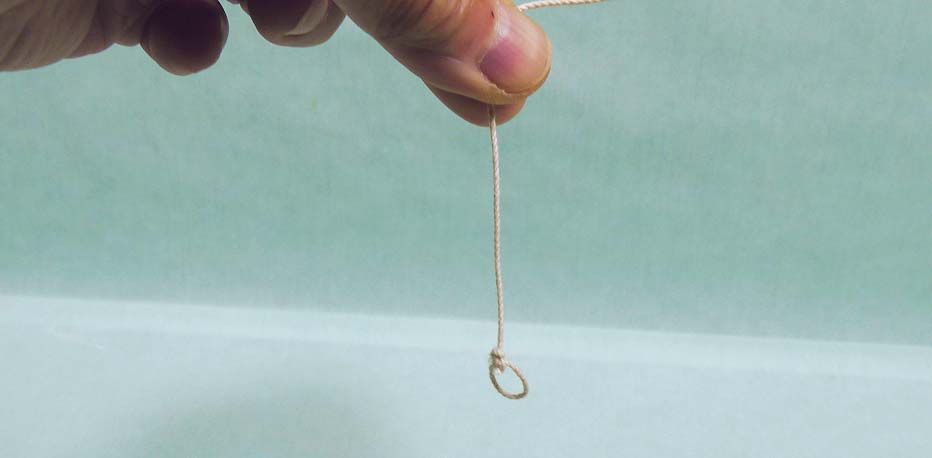

    Next the another end, make a string-ring in a bowline knot within 10 mm diameter.
    OGG CRAFT OGG CRAFT

    OGG CRAFTOGG CRAFT


    - Loading -

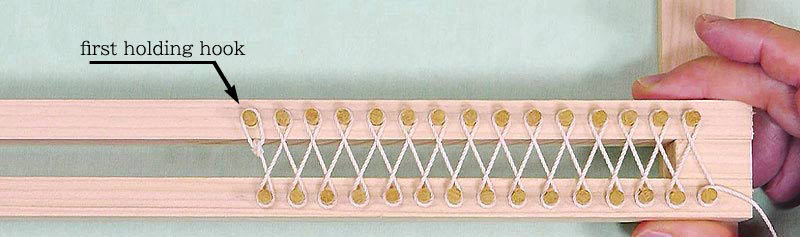

    1 Hang string-ring to the first holding hook, and tie the string writing a figure "8" as imaged below.
    OGG CRAFT

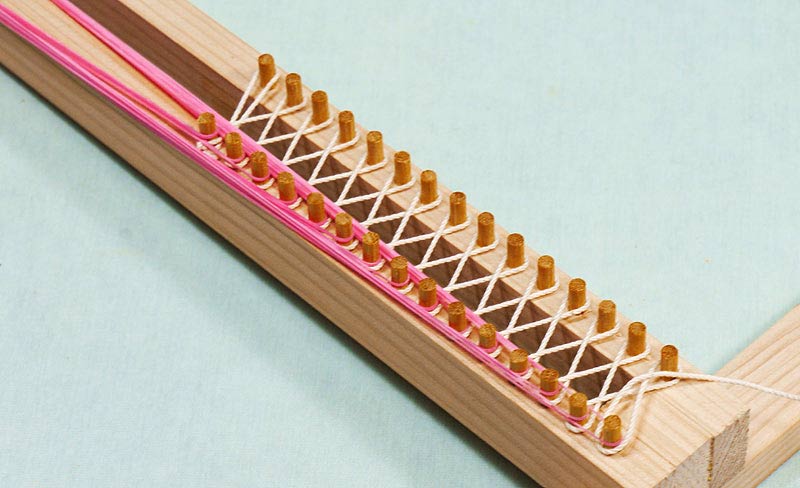

    2 Load rubber band from the first hook. (15 x 2 barrels)
    OGG CRAFT




    3 If you repeat step 1 and 2 above, you can load 60 rubber bands.
    OGG CRAFT

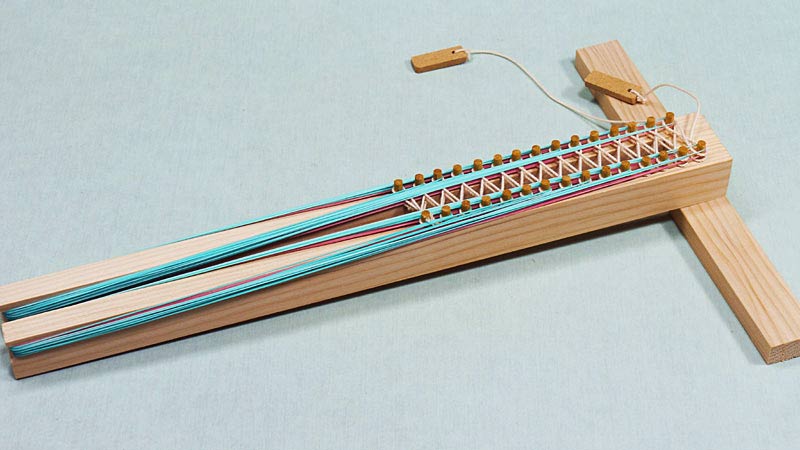

    60 rounds loading. (but, is hard work)




    - How to shoot -

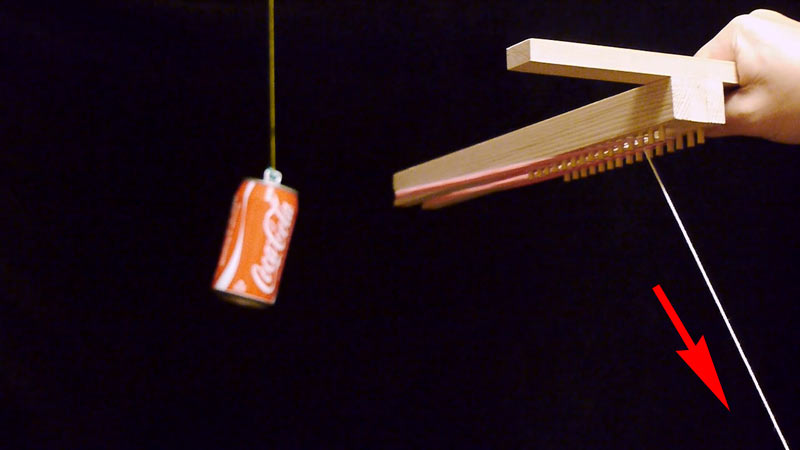

    Hold grip and pull the string down.
    OGG CRAFT
