How to make 10 rounds Rubber Band Gun (2/2)
Prev. Page
how to make 10rounds Ai-Oh

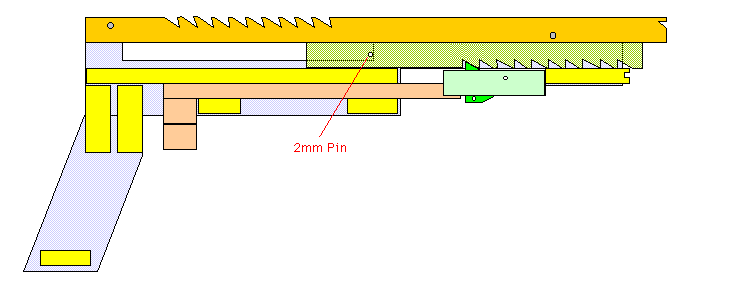

(10) Drill a hole (2-3mm diameter) to the Sliding Bolt, and insert a wood pin to the hole.
As a result, the default position of the Sliding Bolt is determined.

how to make 10rounds Ai-Oh

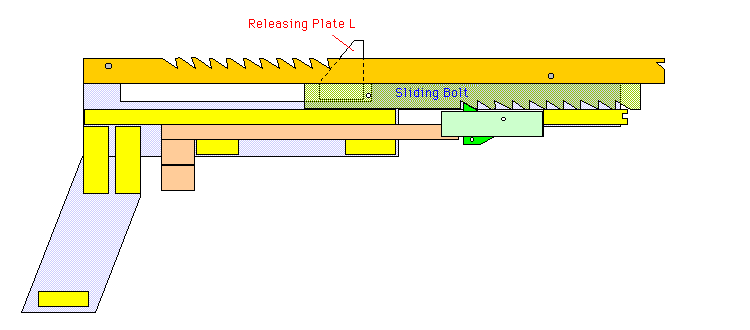

(11) Glue the Releasing Plate L to the Sliding Bolt with glue for plastics.

how to make 10rounds Ai-Oh

(12) Glue the Releasing Plate R to the Sliding Bolt.

how to make 10rounds Ai-Oh

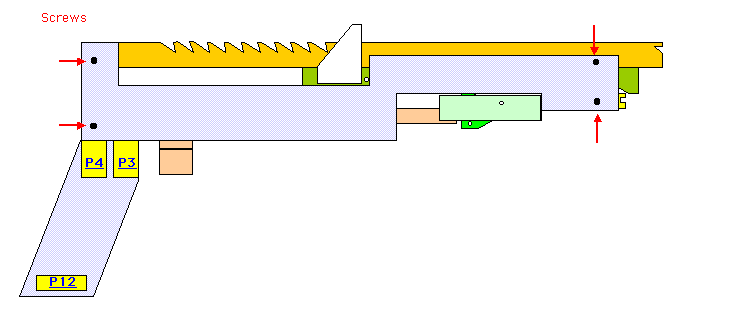

(13) Screw the Frame R to the work. (requires pre-drilling)

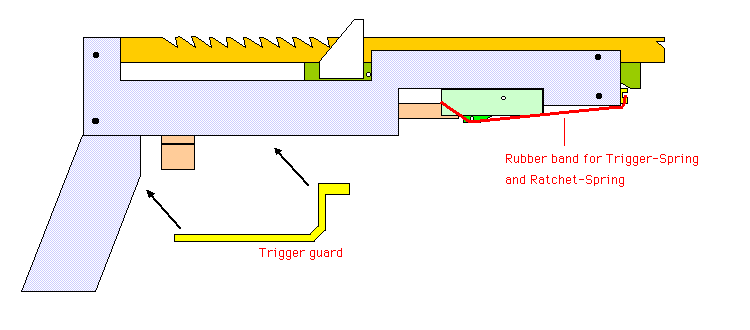

how to make 10rounds Ai-Oh

(14) Glue the Trigger Guard (option part) to the work.

Glue the Grip R to P3, P4 and P12.
Set a rubber band for a Trigger-Spring and a Ratchet-Spring. If the Sliding Bolt action is rigid, tune with a sandpaper.

Finished

- Finished work -
02

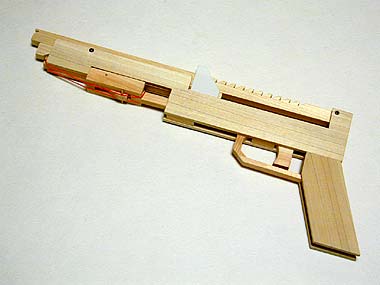

10 rounds Rubber Band Gun P201 Ai-Oh.

03

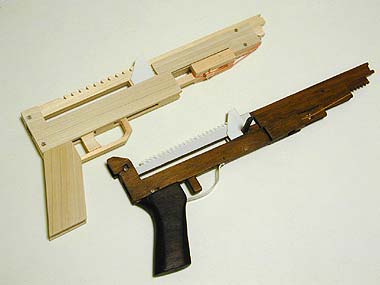

Comparing with the P201 KAI.

05

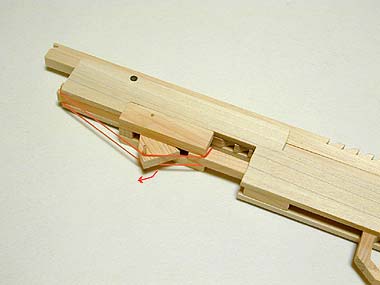

After pulling down the Ratchet, return the Sliding Bolt to the default position.

04

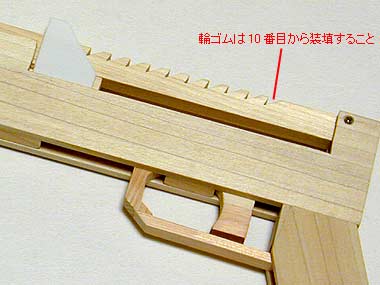

You must load the 1st rubber band at the 10th Holding-Hook.

Please watch the video.
