How To make 10 rounds Rubber Band Gun (1/2)

01

P201 Ai-Oh, Let's build 10 rounds Rubber Band Gun

There is a video
@

P201 Ai-Oh is simplized P201 KAI made in 1979. I re-designed it to offer this content.

- Note -

  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kit or finished product or the plan that you have built on the basis of this content.
  • Do not over-load rubber bands (max 10).
  • Do not aim other person.

  • Do you understand and accept above? Then let's enjoy building.


    PDF drawing

    PDF drawing is here


    - Cutting -

    cutting size

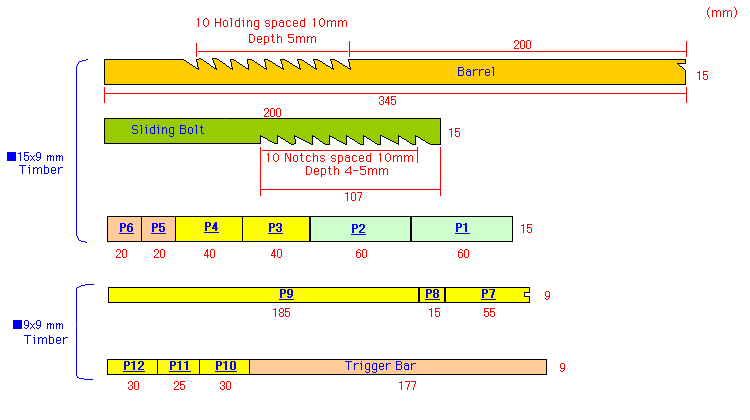

    Cut wood timbers with a saw.

    cutting size

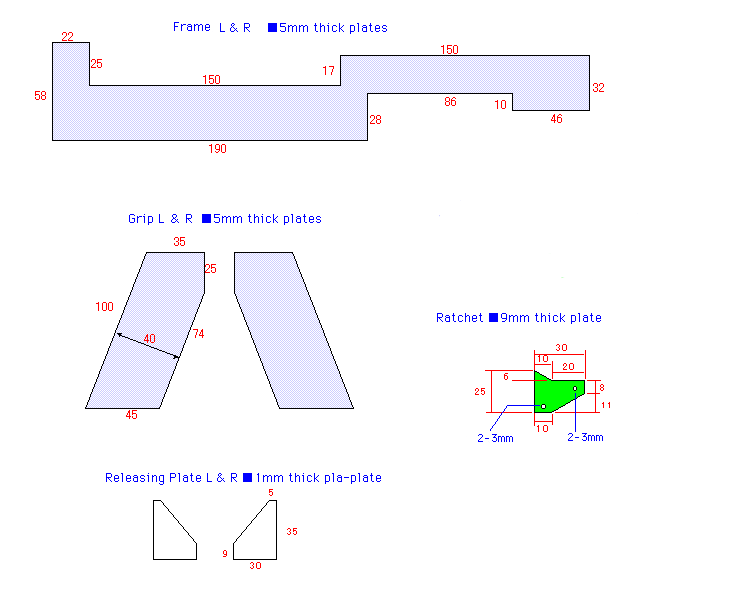

    Cut wood plates and plastic plates with a saw.


    - Assembling -

    how to make 10rounds Ai-Oh

    (1) Drill two holes (2-3mm diameter) to P1 and P2.

    how to make 10rounds Ai-Oh

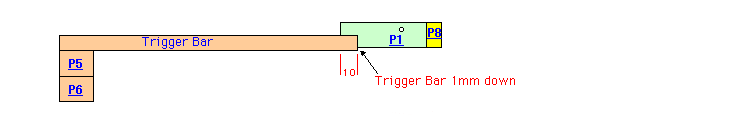

    (2) Glue P1, P8, P5, P6 and the Trigger-Bar. (this unit is called a Trigger-Set)

    how to make 10rounds Ai-Oh

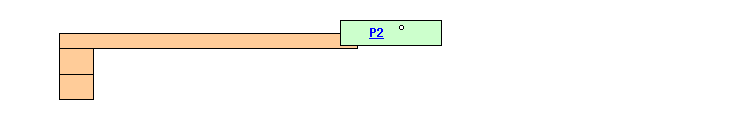

    (3) Glue P2 to the Trigger-Set.

    how to make 10rounds Ai-Oh

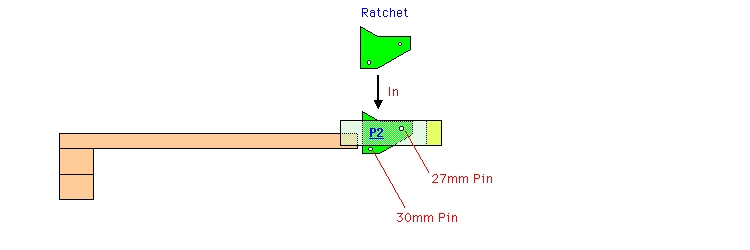

    (4) Insert the Ratchet into the Ratchet-box, and insert two wood pins (2-3mm diameter) to the each holes.

    how to make 10rounds Ai-Oh

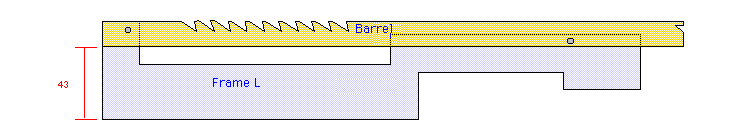

    (5) Screw the Frame L to the Barrel. (requires pre-drilling)

    @
    how to make 10rounds Ai-Oh

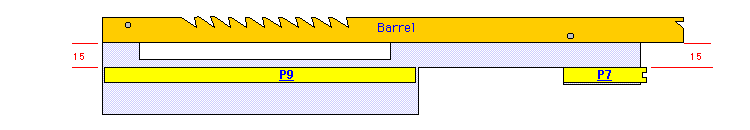

    (6) Glue P7 and P9 to the Frame L. A spacing of 15 mm is required.

    how to make 10rounds Ai-Oh

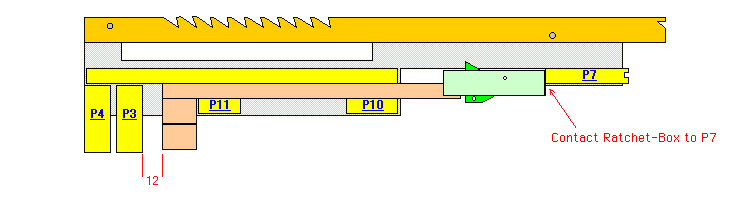

    (7) Put the Trigger-Set on the Frame L, and contact it with P7.
    Glue P10 and P11 to the Frame L. (Do not move the Trigger-Set.)

    Glue P3 to the Frame L. Keep a spacing of just 12 mm to the Trigger.
    Glue P4 to the Frame L.
    Once, remove the Trigger-Set from the work.

    how to make 10rounds Ai-Oh

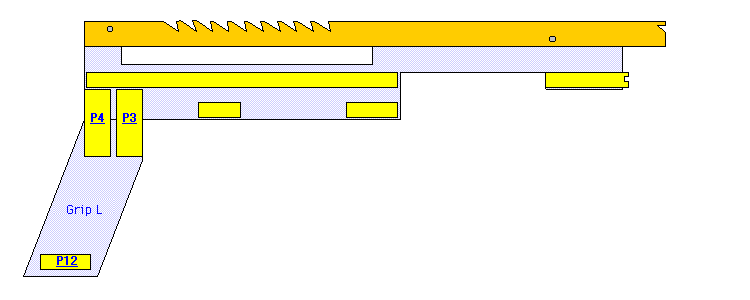

    (8) Glue Grip L to P3 and P4.
    Glue P12 to the Grip L.

    how to make 10rounds Ai-Oh

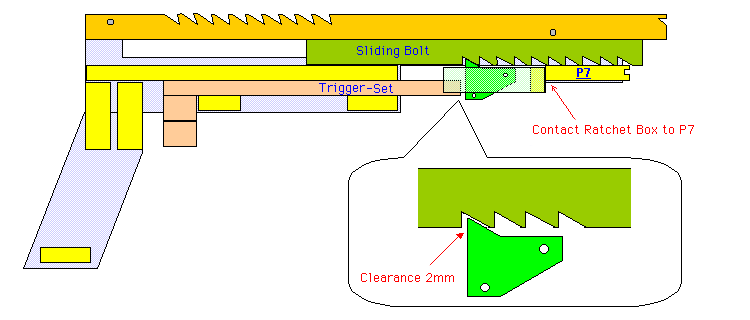

    (9) Put the Trigger-Set and the Sliding Bolt on the Frame L.
    Contact the Trigger-Set with P7.
    Adjust the position of the Ratchet and the Sliding Bolt.
    2 mm clearance is required between the Ratchet and the first notch of Sliding Bolt.

    continued Next Page
    @
