P404 MECCANI

OGG CRAFT
There is a video
P404

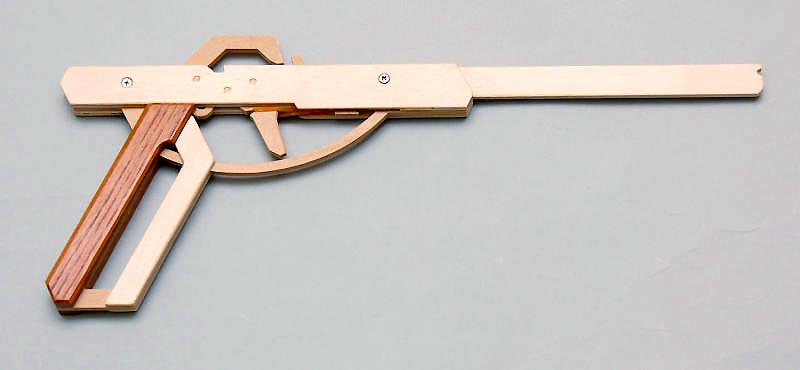

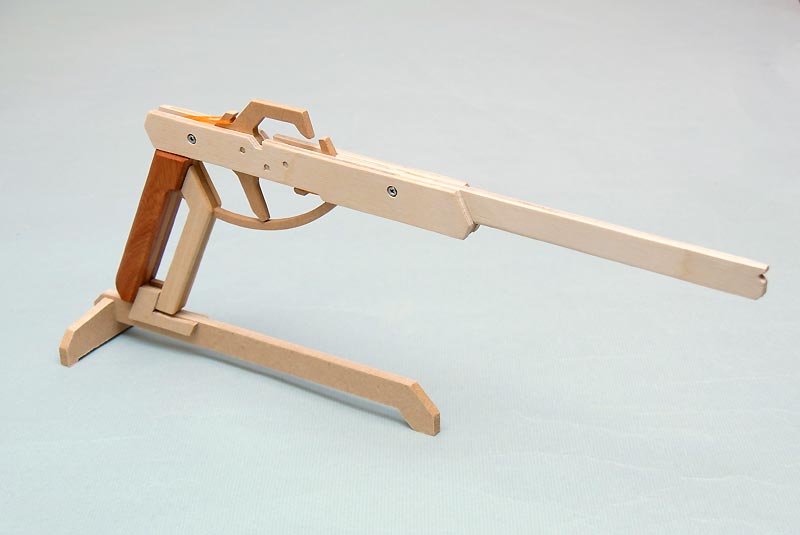

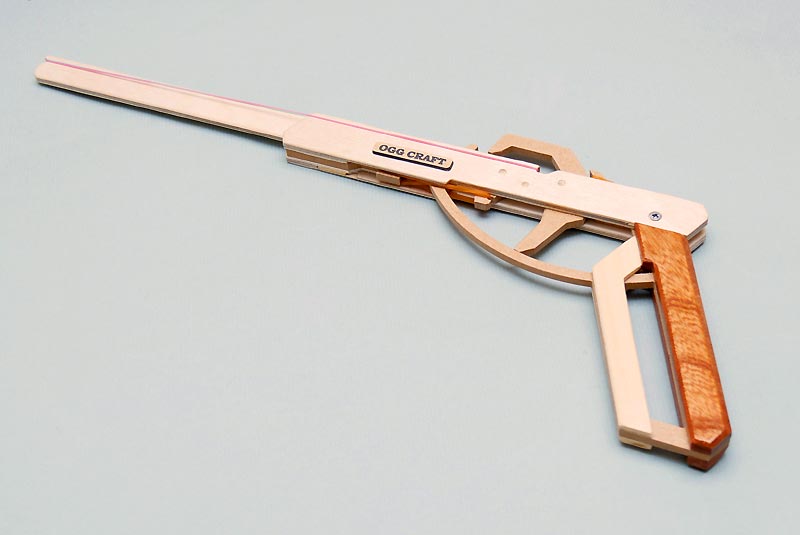

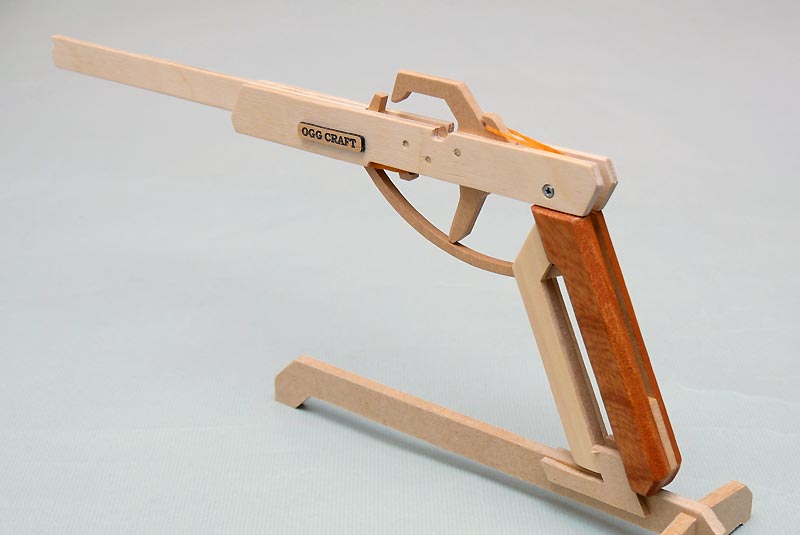

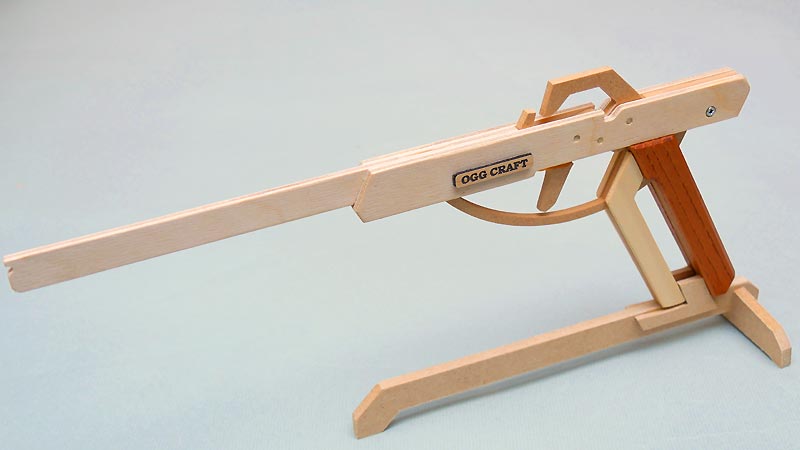

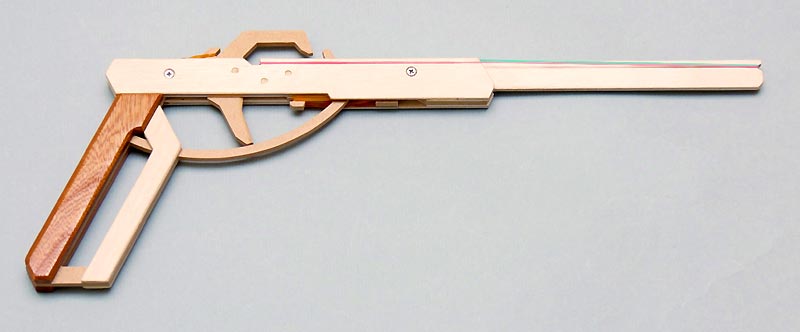

I made a semi-automatic rubber band gun named P404 MECCANI in Feb, 2022.

P404

P404

P404

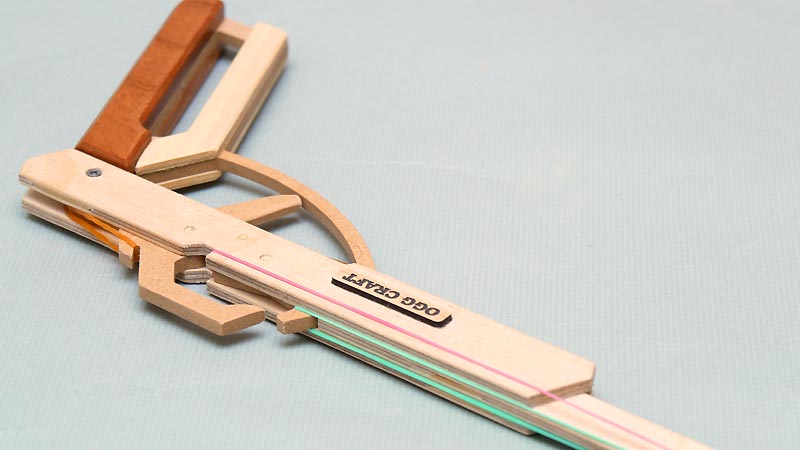

1st rubber band (green) is loaded at the holding hook, and 2nd band (red) is loaded on the notch of the frame panels.

P404

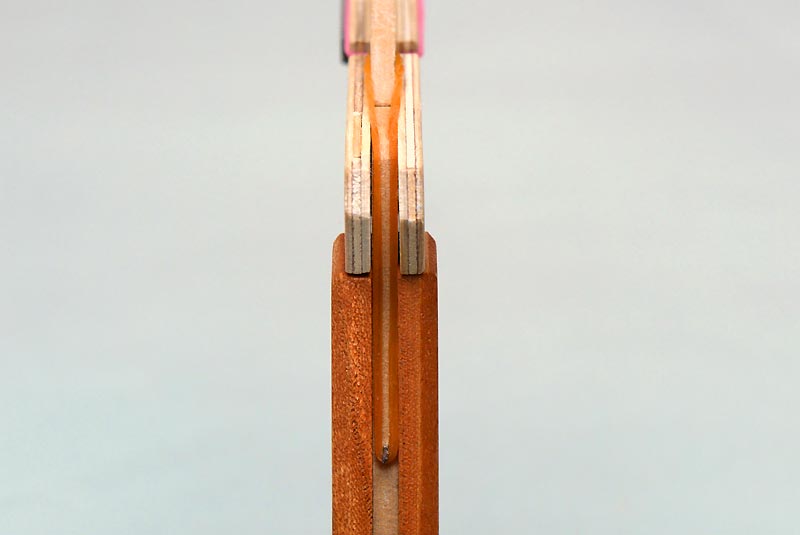

Rubber band as a trigger spring behind a grip.

P404

When the trigger is pulled, the trigger-arm pushes the holding hook down and the 1st rubber band is released. At the same time, the end of holding hook pushes the 2nd band up and releases it from the notch and the trigger-arm immediately stops it.
Next when the trigger is pulled, the 2nd band is released.

P404

This P404 MECCANI has 2 mechanical parts in spite of only 2 loading capacity.
So I thought how to save these amount.

Result of consideration.

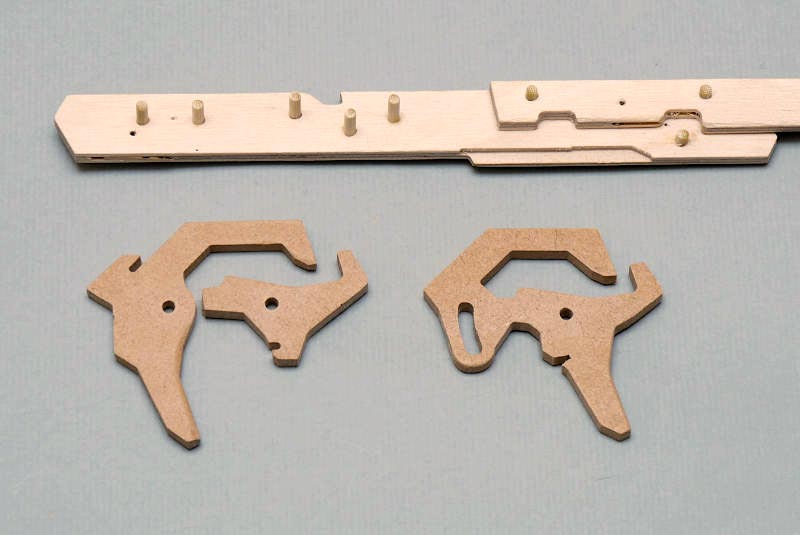

Left: 2 mechanical parts version (trigger and holding hook)
Right: 1 mechanical part version (trigger only)

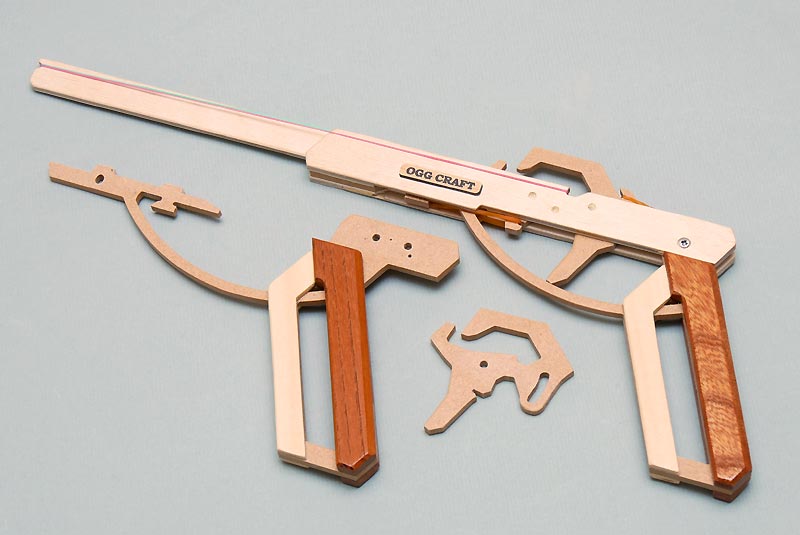

The same body can be used as it is by modularized design.

P404

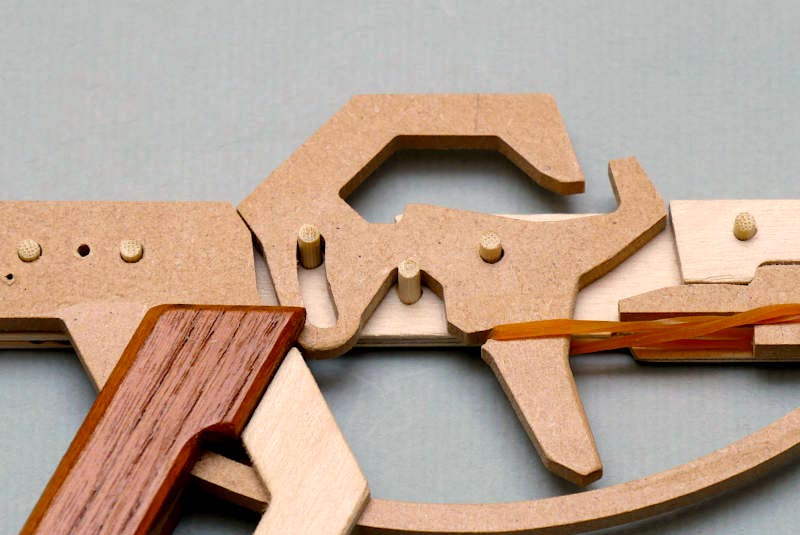

The action of 1 mechanical part version.

P404

The slot on that is for dodging of the trigger shaft for the 2 parts version.

P404

Dedicated grip unit is necessary for each version.

P404P404

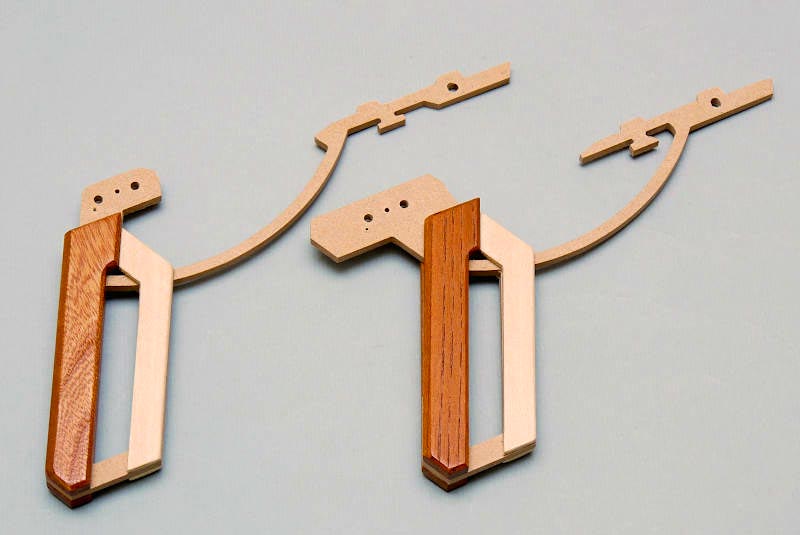

2 types of grip units.
Upper: for 2 mechanical parts version
Lower: for 1 mechanical part version

P404

The name "MECCANI",
"MECCA"= MECHANISM and "NI" means TWO (DOUBLE) in Japanese.

P404


Please watch the video.


- SPECIFICATION -

<Completion Date> 2022/02
<Model Name> P404 MECCANI
<Category> Hand Gun
<Length> 320 MM
<Barrel Length> 230 MM
<Capacity> 2 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi-automatic
