How to make P223 PREZZA-lite
OGG CRAFT

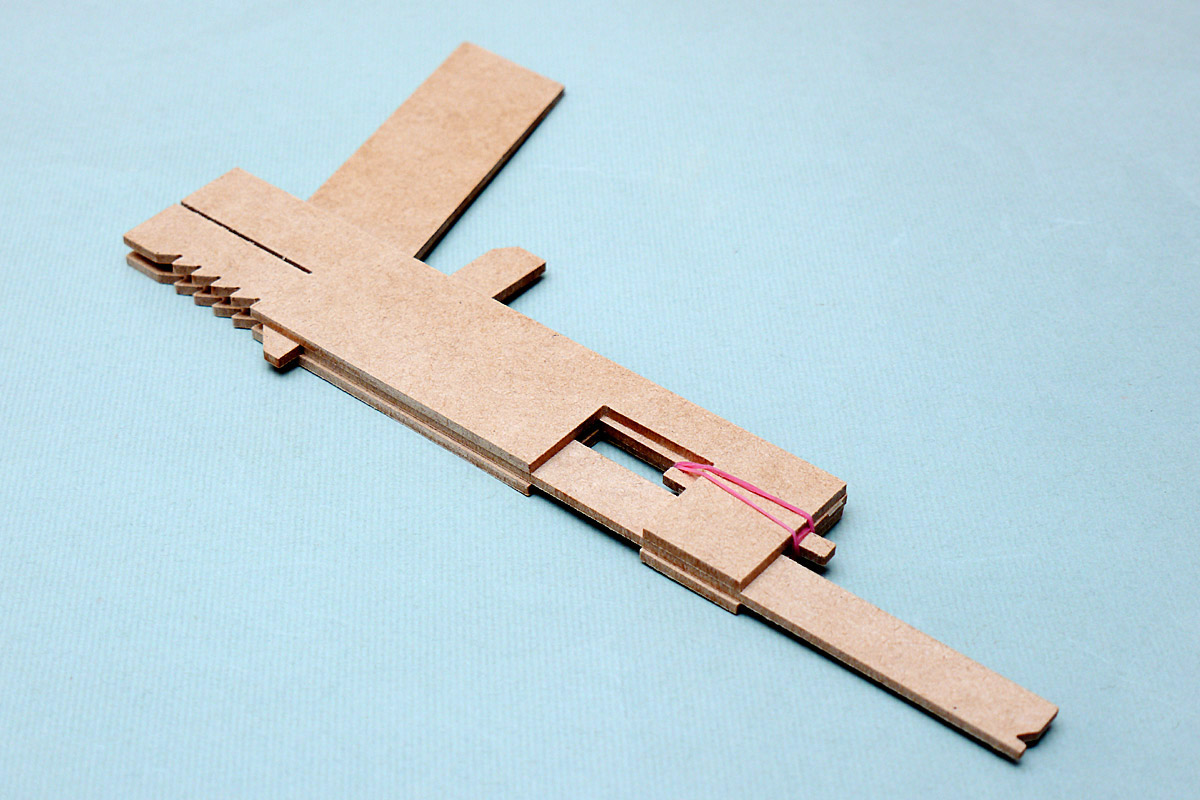

Simplified "Shark-Fin Release" Rubber Band Gun

Simplified "Shark-Fin Release" Semi-Automatic Rubber Band Gun. It incorporates new concepts, “EASY-INSERT” and “SANDWICH-BY-RUBBER,” as seen in the P223 PREZZA.


"EASY-INSERT"----- A design that allows installation of moving parts without disassembly.
"SANDWICH-BY-RUBBER"----An anti-slip system for the releaser using rubber band tension.

- About P223 PREZZA-lite -
Category: Handgun
Capacity: 5 rounds
Mechanism: Ramp release


Youtube video
- Templates -

Download the PDF Plan Here


- Note -
  • Due to variations in individual skill levels, I make no guarantees regarding the results of your work. Please build at your own skill level.
  • I assume no responsibility for any financial loss or personal injury. Build (and use) at your own risk.
  • Copyright © oggcraft.jp. All rights reserved.
    These contents are for personal, non-commercial use only.
    You are prohibited from selling any kits, finished products, or plans based on these contents.
  • Do not overload the rubber bands (maximum 5 bands).
  • Do not aim at others.

    • Please read and accept the above terms before proceeding. Now, enjoy woodworking!
    - Materials -
  • MDF (2.5-3 mm thick)
  • Thin plastic plate (1-2 mm thick)
    • - Tools -
  • Scroll saw
  • #240 sandpaper
  • Wood glue
  • Removable spray adhesive or double-sided tape
    • - Assembling -
    OGG CRAFT

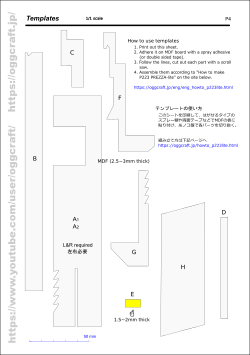

    Print out the templates.
    Adhere them to the MDF board using spray adhesive or double-sided tape.
    Cut out each part with a scroll saw.
    1 Temporarily place G on A1
    OGG CRAFT

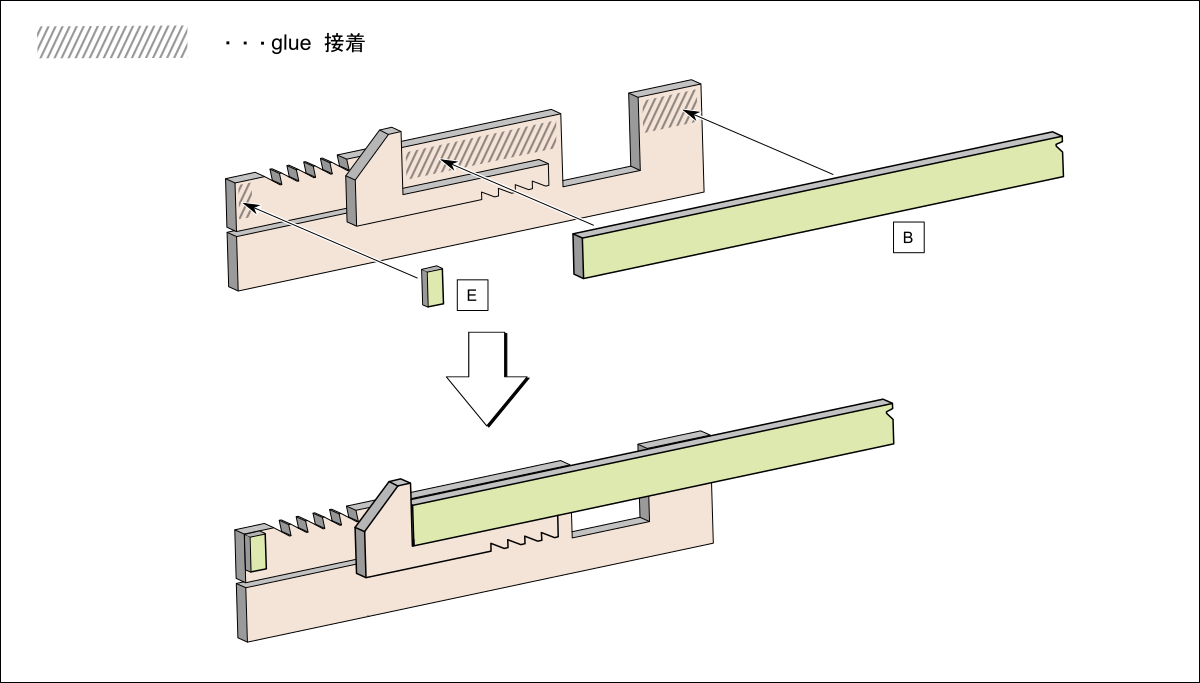

    2 Glue B and E onto A1 while keeping the position of G
    OGG CRAFT




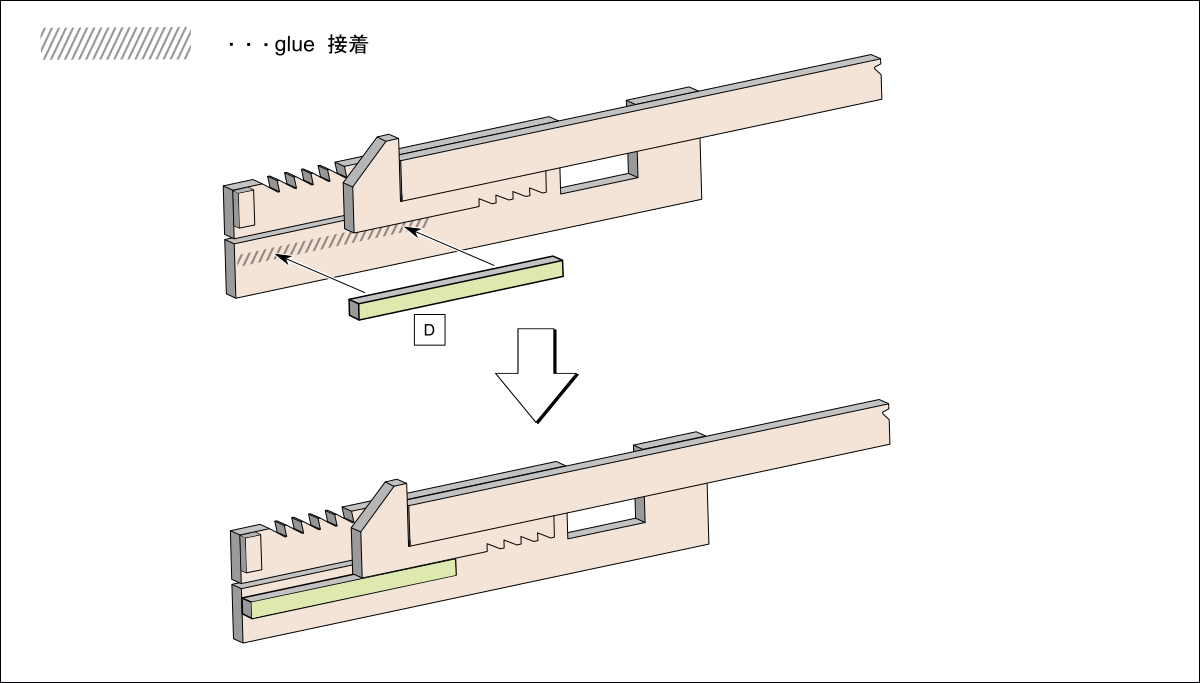

    3 Glue D onto A1
    OGG CRAFT

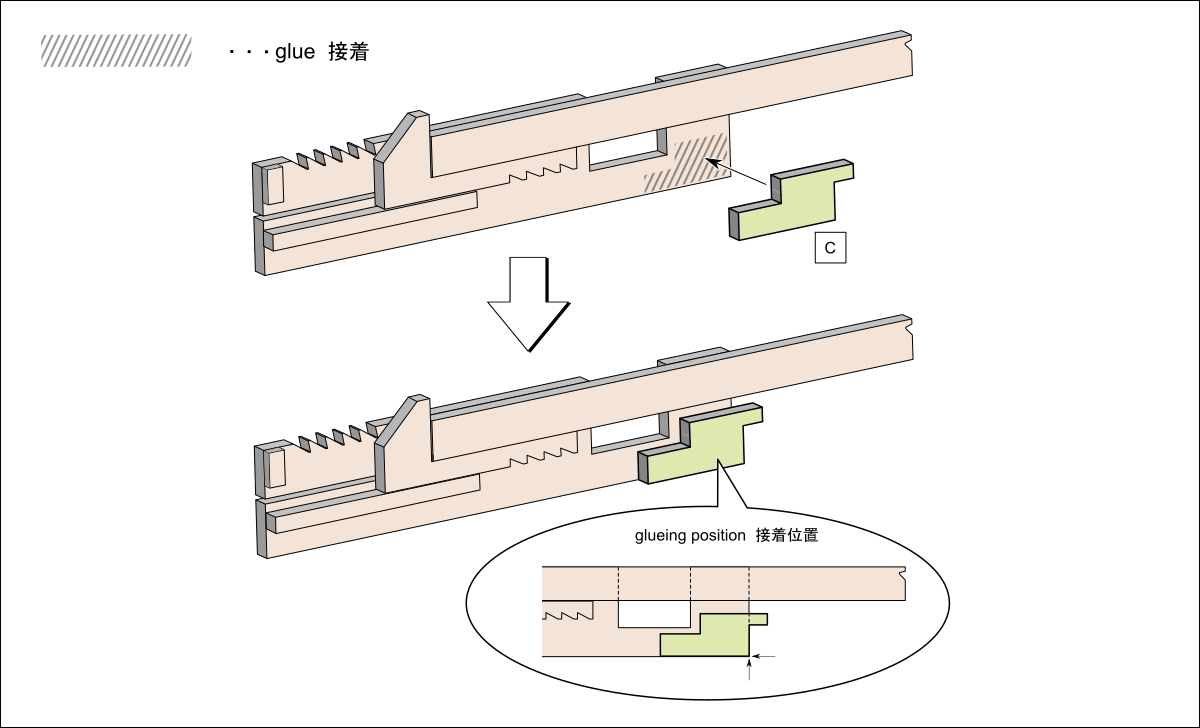

    4 Glue C onto A1
    OGG CRAFT




    5 Temporarily place F on A1
    OGG CRAFT

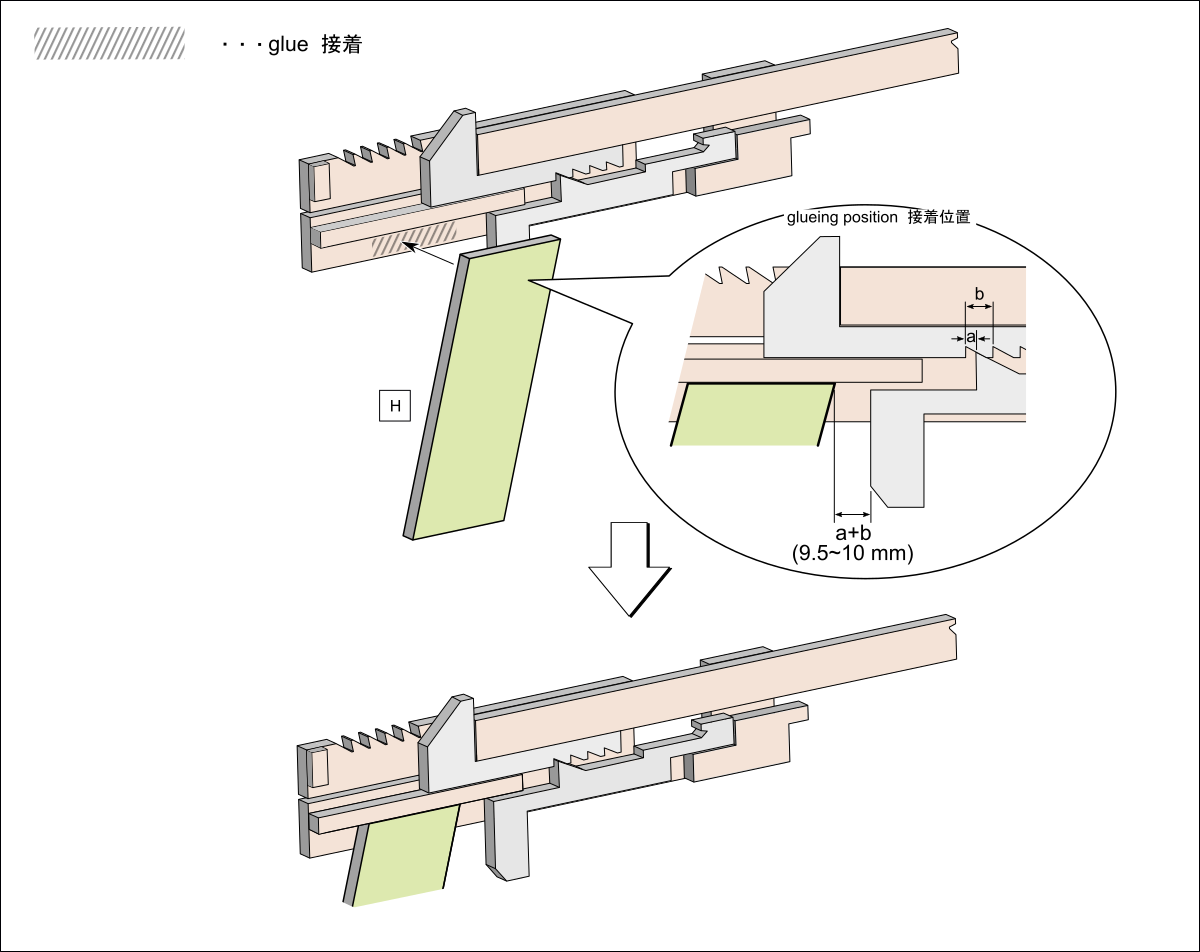

    6 Glue H onto A1
    OGG CRAFT




    7 Remove G and F
    OGG CRAFT




    8 Glue A2 onto the workpiece
    OGG CRAFT

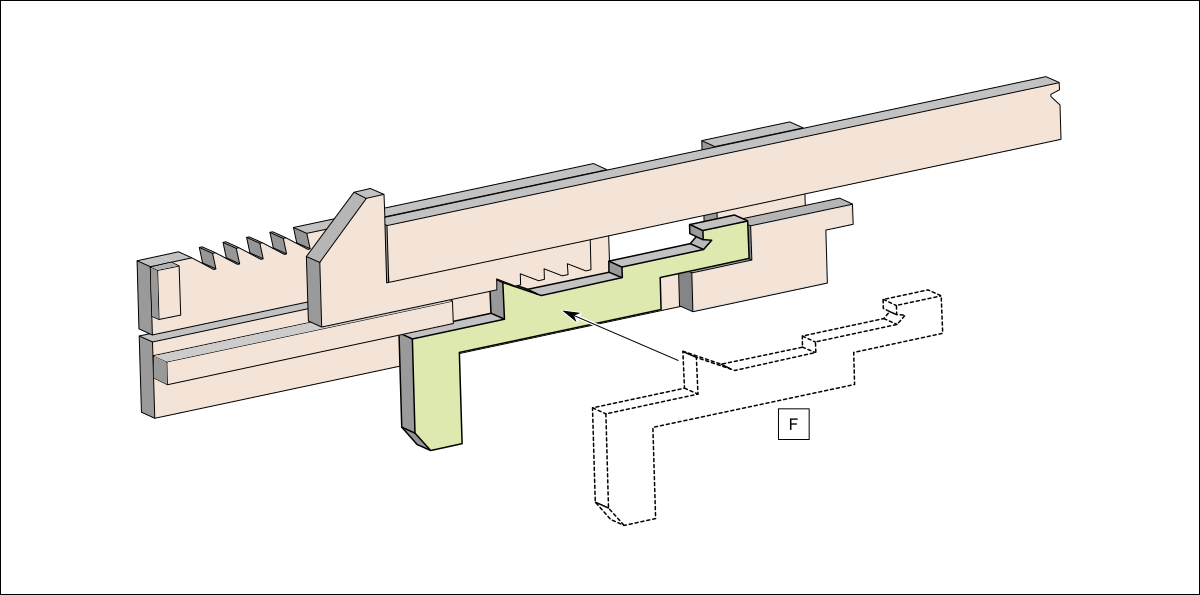

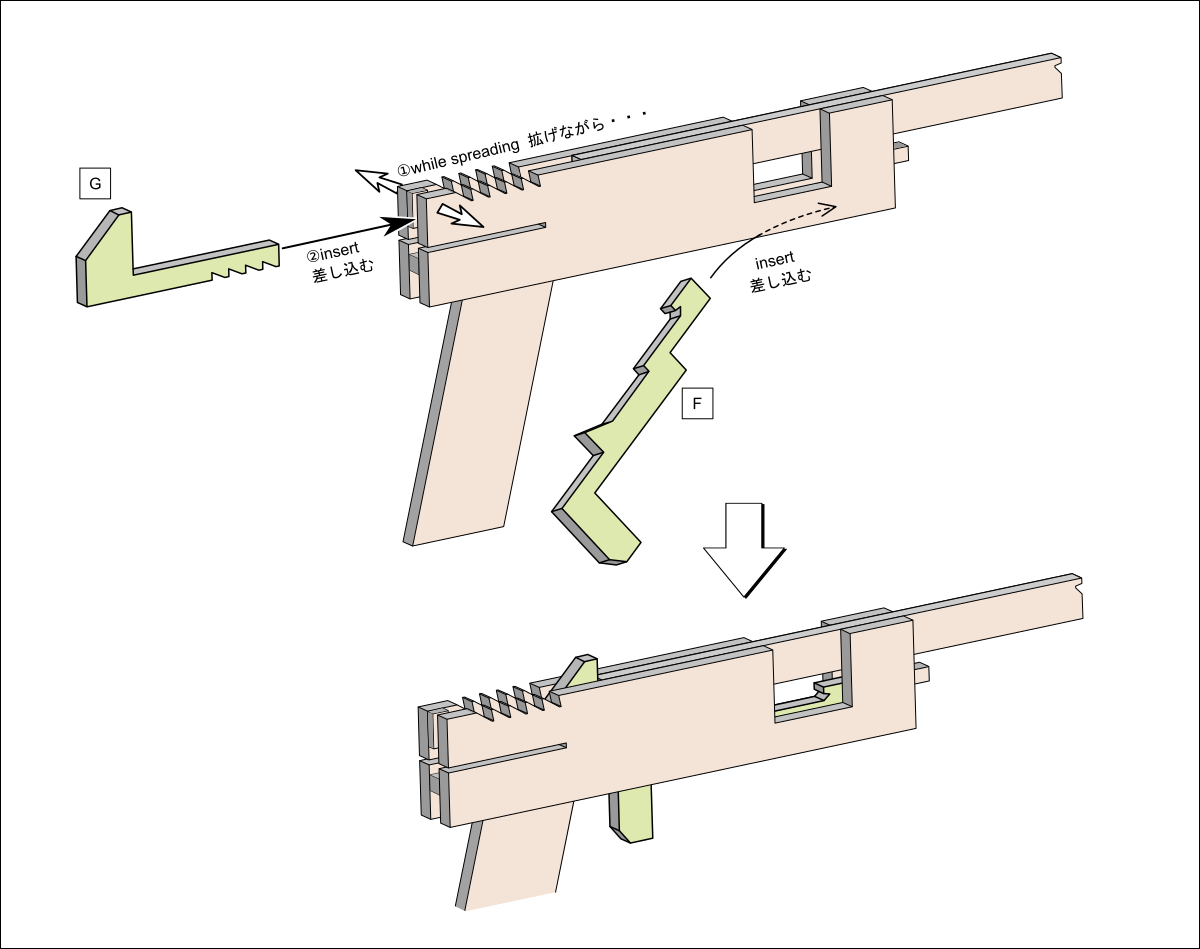

    9 Insert G while spreading the frame panels, then insert F from below
    OGG CRAFT

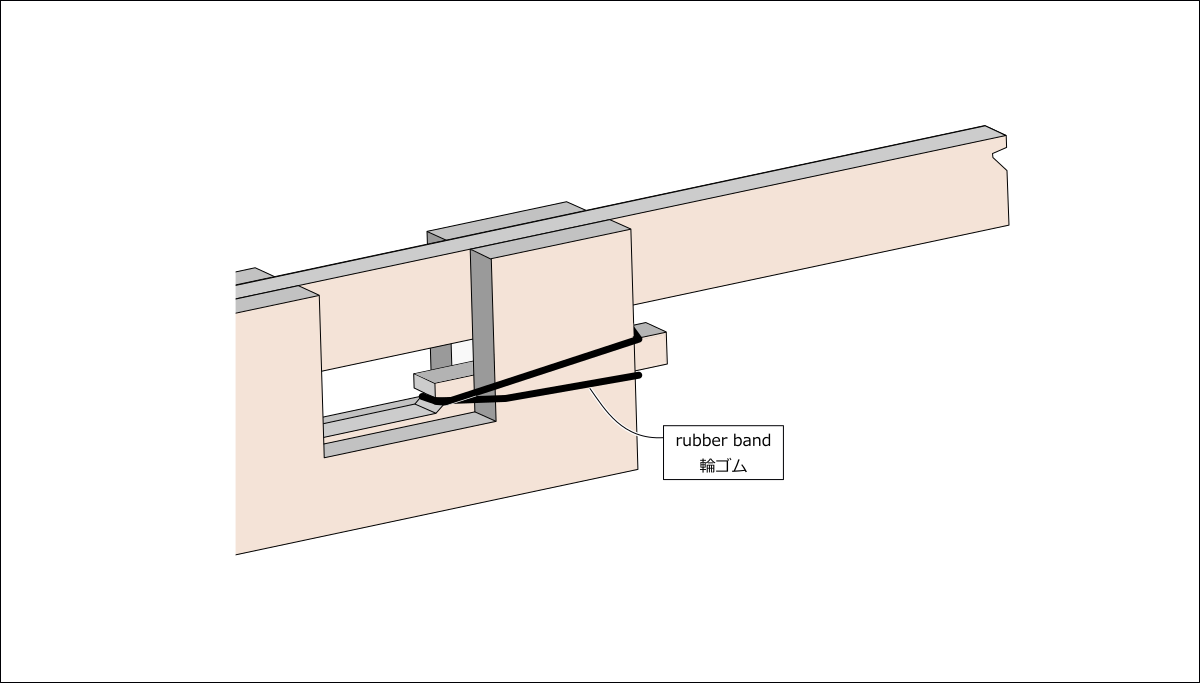

    10 Wrap a rubber band around the top of the trigger as the trigger spring
    OGG CRAFT


    - Loading and shooting -

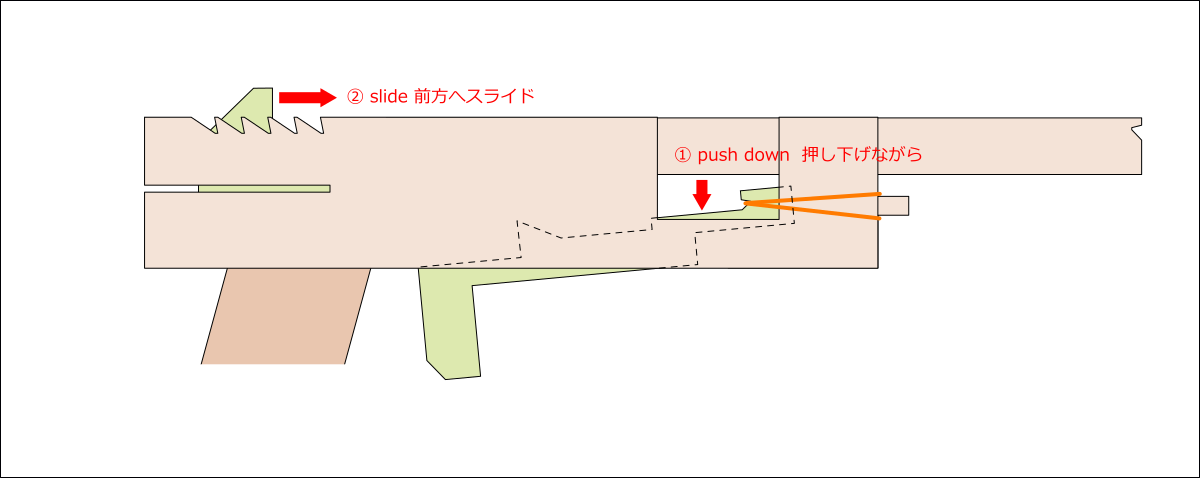

    1 Slide the releaser forward while pressing the trigger down
    OGG CRAFT

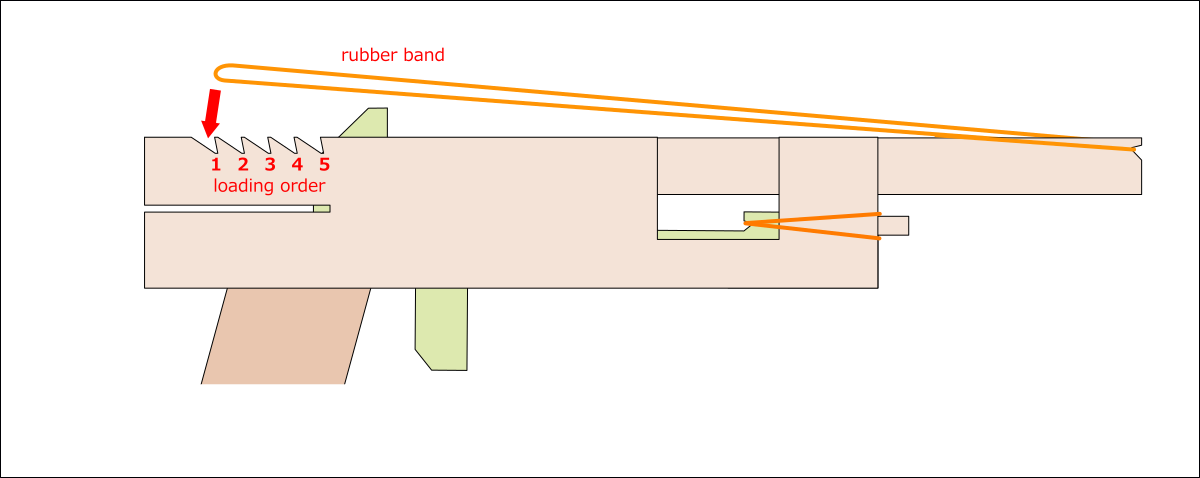

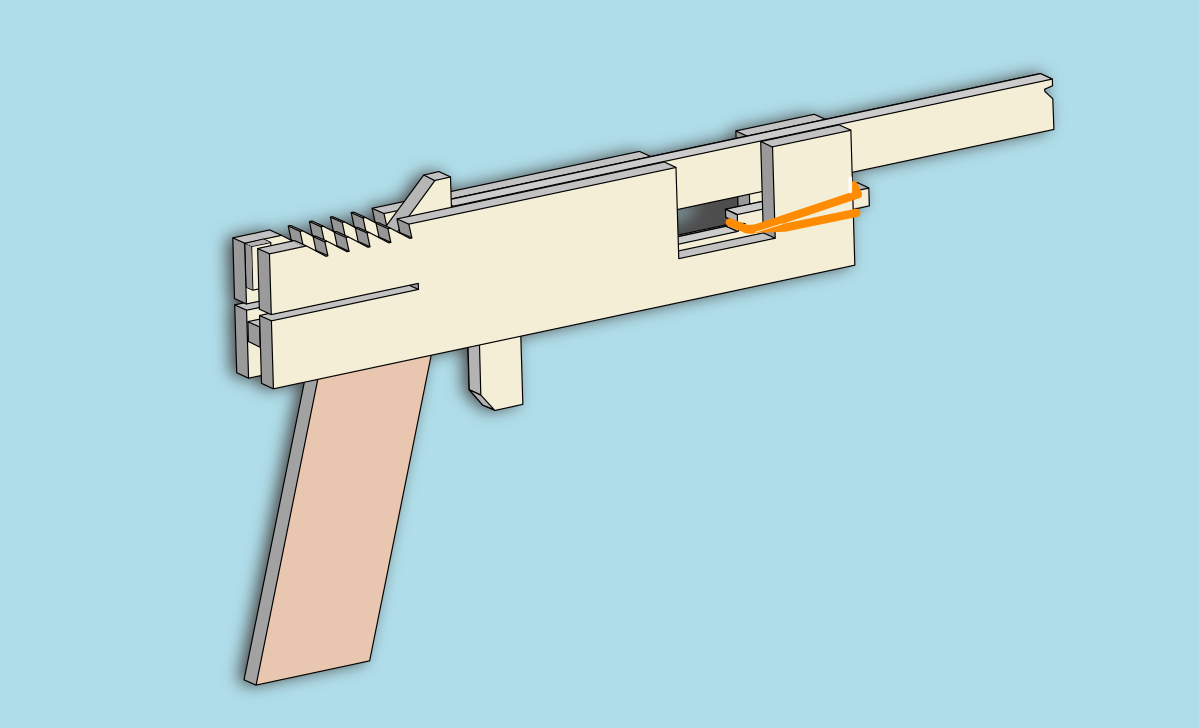

    2 Load a rubber band starting from the rearmost hook, then load the remaining four rubber bands in the order shown in the diagram
    OGG CRAFT



    3 Pulling the trigger fires one rubber band at a time. After all the bands have been shot, return to Step 1

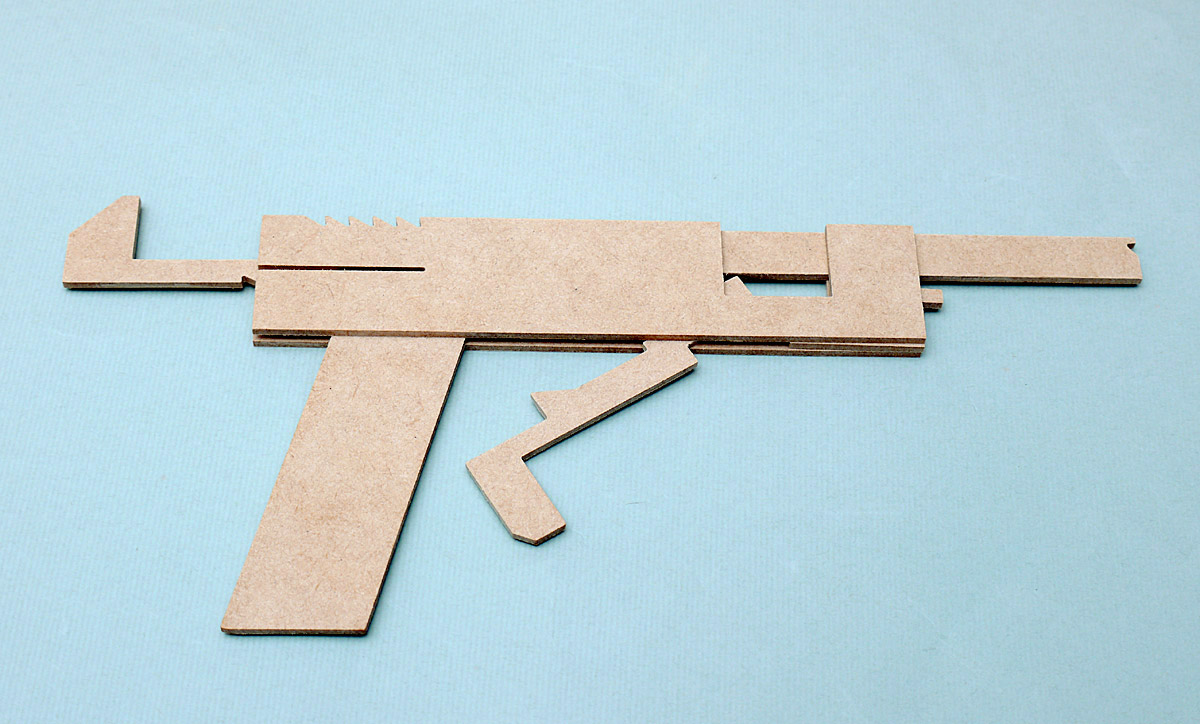

    - Finished Photos -
    OGG CRAFT

    OGG CRAFT

    OGG CRAFT
    "EASY-INSERT-DESIGN"

    OGG CRAFT

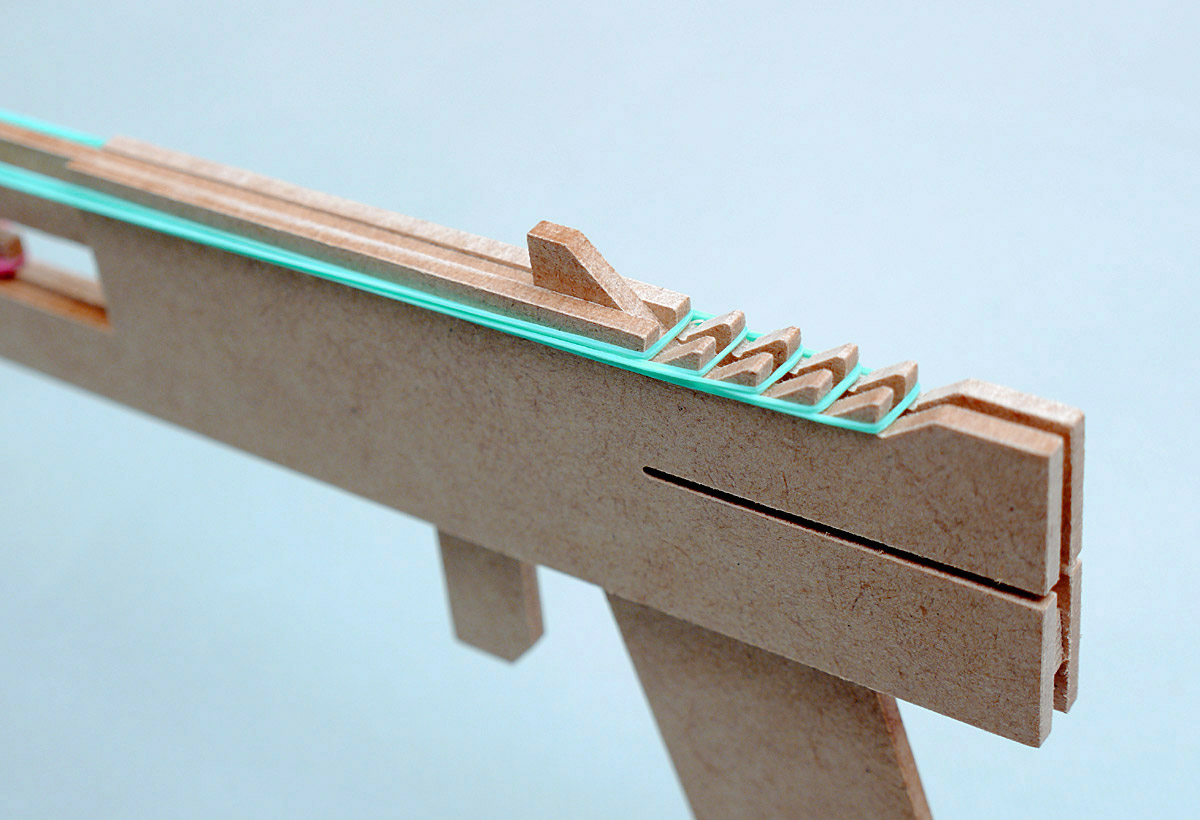

    5 rounds. Rubber bands are fired by the ramp of a sharkfin-like releaser
