How to make P201 Ai-Oh (2020 version)

OGG CRAFT

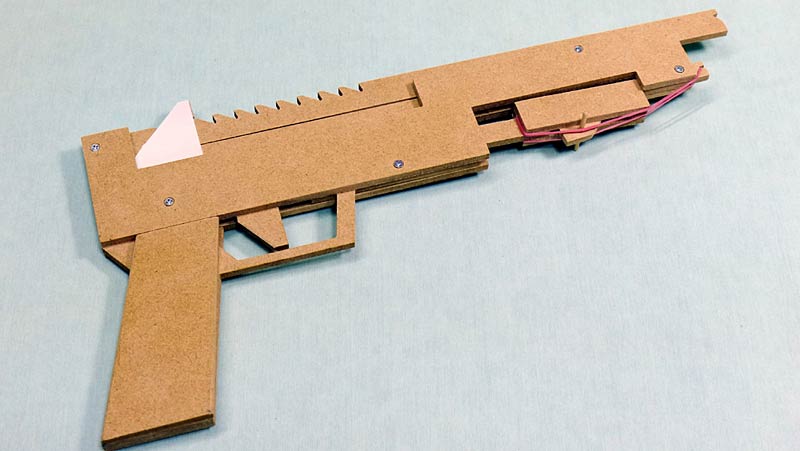

10 rounds semi automatic Rubber Band Gun P201 Ai-Oh (2020 version)



- About P201 Ai-Oh (2020 version) -

Category: Hand gun

Capacity: 10 rounds

Mechanism: Ramp release



Youtube

- PDF plan -

PDF plan is here

- Note -

  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.
  • Do not over-load rubber bands.
  • Do not aim other person.

  • Do you understand and accept above? Then let's try to build it.

    - Materials -

  • MDF --- 4(T) mm
  • Thin plate (pla. thick board) --- 1~1.5(T) mm
  • Wood pin --- 2~3(D) mm
  • Wood screw --- 10 mm x 9

  • - Tools -

  • Scroll saw
  • Drill press (or pin vise)
  • Plus driver
  • Sandpaper #240
  • Wood glue
  • pla glue
  • Removable spray adhesive or Double sided tape

  • - Assembling -

    Please watch the Youtube video also.

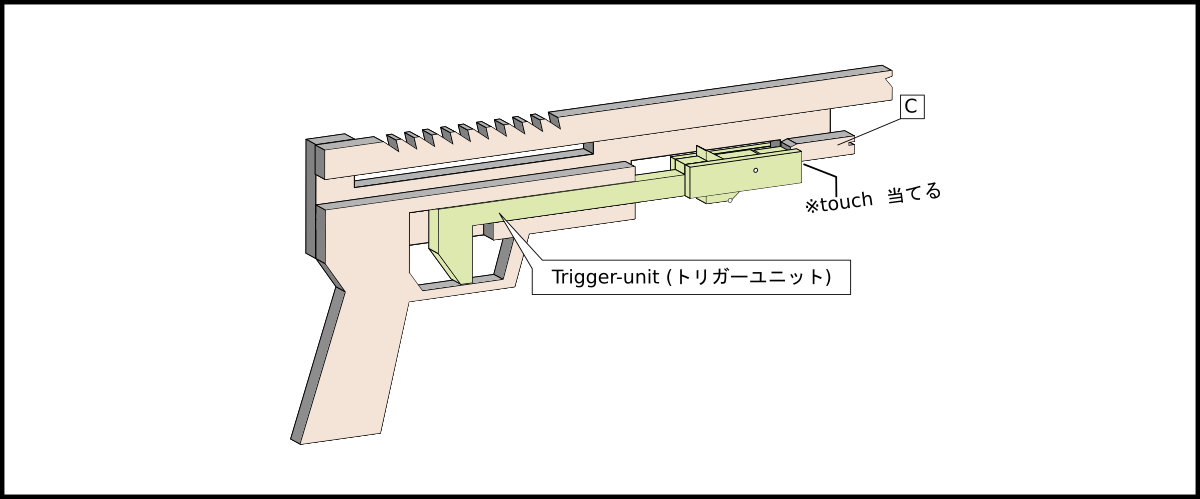

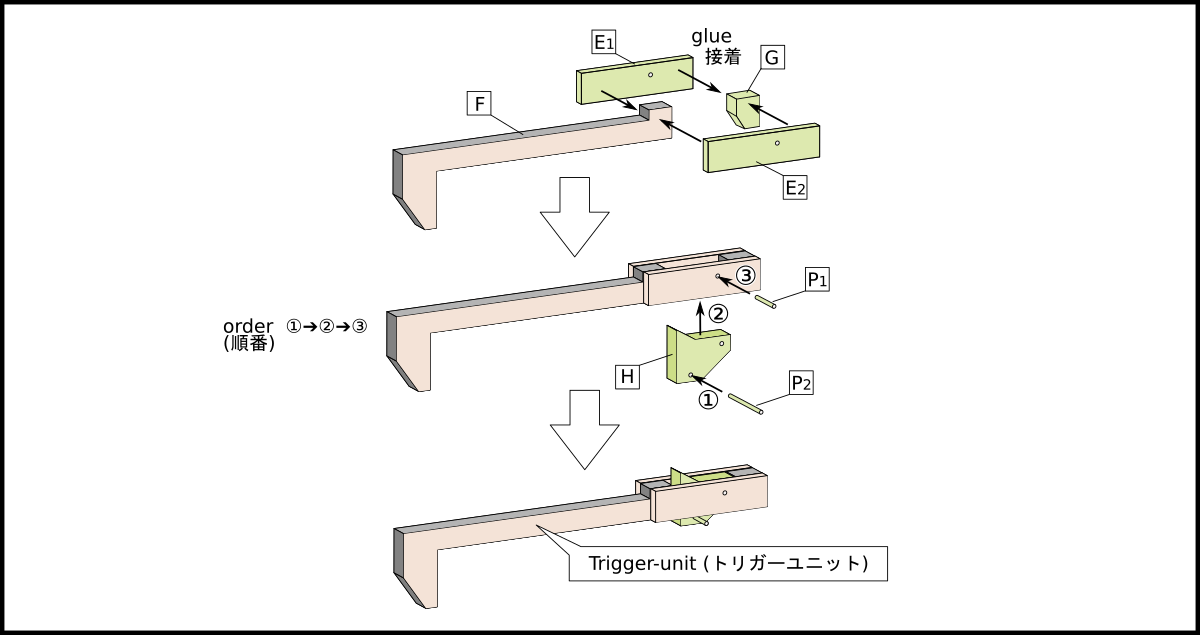

    1. Assemble trigger-unit
    OGG CRAFT

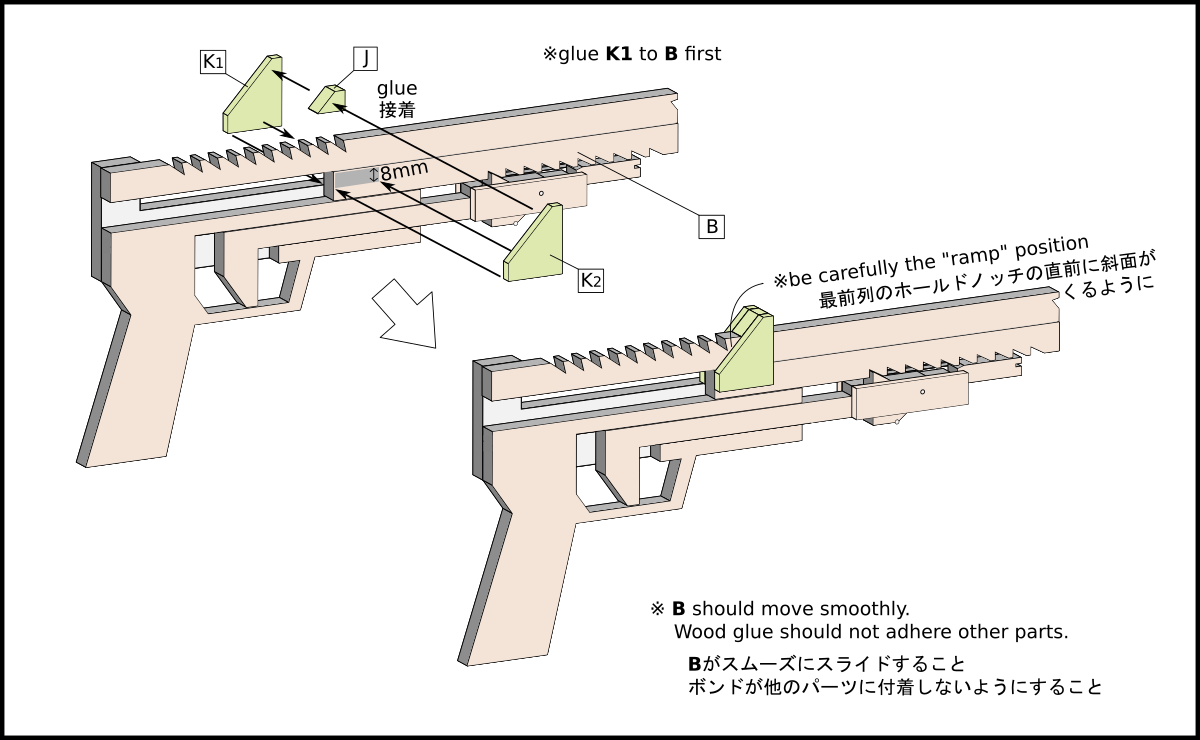

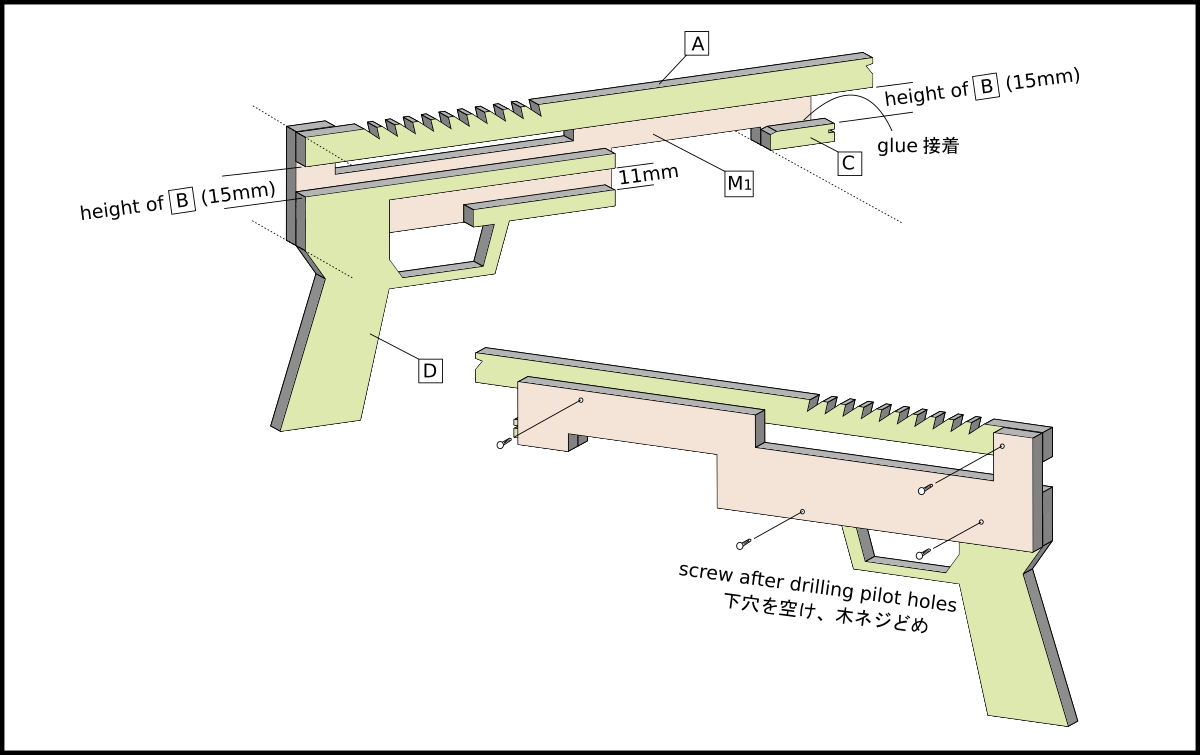

    2. Glue and screw each frame part
    OGG CRAFT



    3. Put trigger-unit into the frame
    OGG CRAFT

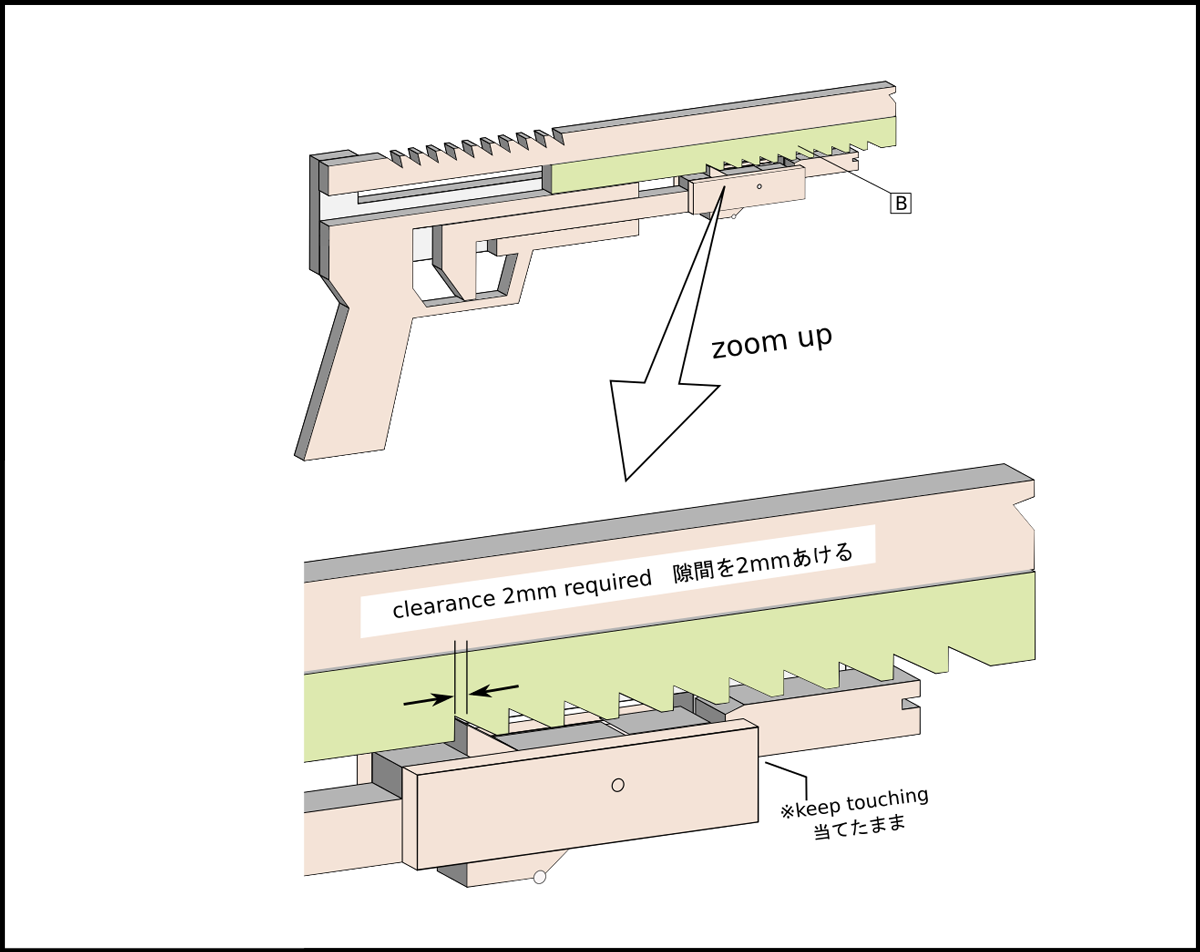

    4. Adjust the position of sliding bolt
    OGG CRAFT



    5. Glue each part of releaser
    OGG CRAFT

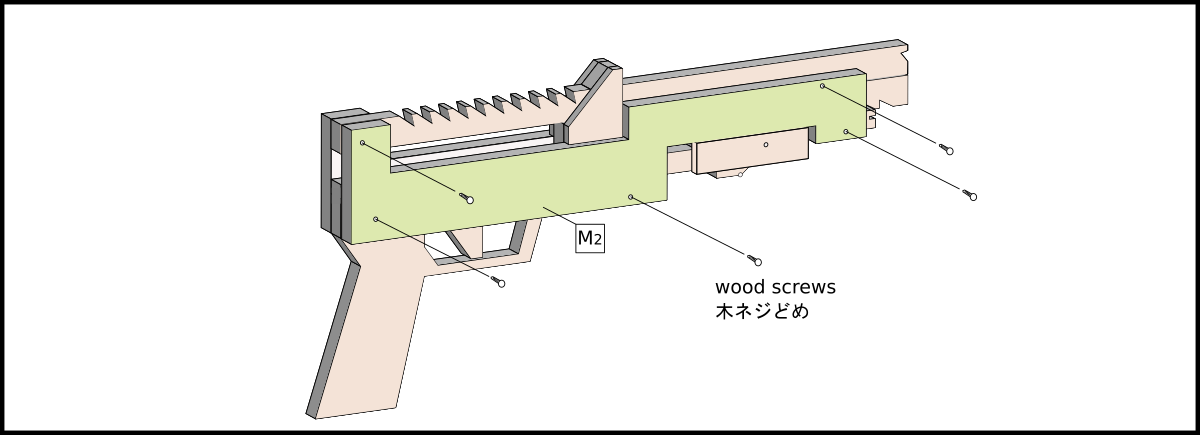

    6. Insert each part, then screw other frame panel
    OGG CRAFT

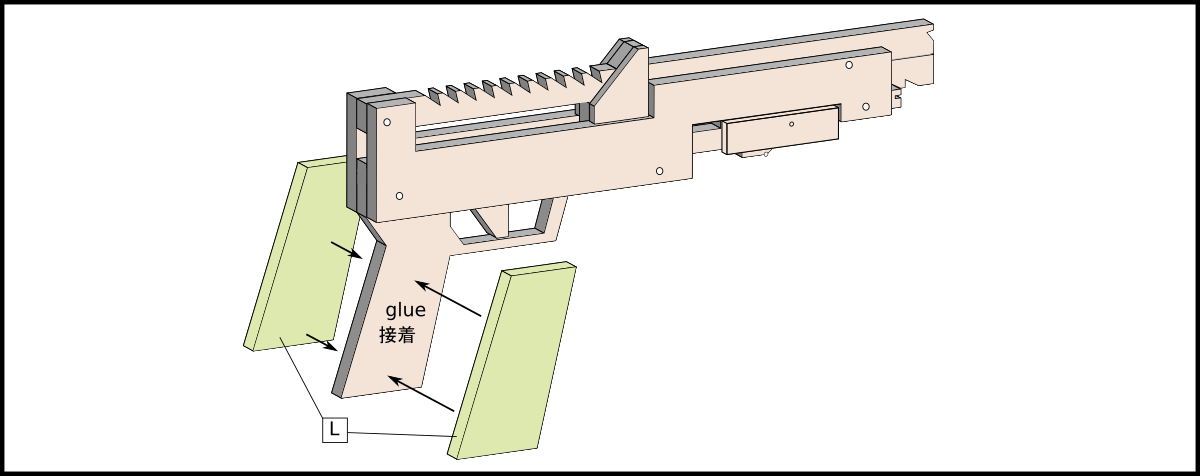

    7. Glue grip panels
    OGG CRAFT

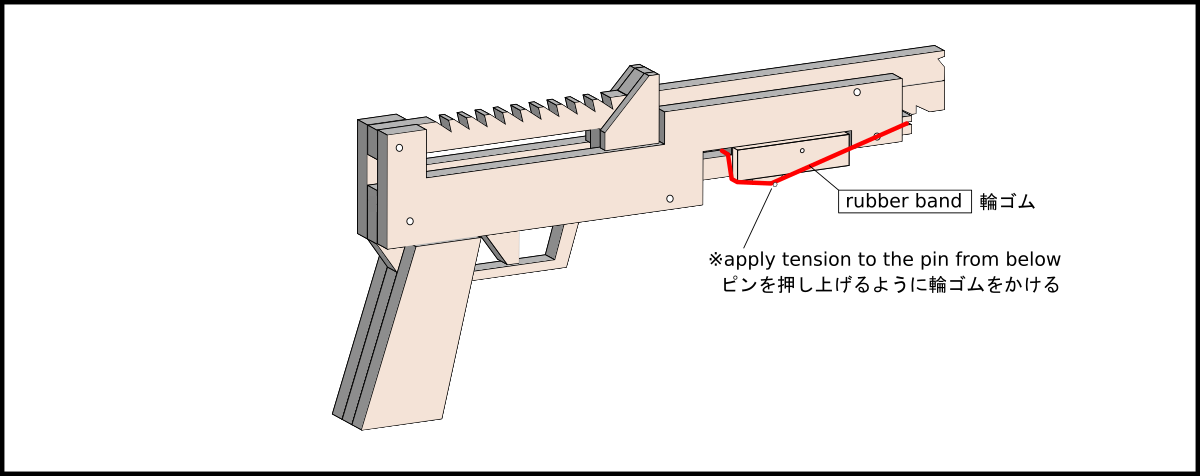

    8. Attach a rubber band as trigger spring
    OGG CRAFT



    - Loading -

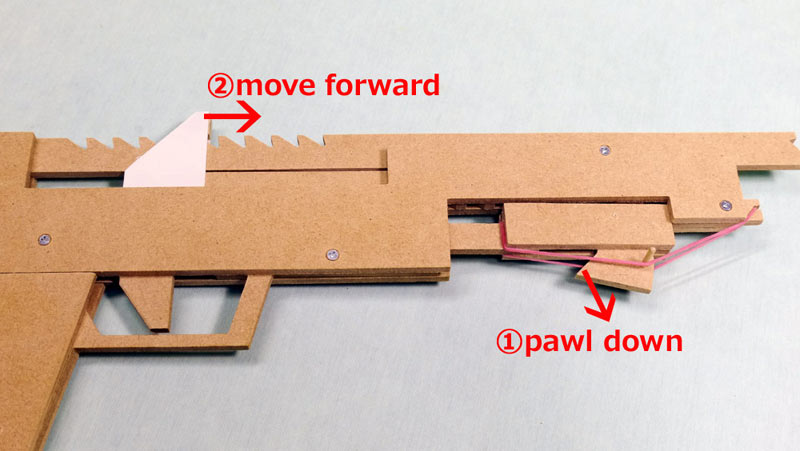

    1. Pawl down and move releaser forward
    OGG CRAFT

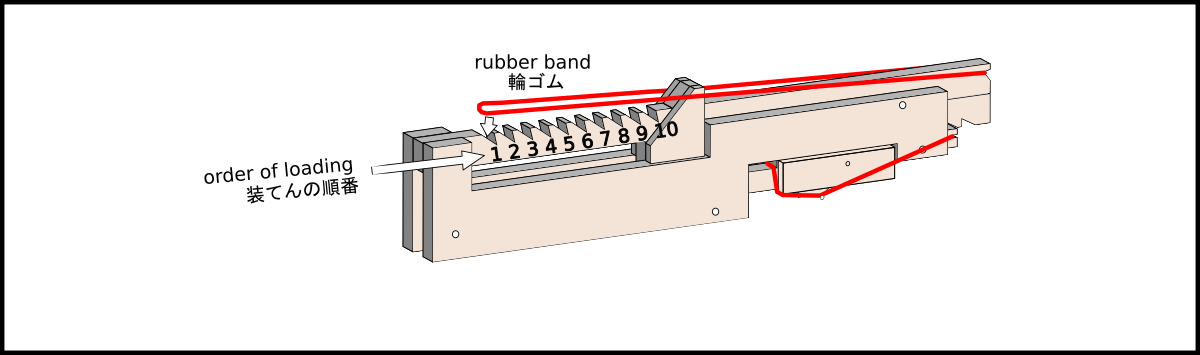

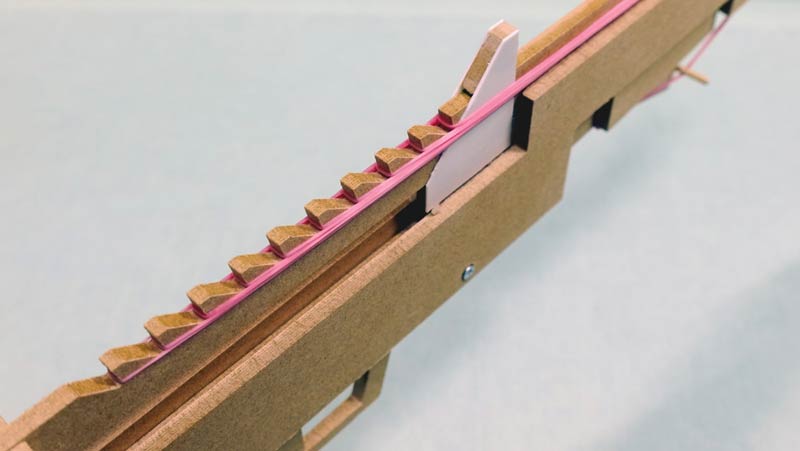

    2. Load rubber band from rear hook
    OGG CRAFT





    OGG CRAFT

    OGG CRAFT
    10 rounds
