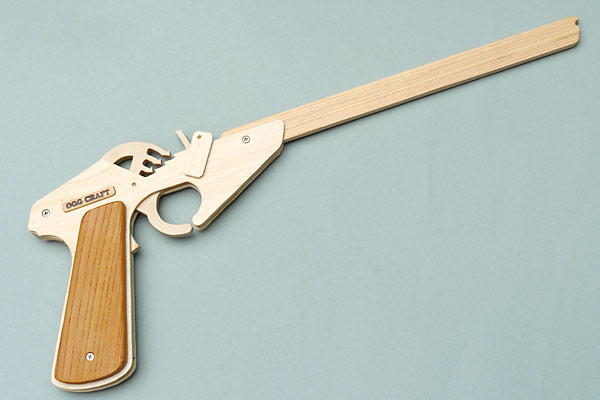

P608 MOOGUL

OGG CRAFT
There is a video
p608

This is P601 MULTY made in 2002. It has "Get-Under and Hook-Up-Mechanism" to load the next rubber band to the holding-hook.

p608

New work P312 MOOGUL, It has the advanced same mechanism.

p608

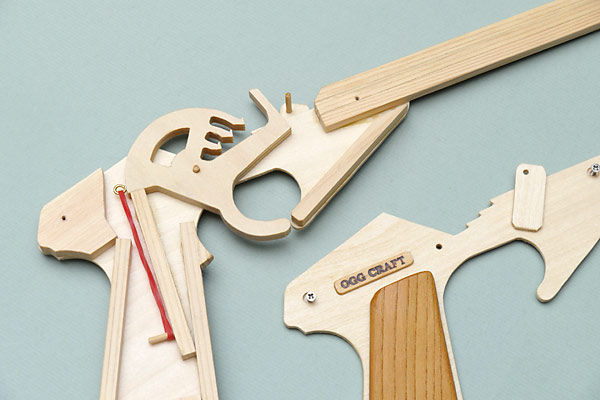

Some parts on the frames.

p608

1. "Holding-Hook"
2. "Fixed-Releaser"
3. "Hook-Up-Arm"

p213

"Holding-Hook","Hook-Up-Arm" and "Trigger" were made as one part.
This has only one movable part.

p608

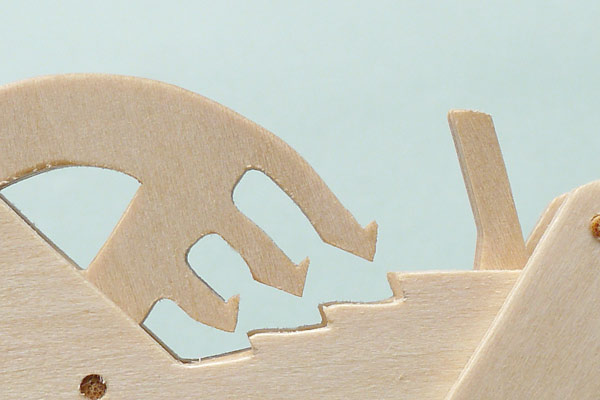

The tip of "Hook-Up-Arm" is like an arrowhead.
The name MOOGUL comes from "MOGULU (MOGURU)" in Japanese. It means "Get under".

p608

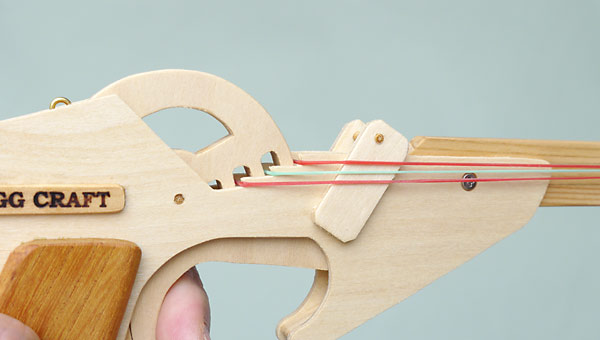

4 rounds.

p608

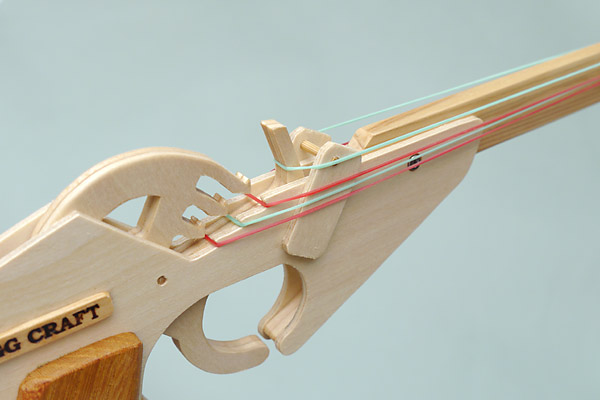

When pulling the trigger, the rubber band is released from the holding-hook.
And the arrow's barbs hook up the loaded rubber bands, and send them to next steps and the holding-hook.

p608

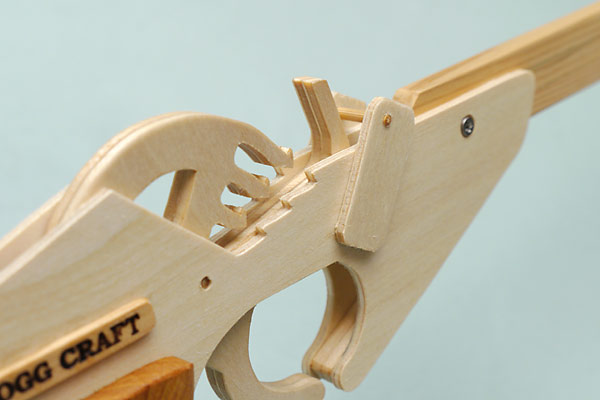

The "Fixed-Releaser" was attached later to prevent the jam.

p608

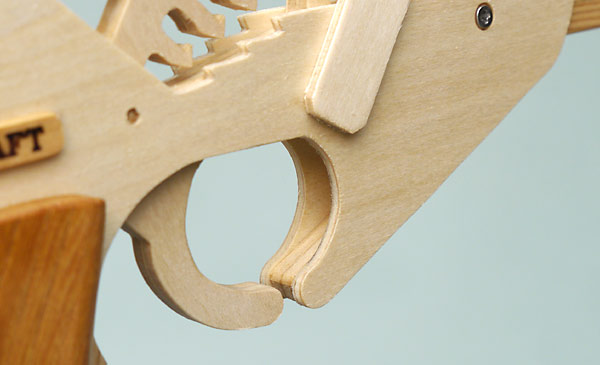

The half trigger guard.

p608

"Hook-Up-Arm" is like a protractor.

p608

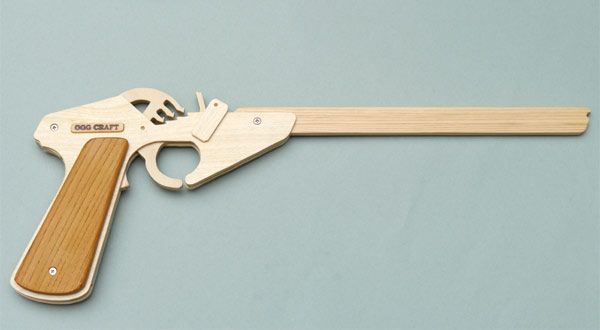

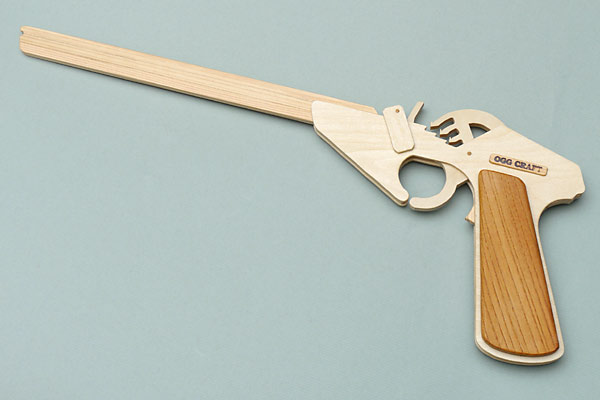

The right side view.

p608

The left side view.

p608

The main frame and the grip frame were cut as one part.

p608

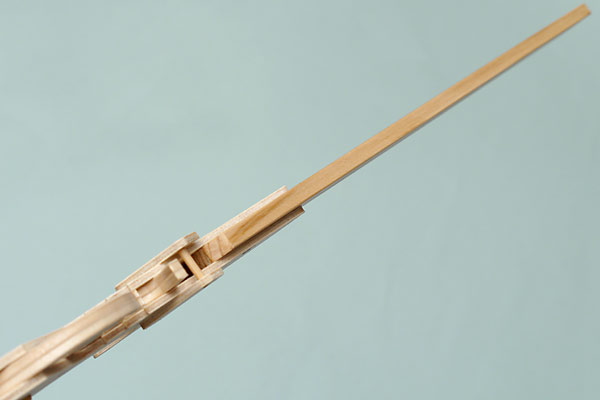

The thickness of the body is only 11mm.

p608

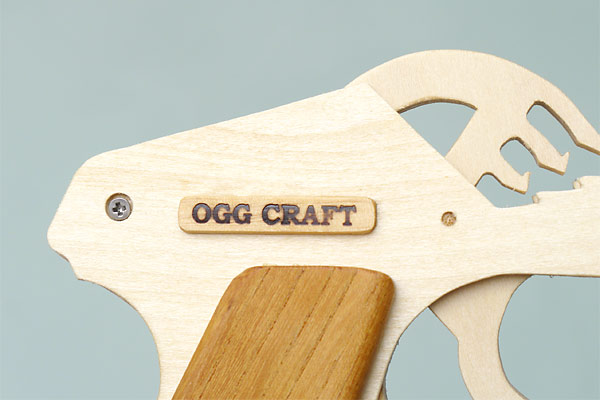

Made from japanese tilia plywood. The material of the grip is keyaki (japanese zelkova).
Finished with polyurethane clear paint.

p608

Please watch video.

YouTube


- SPECIFICATION -

<Completion Date> 2012/04
<Model Name> P608 MOOGUL
<Category> HAND GUN
<Length> 385 MM
<Barrel Length> 250 MM
<Capacity> 4 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto
