P605 FUDOH

01

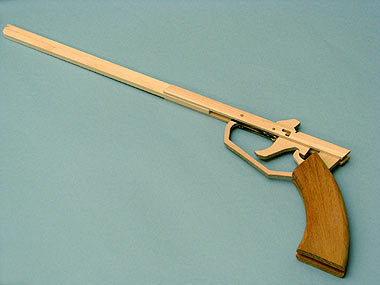

There is a video
02

2 - 3 rounds chopstick gun. It has a simple method.

03

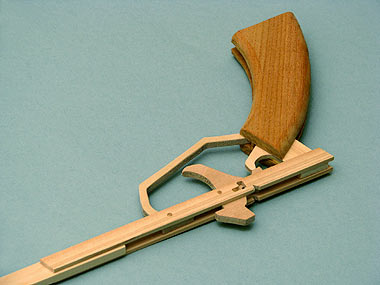

P605 FUDOH, it has a non-burst mechanism.

04

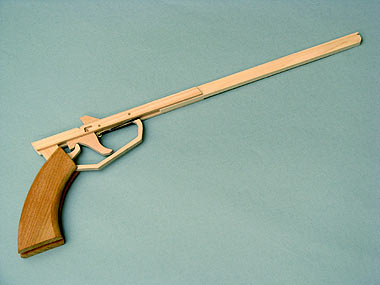

Exaggerated mechanism, but capacity is poor.

06

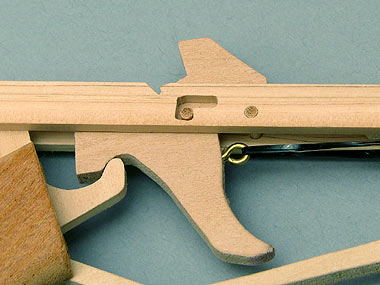

It is characterized by "L-hole".

07 07

Trigger's position.
(left) 1st rubber band release position.
(right) 2nd rubber band release position.

08

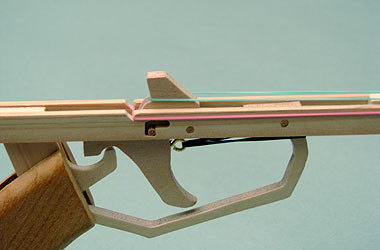

Loaded 2 rubber bands at frame-hook and trigger-top.

09

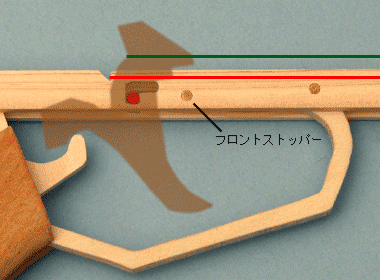

When the trigger is pulled, the 1st band is released, but the 2nd is not released.
When the trigger is returned, it moves forward.
Next the trigger is pulled, the flat-top of the trigger pushes up 2nd and releases it.

10

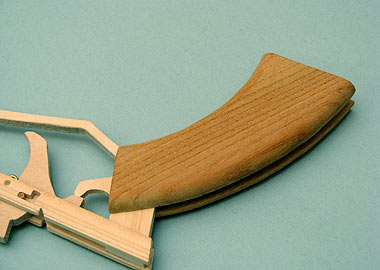

Grip, imaging a cut of doughnut.

11

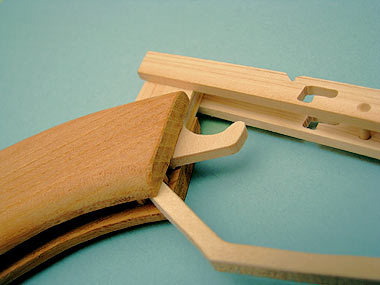

Trigger stopper.

12

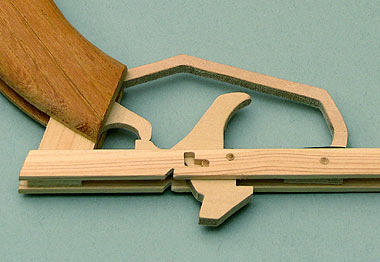

Trigger guard can be taken off easy.

13

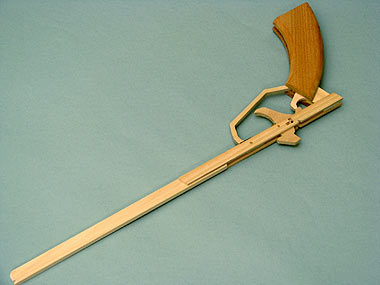

FUDOH means "FLOATING ACTION" in Japanese.

14

YouTube video


- SPECIFICATION -

<Completion Date> 2008/09
<Model Name> P605 FUDOH
<Category> Hand Gun
<Length> 375 MM
<Barrel Length> 275 MM
<Capacity> 2 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto

2008.09.14 UP
