P312 UPPLE

01
There is a video
p312

"Step-Up-Action" is one of my main repeat release system.


I made some guns that have "Step-Up-Mechanism"...

p312

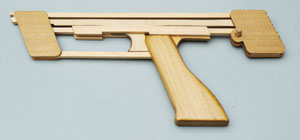

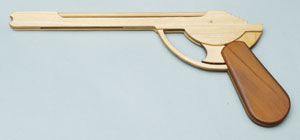

This (P301 ARC)...

p312

And this (P302 ARC II)...

p312

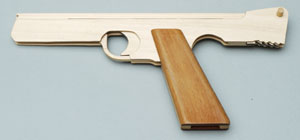

And this (P303 GIZA66°)...

p312

And this (P306 OTTAMAGATER)...

p312

And this (P307 DARC)...

p312

And this (P308 KIRETT)...

p312

And this (P402 XROSOVER)...

p312

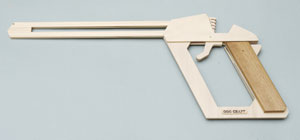

And this (P608 MOGUL).

They have an each different method or mechanism to work the "Step-Up-Action".

p312

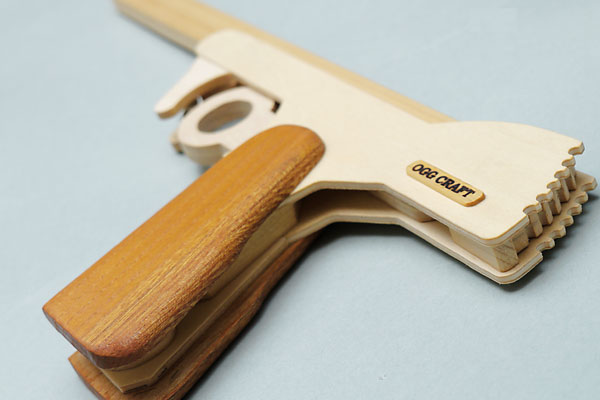

The new work, P312 UPPLE. It has a mechanism that is a mixture of P307 DARC and P303 GIZA66°.

p312

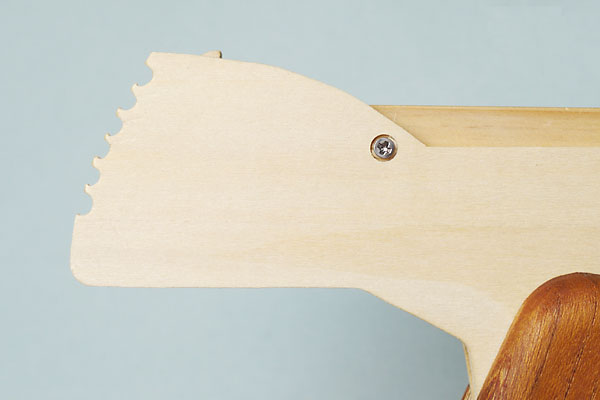

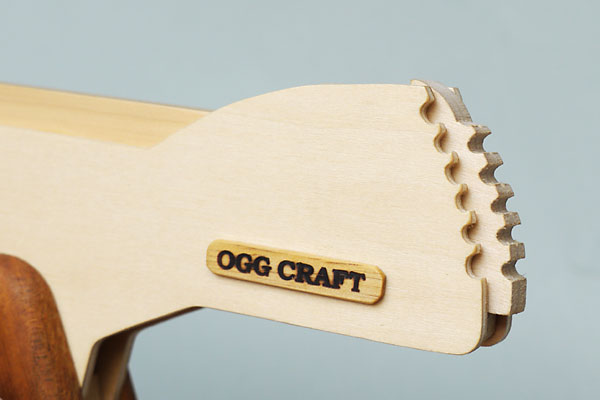

Each part of the rear holding-hooks is a semi-circular.

p213

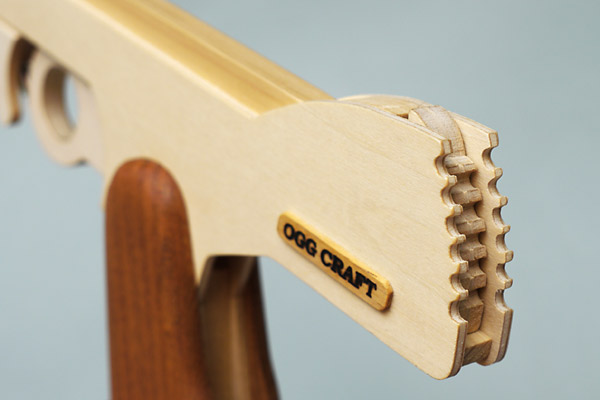

The releaser also has the same shape as the above.

p312

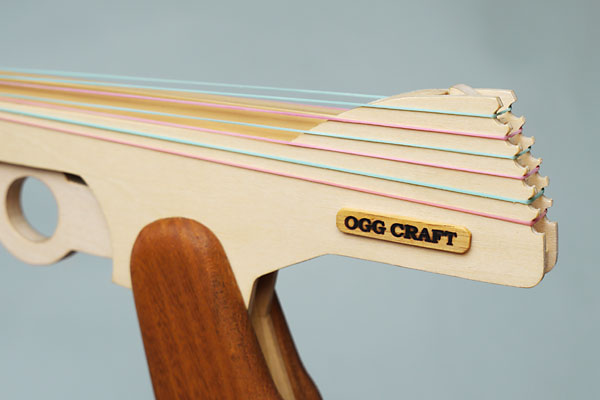

Full loading, 6 rounds.

p312

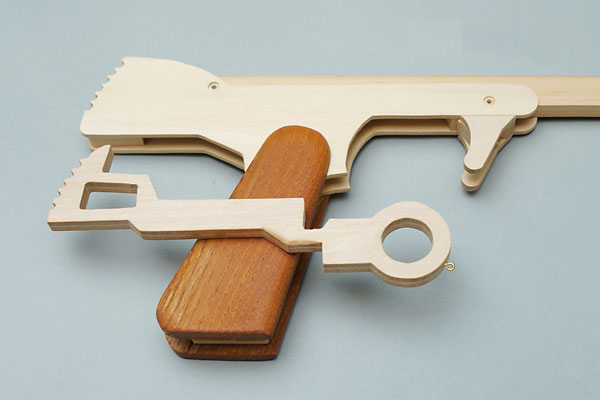

This gun has only one moving-part.

p312

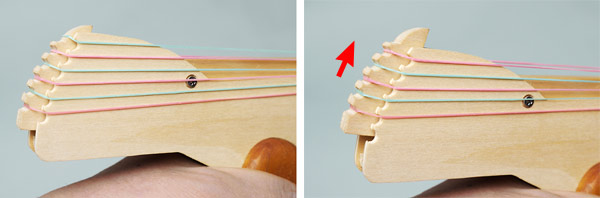

The releaser is moved upward only one step by the force of the rubber bands. I call it "Power-Assisted-Step-Up-Action".

p312

This design is similar to other P300 series. Two panels that are thin as 2.5 mm.

p312

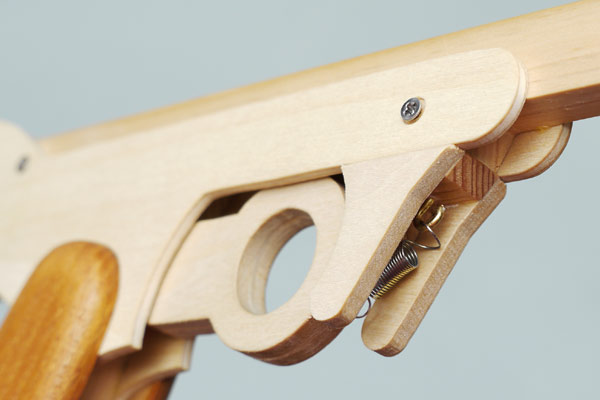

The half trigger guard for the trigger spring.

p312

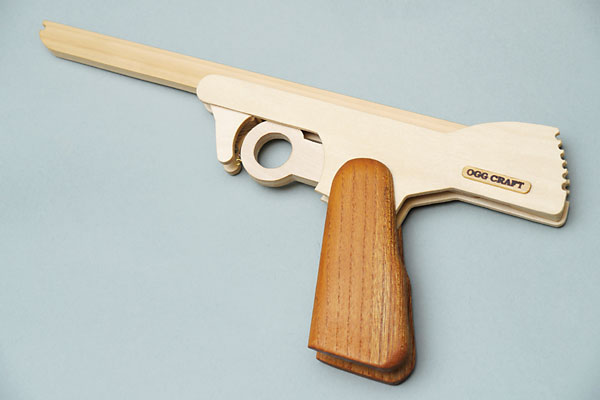

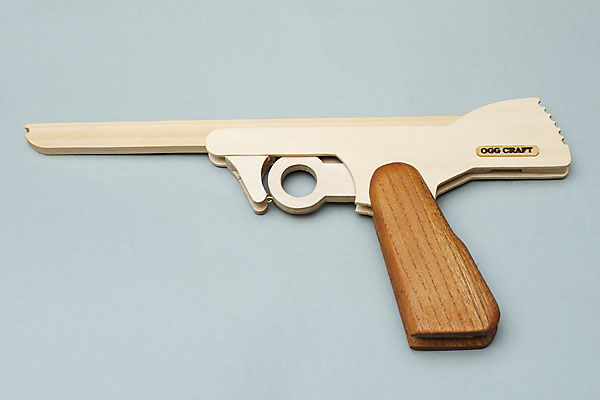

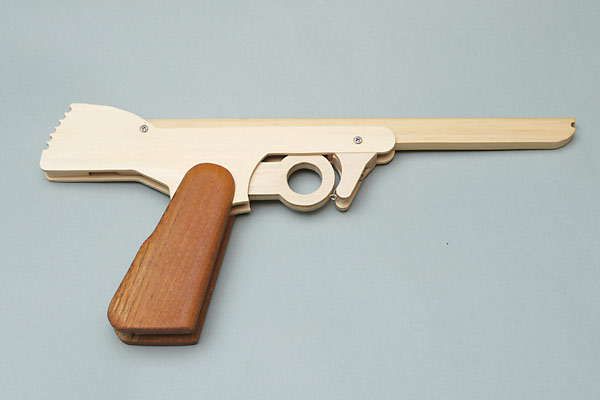

The right side view.

p312

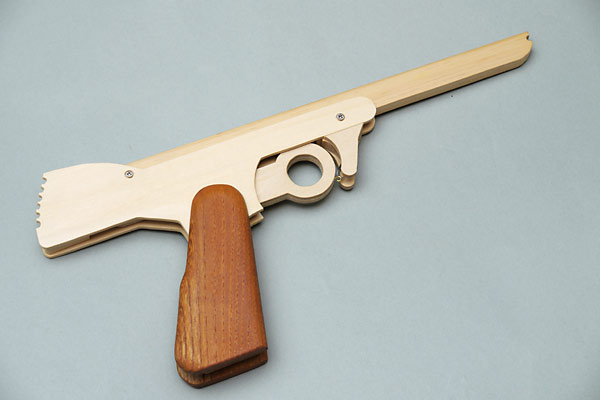

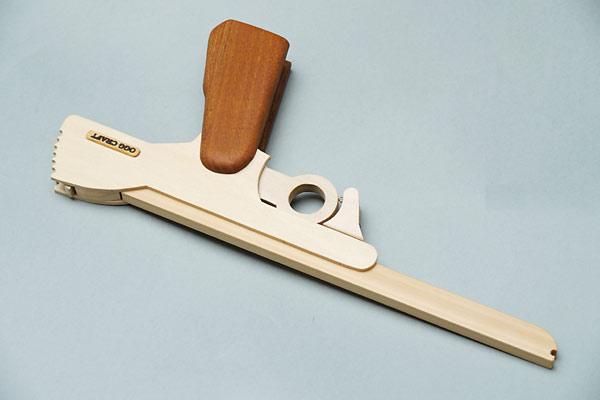

The left side view.

p312

Made from japanese tilia plywood. The grip's material is keyaki (japanese zelkova).

p312

Please watch Video.

YouTube video


- SPECIFICATION -

<Completion Date> 2012/07
<Model Name> P312 UPPLE
<Category> HAND GUN
<Length> 305 MM
<Barrel Length> 295 MM
<Capacity> 6 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto

2012.09.02 UP
