P309 SLARIE

01
There is a video
p309

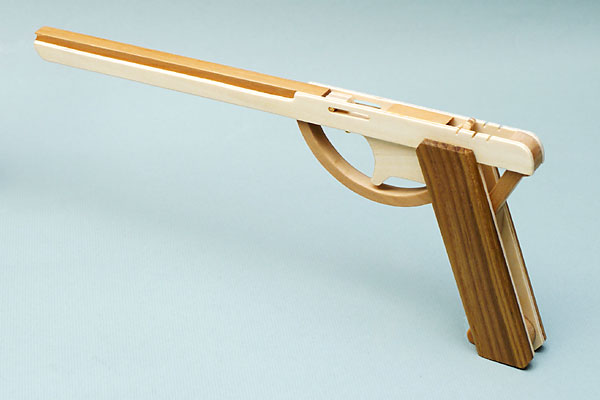

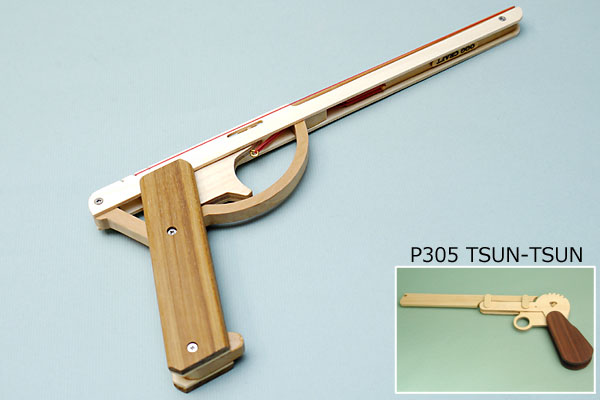

P309 SLARIE, it has "Stick-Out-Release-Mechanism".
The method is near to the P305 TSUN-TSUN.

p309

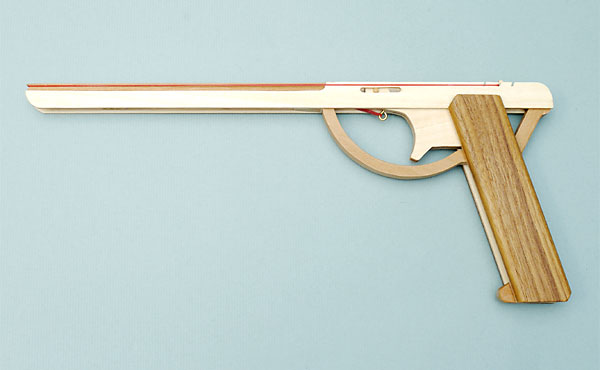

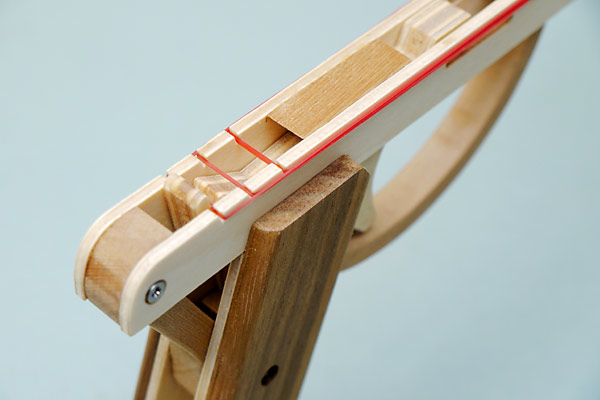

Full loading 3 rounds.

p309

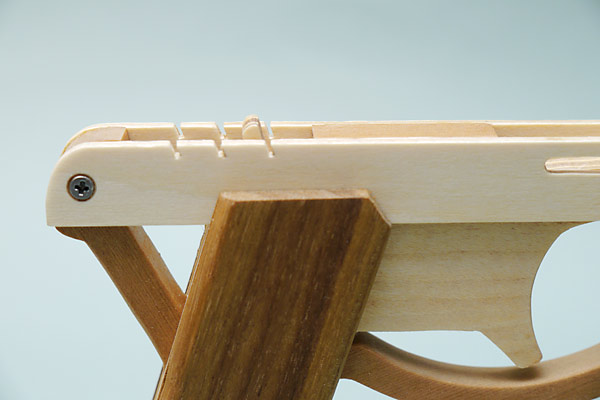

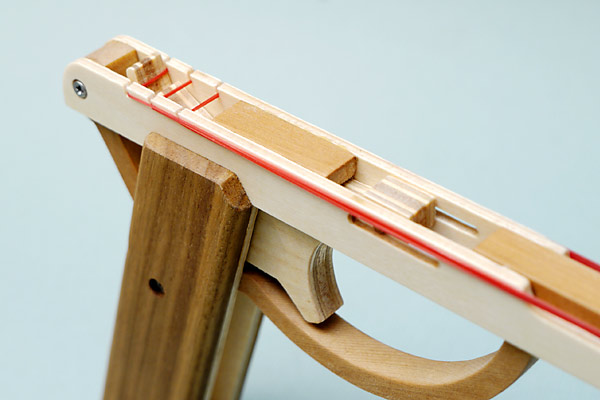

The rubber bands are released from the rear holding grooves.

p309

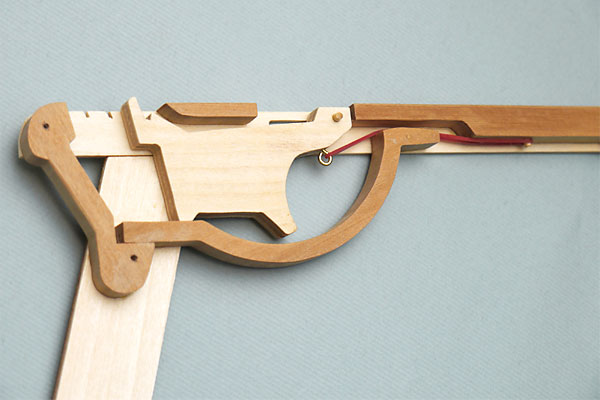

It has one moving part only.

p309

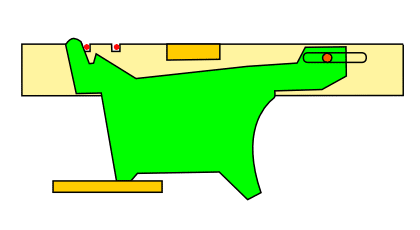

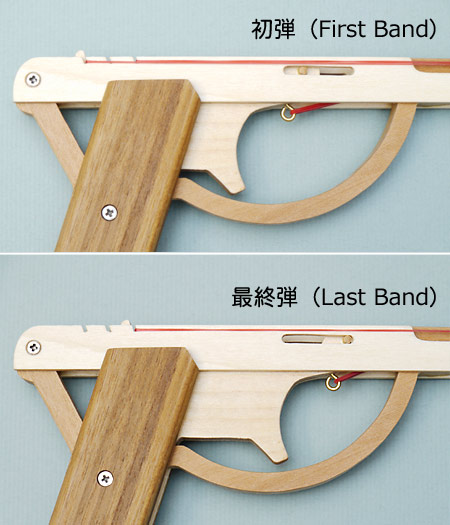

Every shooting, the trigger position moves forward.

p309

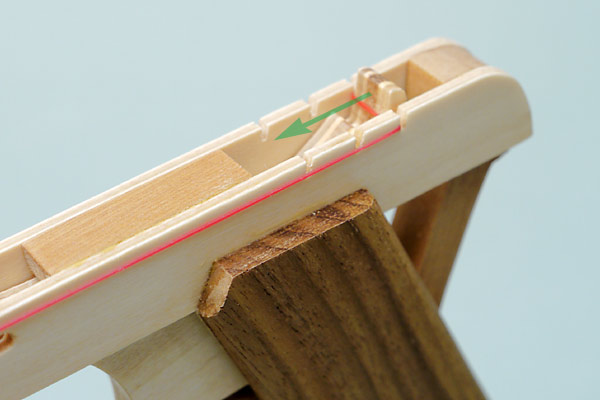

The releaser is stopped by the loaded rubber band.
After releasing, it moves to the next rubber band.

p213

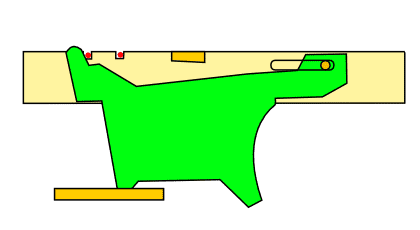

This was the first shape of the releaser and was not able to act well.

p309

And I changed the releaser to twin peaks shape.

p309

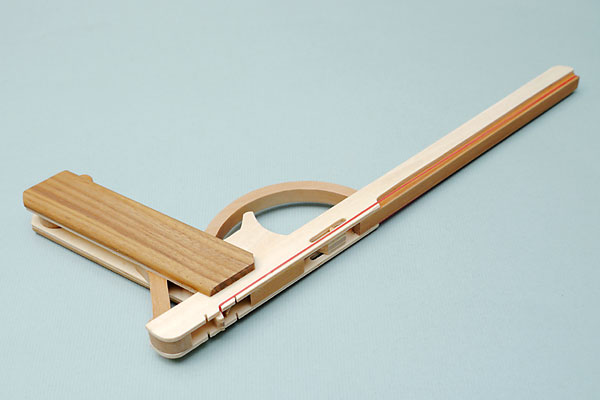

The name SLARIE comes from "SULARI" in Japanese.
It means "SMART and SLIM".

p309

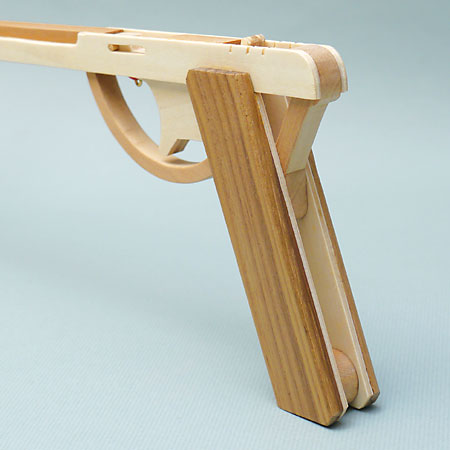

The rear view. It has the interspace between the grip structure.

p309

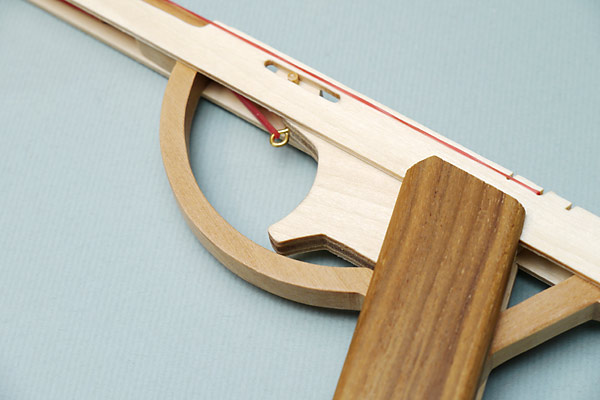

The large trigger guard for the moving trigger.

p309

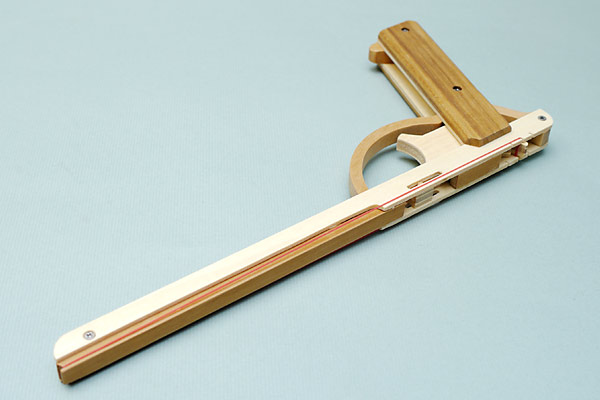

Made from japanese tilia plywood and reddish silk wood.

p309

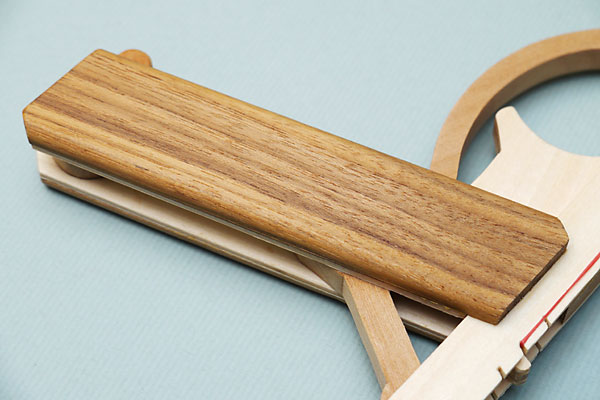

The grip is made from teak.

p309

Finished with polyurethane clear paint.

p309

Please watch the video.

YouTube video


- SPECIFICATION -

<Completion Date> 2012/03
<Model Name> P309 SLARIE
<Category> HAND GUN
<Length> 300 MM
<Barrel Length> 255~273 MM
<Capacity> 3 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto
