P223 PREZZA

OGG CRAFT
There is a video
P223

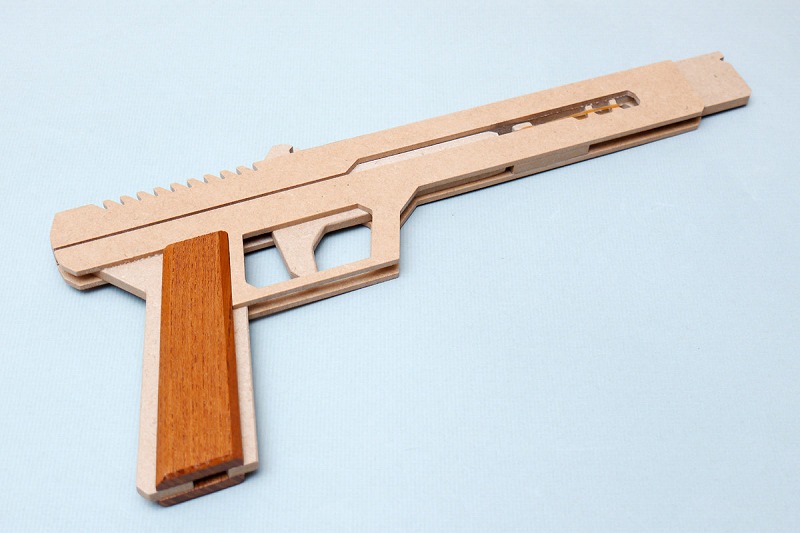

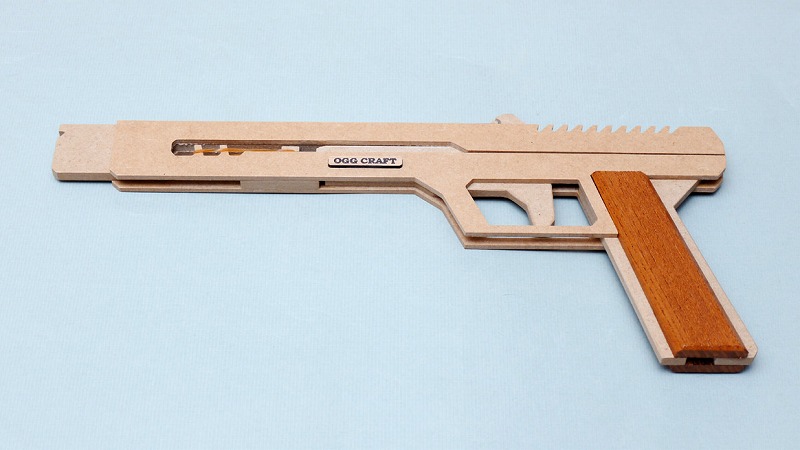

The P223 PREZZA that included "EASY-INSERT-DESIGN".

P223

"Shark-fin-release" rubber band gun with ratchet system Type-D.
Reference: About my ratchet system

P223

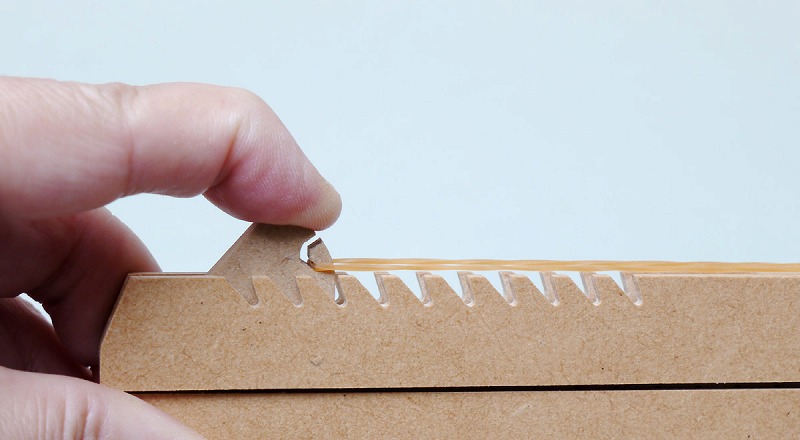

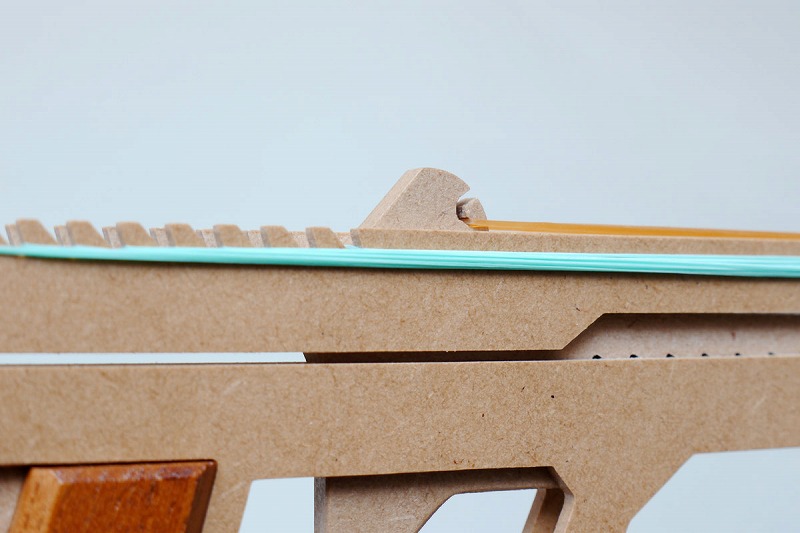

10 rounds model. Rubber bands are released by the ramp of a sharkfin-like releaser.
And it has also a technique named "SANDWICH-BY-RUBBER" for anti-slip system for the releaser.

P223

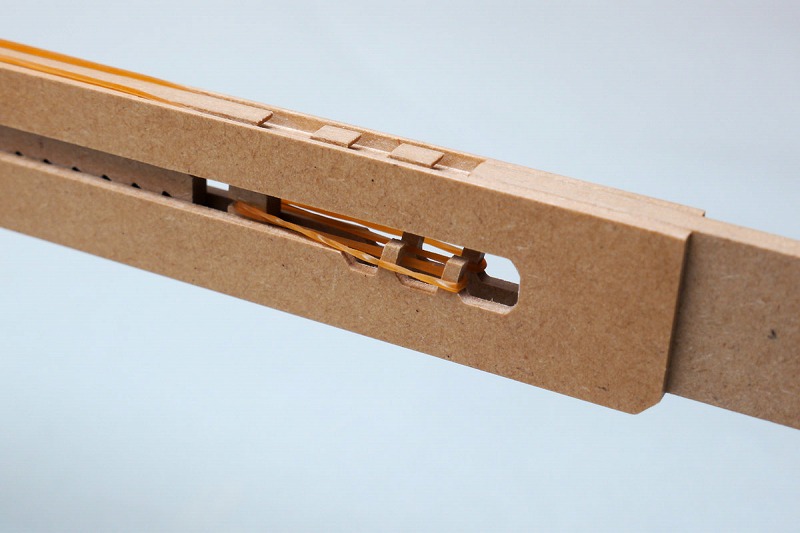

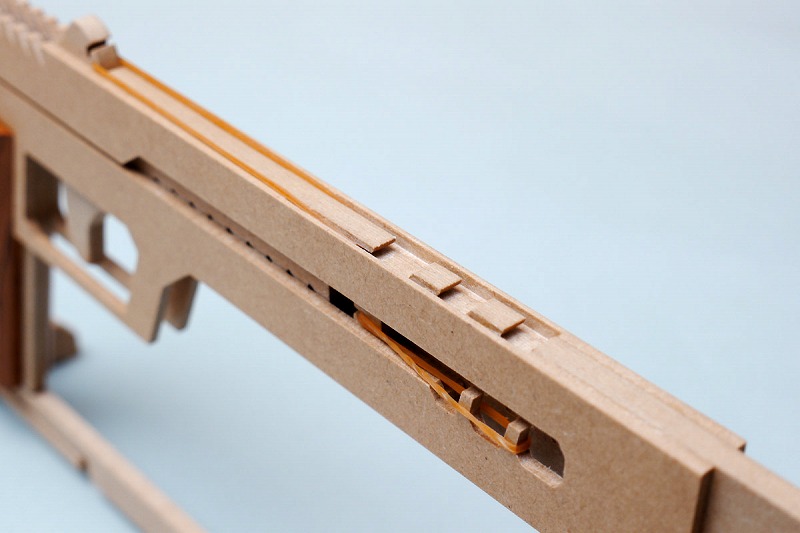

Trigger spring (rubber band).

P223

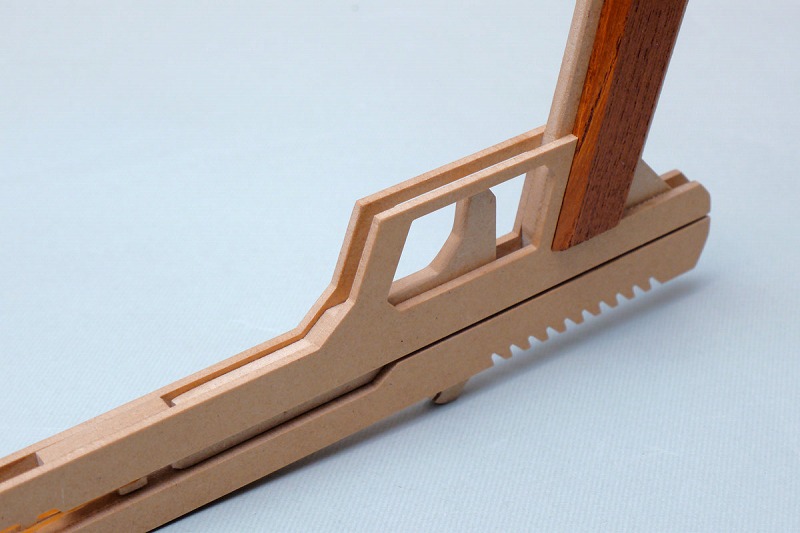

The trigger can be installed from the bottom without disassembly of the body.

P223

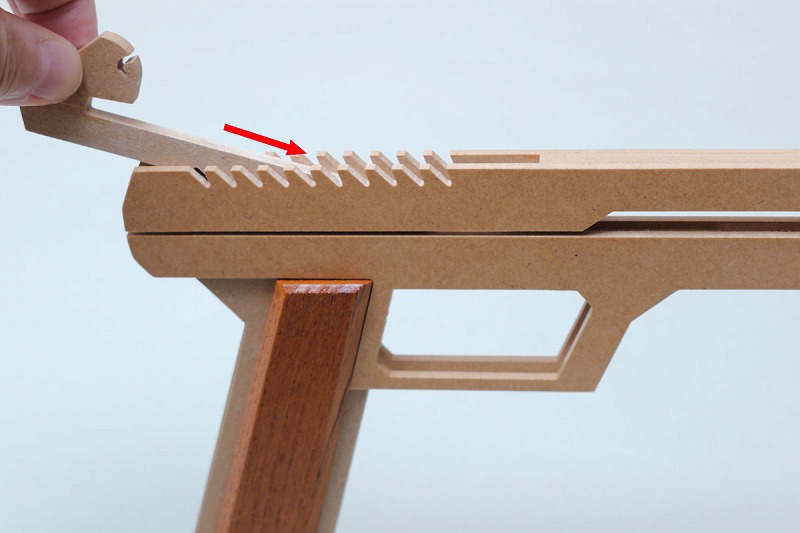

The releaser also, easy install.

P223

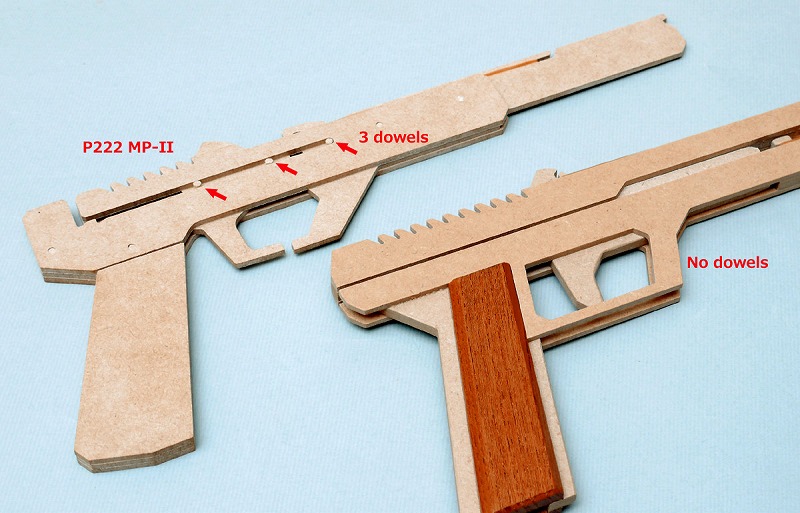

Dowels like P222MP-II are not neccesary.

P223

This work has "Automatic-return-system".
The releaser is automatically returned to the neutral position after the last shot.

P223

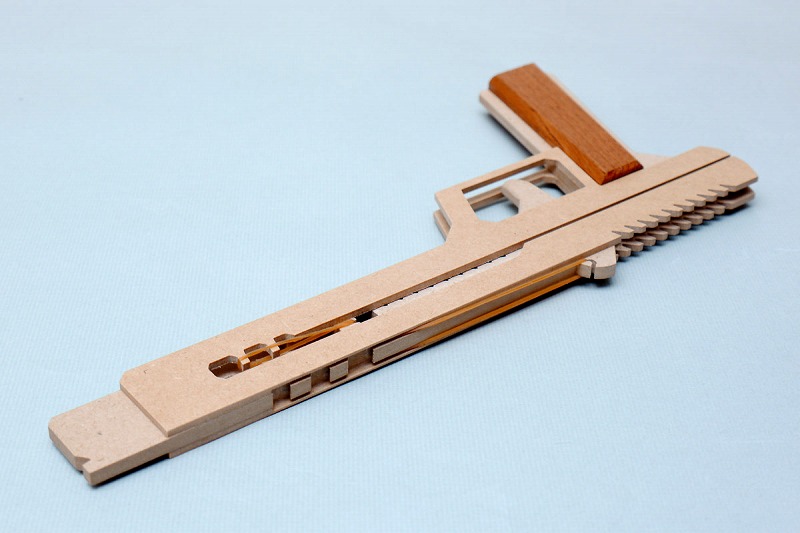

3 hooks on the barrel to attach the rubber band.

P223

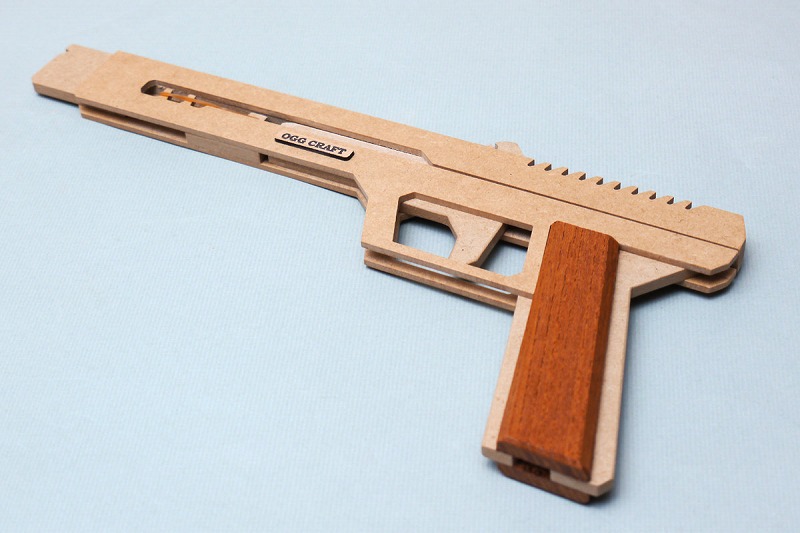

Made of MDF and keyaki (Japanese zelkova).

P223


P223

Please watch the video.


- SPECIFICATION -

<Completion Date> 2020/04
<Model Name> P223 PREZZA
<Category> Hand Gun
<Length> 320 MM
<Barrel Length> 210~280 MM
<Capacity> 10 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi automatic

2020.04.20 UP
