P217 LIGHTNING

OGG CRAFT
There is a video
p217 p217

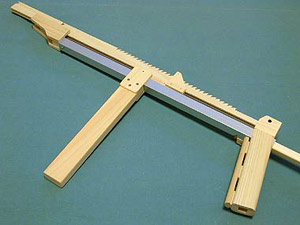

My old works, P204 BURST and P207 DAN MAC.
They have "Ramp-Release-System" and over 25 capacity.

p217

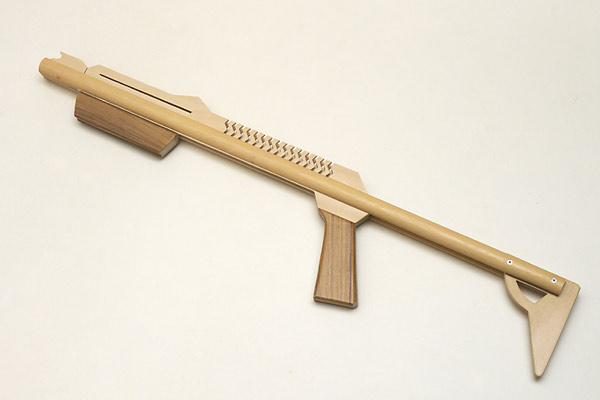

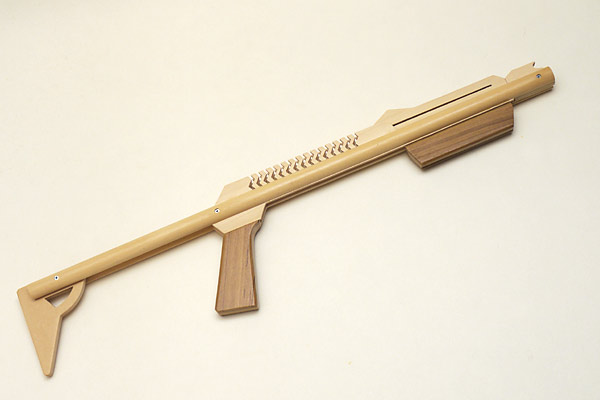

New work P217 LIGHTNING, it is Manual-Pseudo-Full-Auto machine gun.
Its releasing mechanism is same as P204 BURST and P207 DAN MAC.
And also it has a newly-invented loading mechanism.

p217

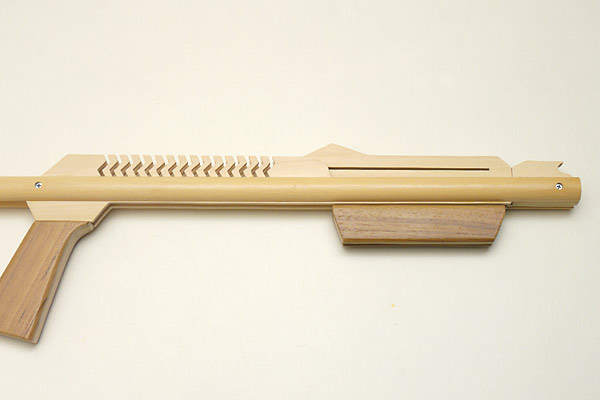

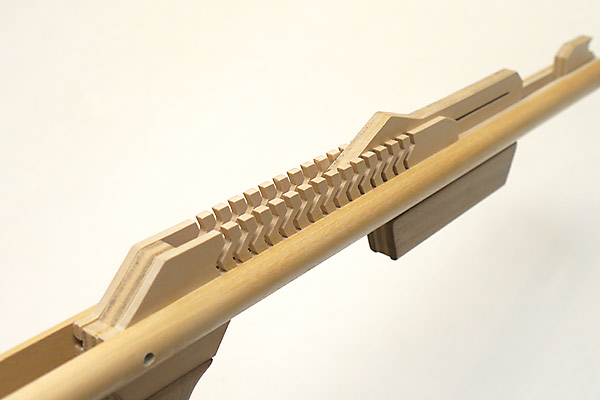

Novel holding-hooks (Saw-blades).

p217

It has "Ramp-Release-System".

p217

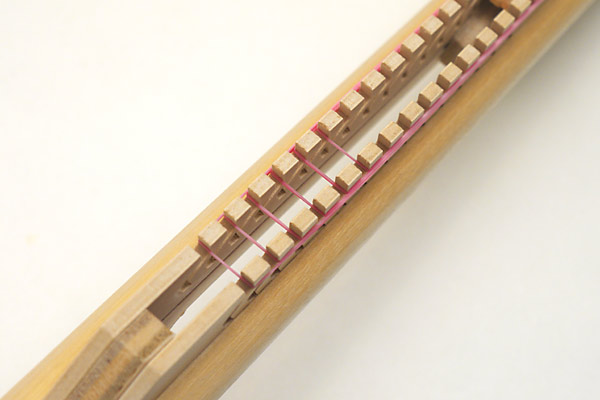

Its releaser pushes up the rubber bands from inside.

p213

15 hooks x 2 stages = 30 rounds.

p217

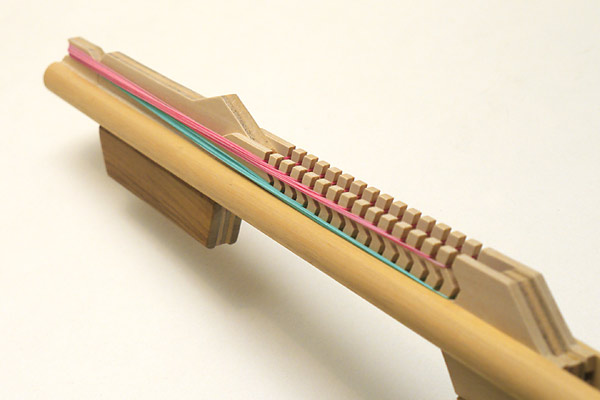

2-staged loading.

p217

Fore grip (instead of the trigger).

p217

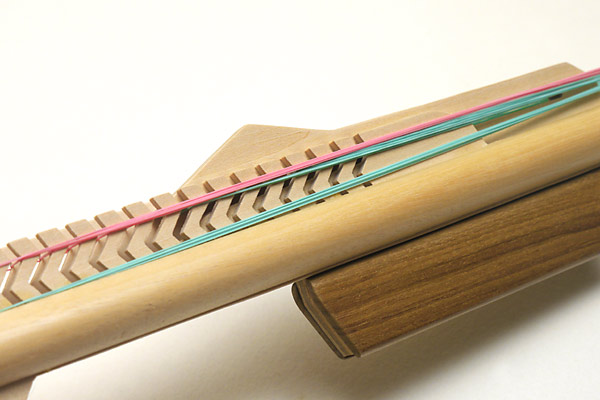

First, only upper red rubber bands are released. Lower green bands are not done.

p217

At the same time upper all rubber bands have been released, lower rubber bands are lifted up to upper hooks.

p217

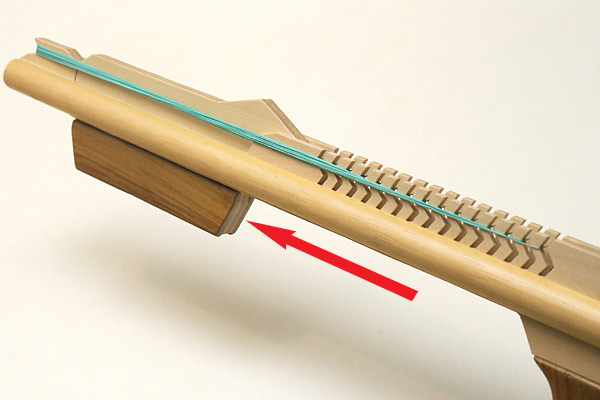

To release green rubber bands, the fore grip must be slided to default position.

p217

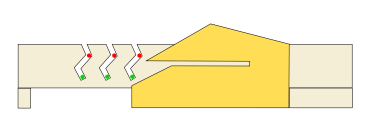

Animation of the 2-staged loading mechanism.

p217

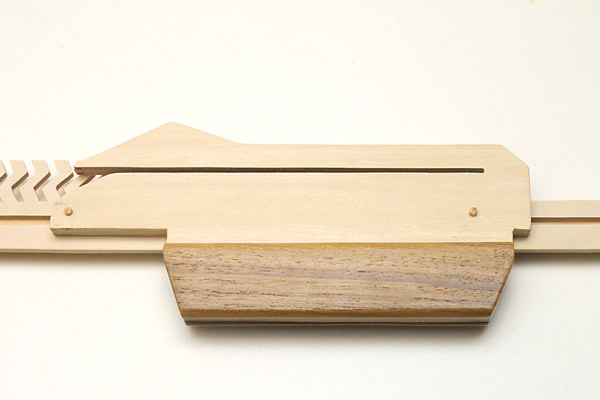

Releaser is large.

p217

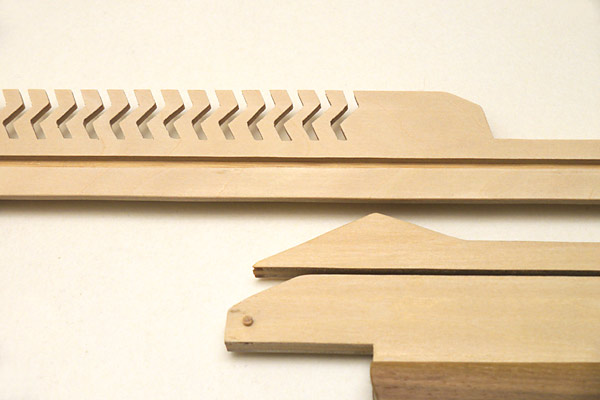

Inside of the main frame.

p217

Forward position.

p217

Backward position.

p217

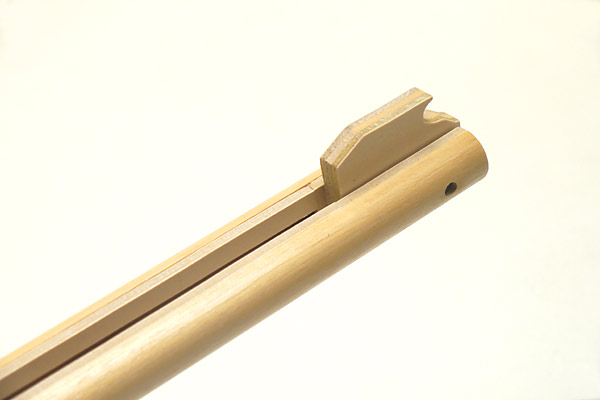

Mazzle head.

p217

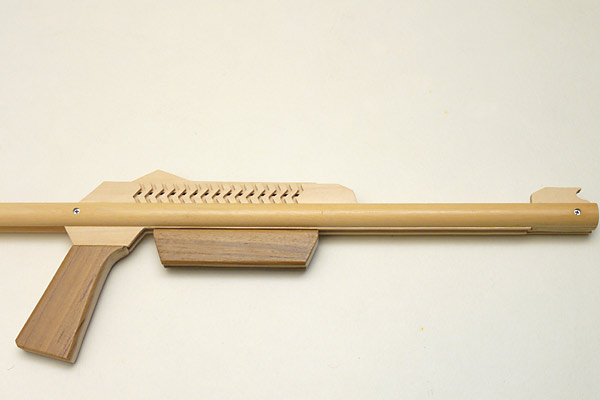

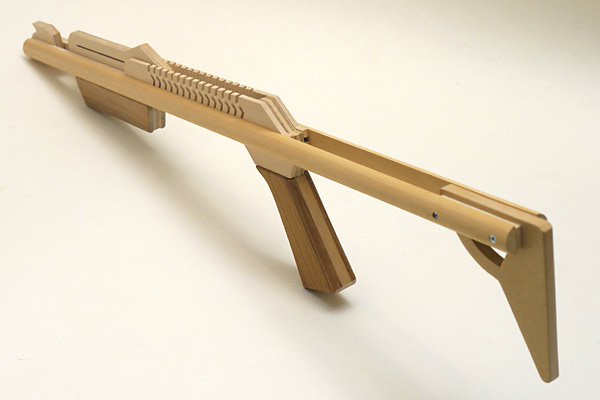

It looks like a shot gun rather than a machine gun.

p217

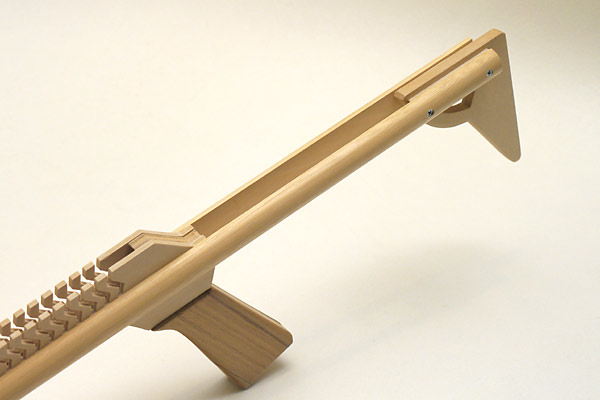

Stock.

p217

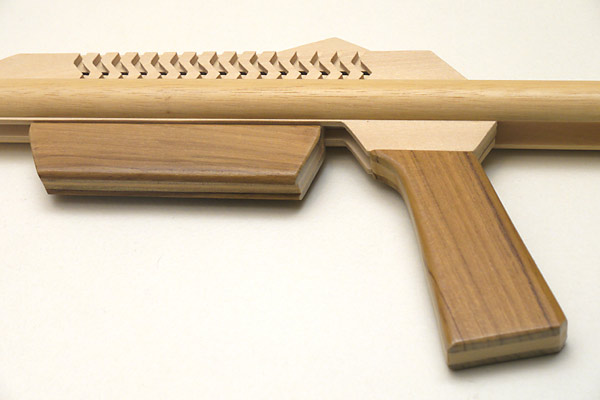

Grip is made from teak.

p217

p217

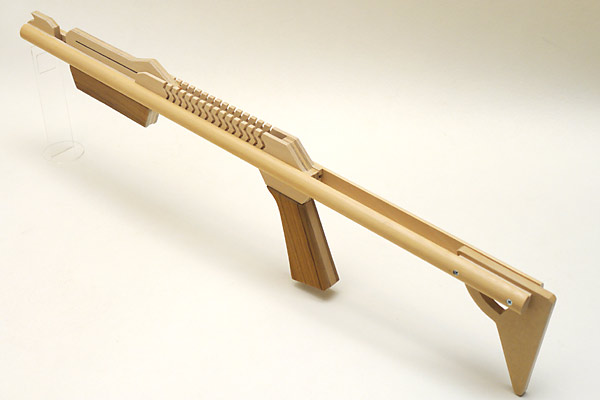

P217 LIGHTNING with newly-invented mechanism.

p217

Please watch the video.

YouTube video


- SPECIFICATION -

<Completion Date> 2013/09
<Model Name> P217 LIGHTNING
<Category> MACHINE GUN
<Length> 680 MM
<Barrel Length> 230~360 MM
<Capacity> 30 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Manual-Pseudo-Full-Auto
