P215 SHAQUERINE

01
There is a video
p308

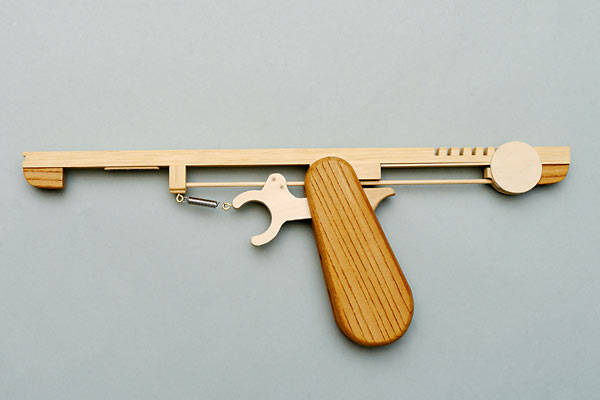

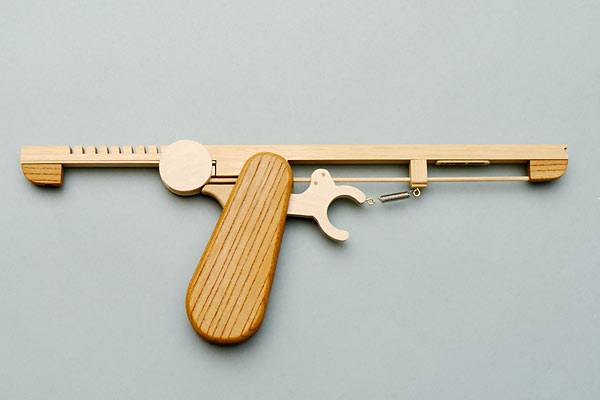

8 rounds hand gun P215 SHAQUERINE.

p308

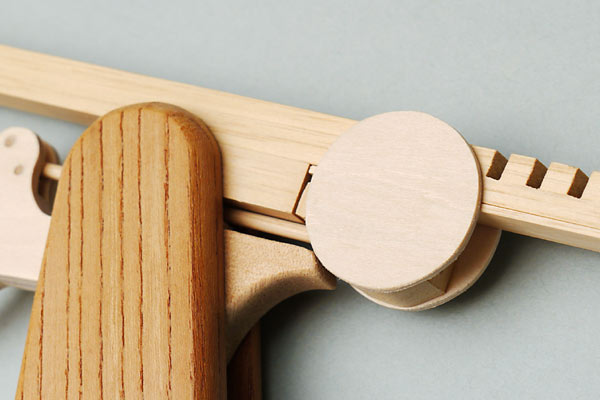

Releaser.

p308

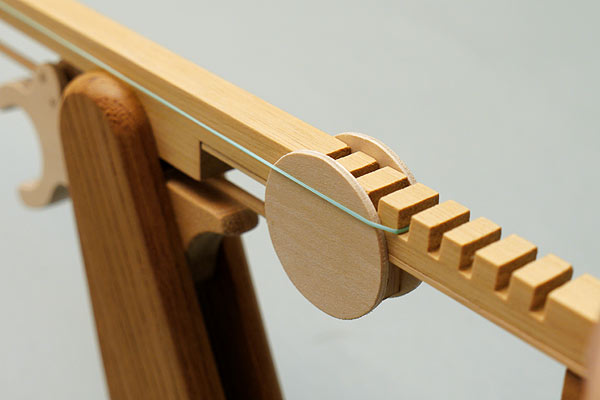

Rubber bands are released by the ramp of a circle releaser.

p308

It has a rod that is very important part.

p308

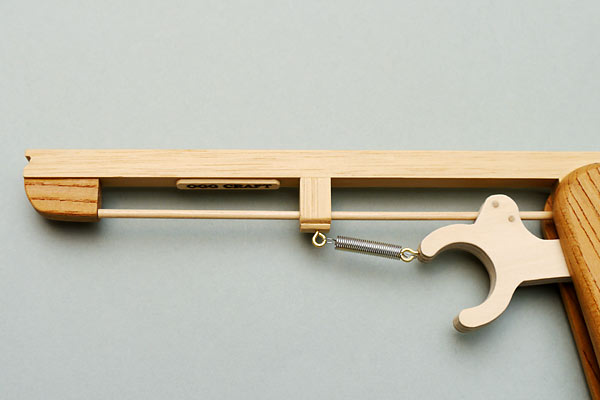

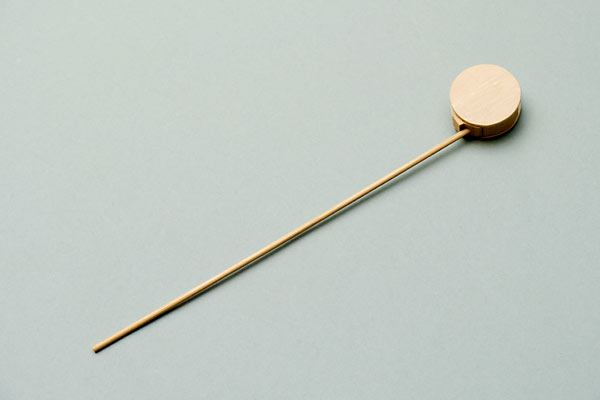

Rod and releaser.

p308

How is the rod sent backward ?

The idea came from a detachable-rope-lift-system of a mountain ski ground.

p215

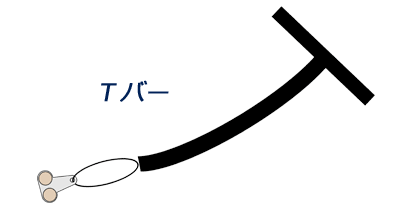

It is T-bar.

p215

How to use the equipment.


p215

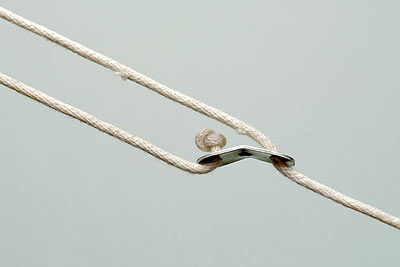

It use a principle of the lever. This rope-stopper is same too.

p308

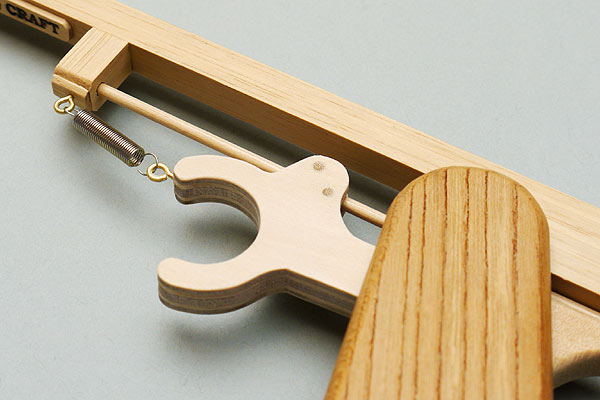

There are two pins in the trigger. They lock the rod and send it backward with above principle.

p308

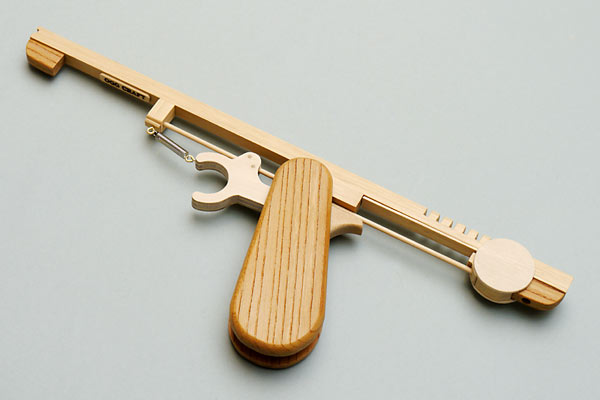

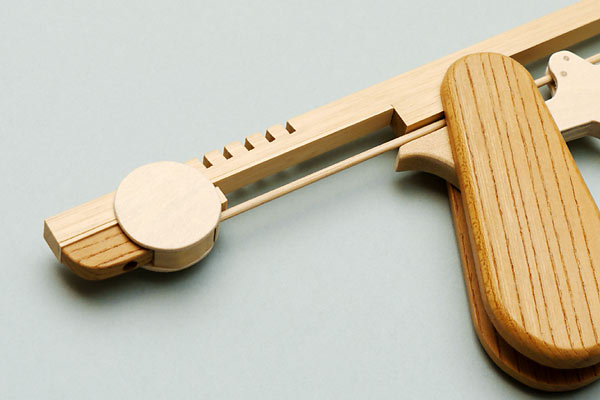

The most forward position.

p308

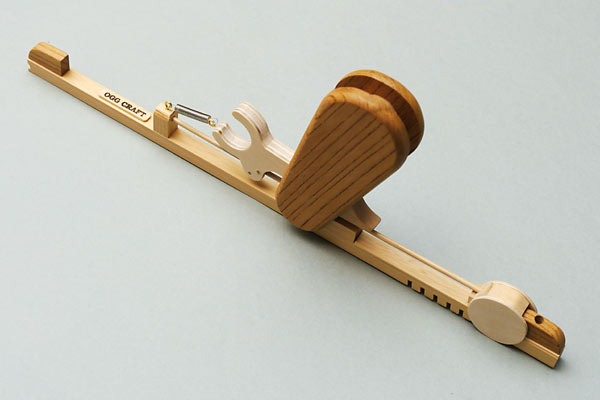

The most backward position.

p308

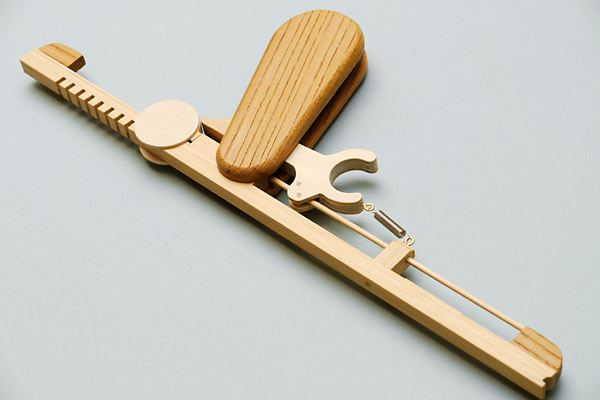

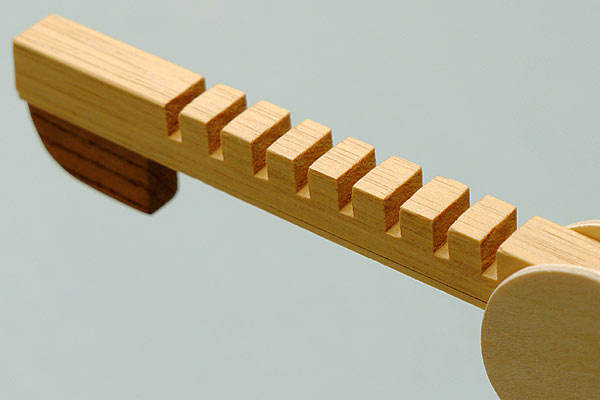

8 holding grooves cut by a circular saw.

p308

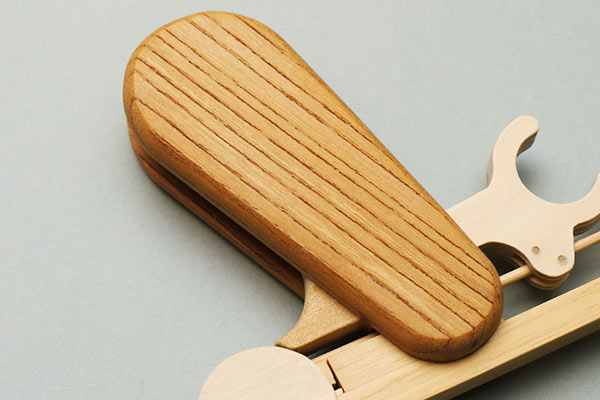

Coated with urethane.

p308

The name comes from Japanese "Shakuri".

p308

Please watch the video.

YouTube video


- SPECIFICATION -

<Completion Date> 2011/04
<Model Name> P215 SHAQUERINE
<Category> HAND GUN
<Length> 355 MM
<Barrel Length> 265~320 MM
<Capacity> 8 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Semi Auto
