P104 CONVATT
OGG CRAFT
There is a video
p104

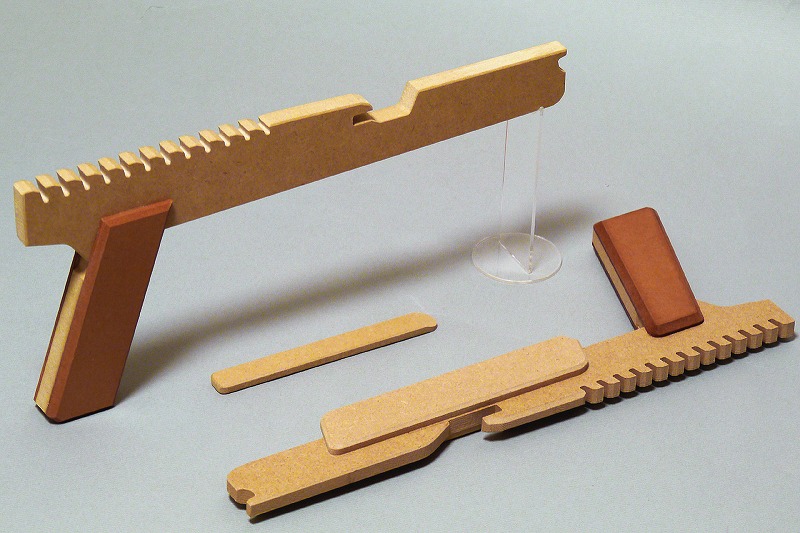

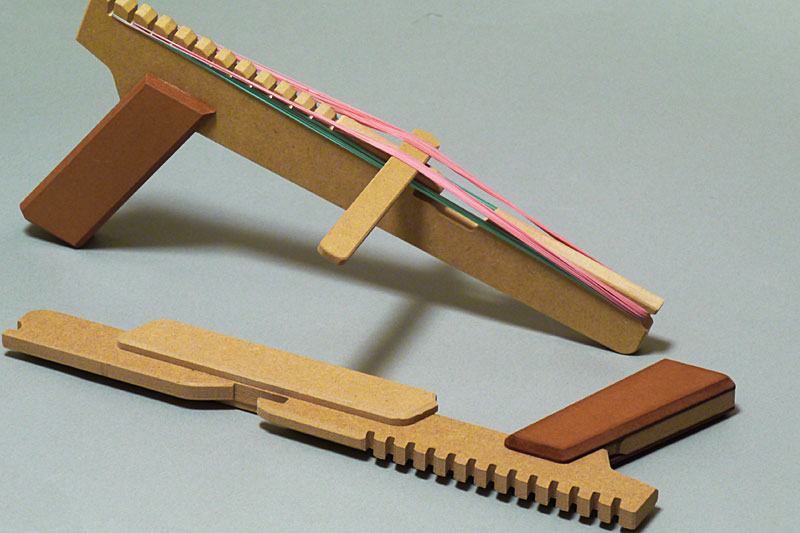

The P104 CONVATT with "Pseud-full-Automatic-Mechanism".

p104

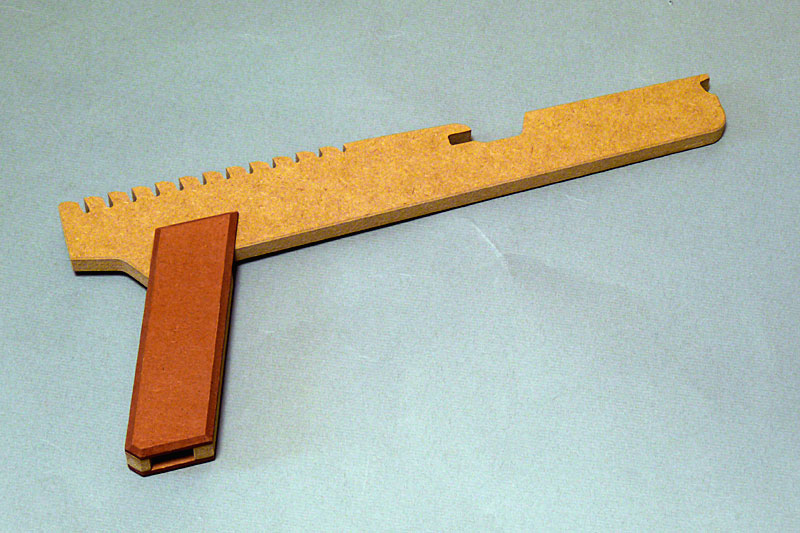

Simplest machine gun.

p104

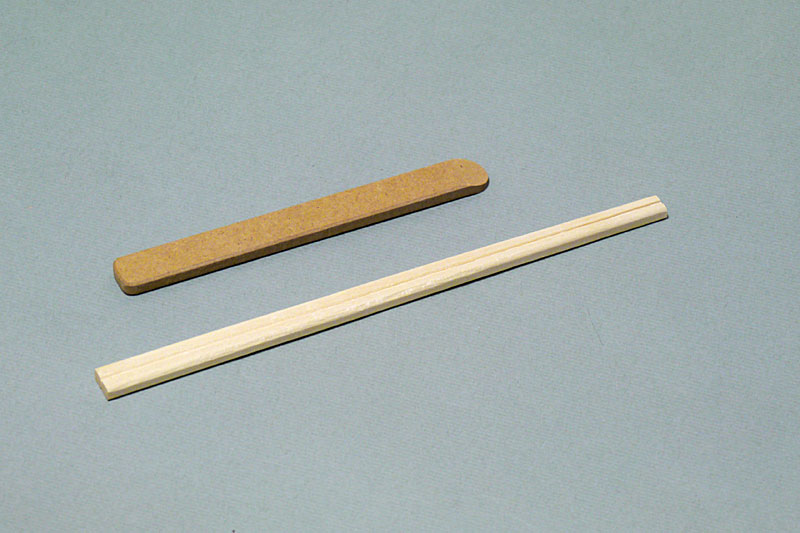

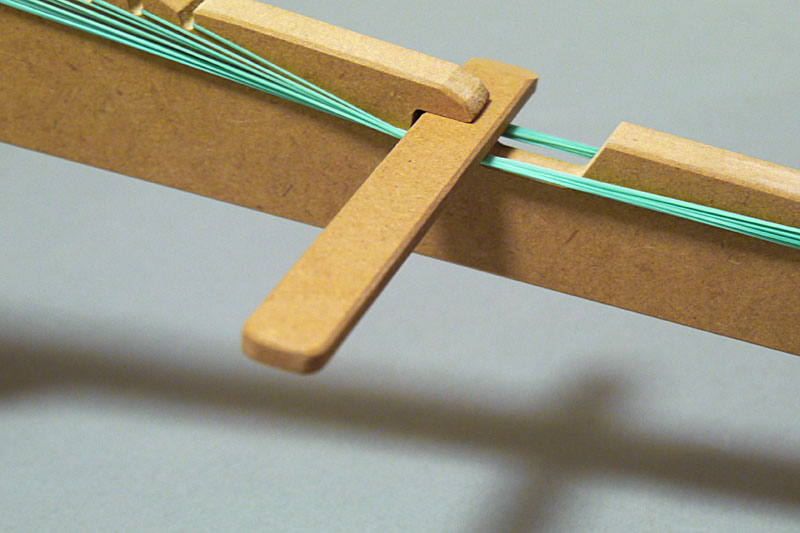

Releasing bar.

p104

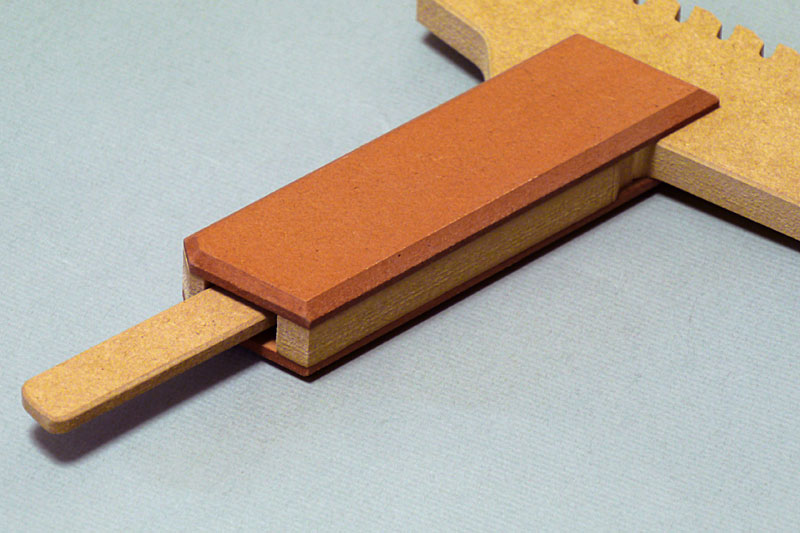

Grip-in system for the releasing bar.

<p104

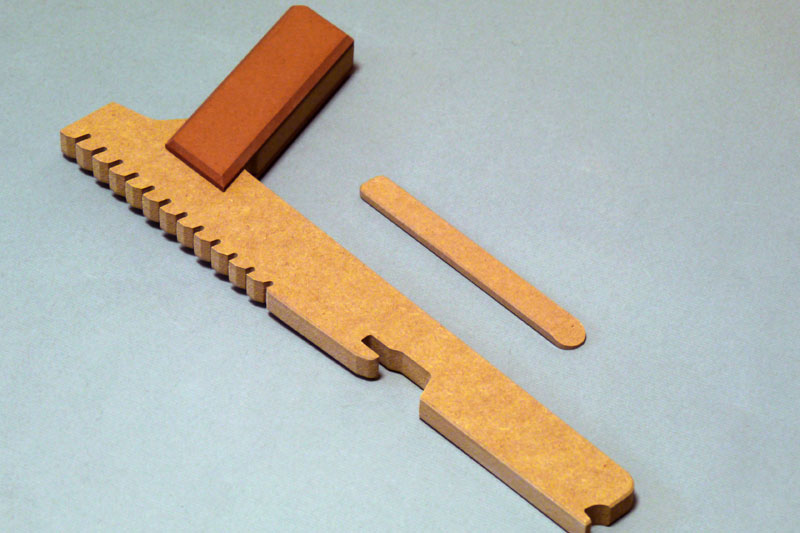

12 holding slits.

p104

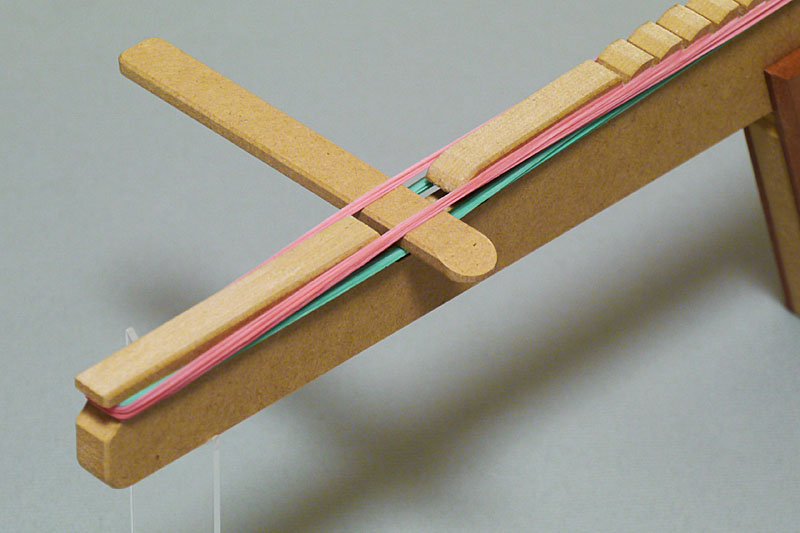

Stacking loading system.

p104

Resting point for the releasing bar.

p104

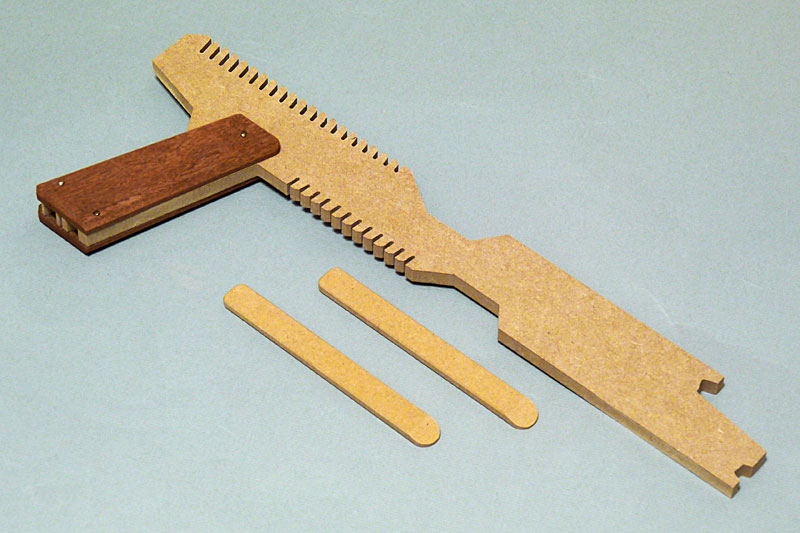

Trial work (60 rounds capacity).

p104

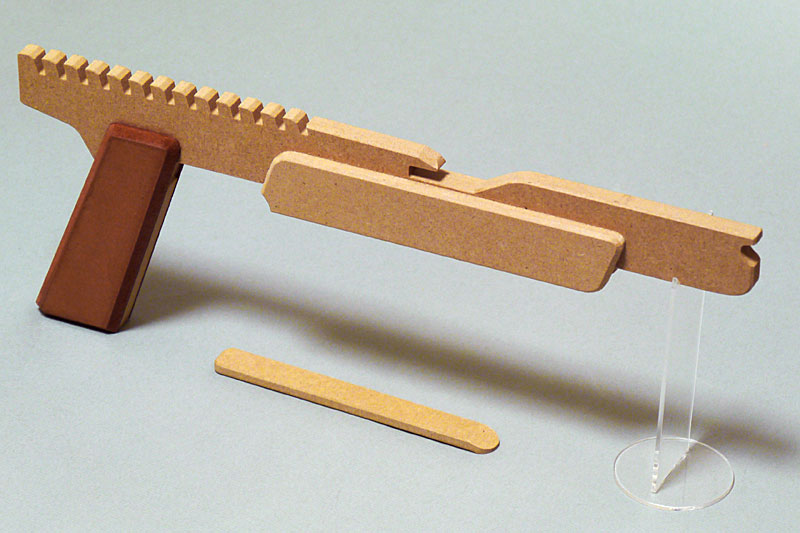

And another one with fore grip.

p104

Please watch the video.

YouTube video



And, PDF drawing is here. (simplified version for scroll saw cutting)

- SPECIFICATION -

<Completion Date> 2017/09
<Model Name> P104 CONVATT
<Category> Sub Machine Gun
<Length> 310 MM
<Barrel Length> 180~295 MM
<Capacity> 24 rounds
<Ammo> #16 Rubber Band (Japan Industrial Standards)
<Action> Manual pseud full automatic
