How to make P212 PULL AUTO (25 rounds)
OGG CRAFT
Easy building Sub Machine Gun
- Note -
  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.
  • Do not over-load rubber bands.
  • Do not aim other person.

    • Do you understand and accept above? Then let's try to build it.
    - Parts name -
    parts name

    - Materials -
  • Wooden square timber 10 x 10 mm
  • Plywood or Plastic plate, thichness 2 ~ 3 mm (for Releasing-plates)
  • Your choice of Wooden board, thickness 5 ~ 7 mm (for Grip-panels)
  • Wood screw x 3

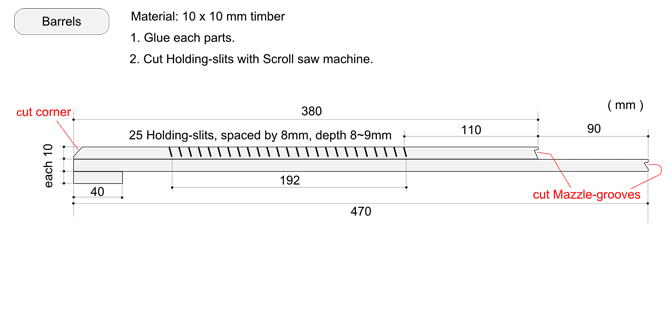

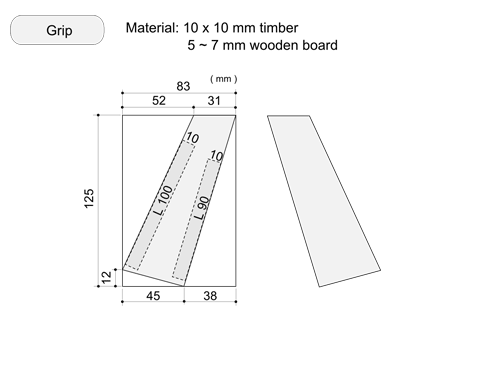

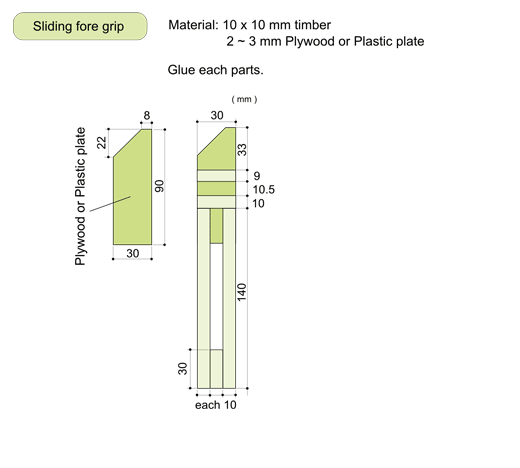

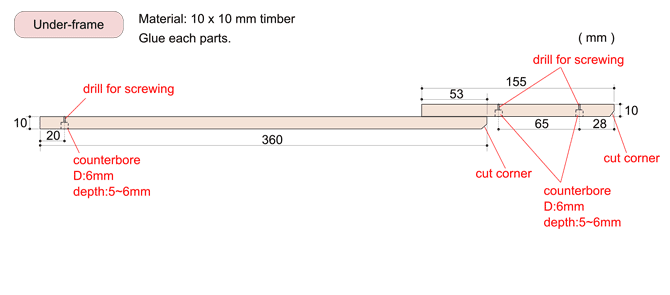

    • - Cutting size of each parts -
    parts size
    parts size
    parts size
    parts size

    Cut out each parts from the materials.
    Glue each parts.
    Sandpaper each parts for getting smooth action.

    - Assembling -
    assemble

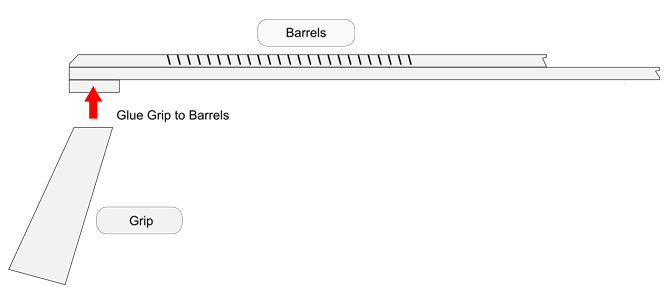

    1. Barrels + Grip.

    assemble

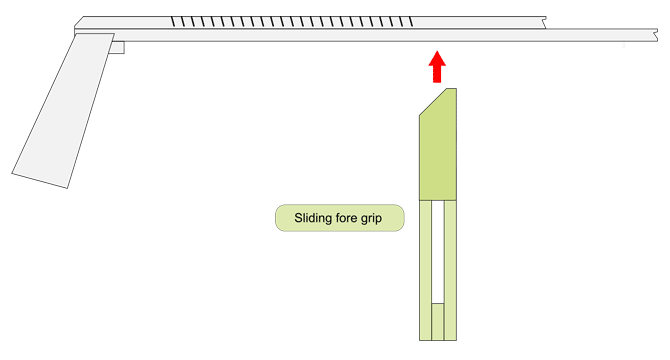

    2. Put the "Sliding fore grip" at the Barrels.

    assemble

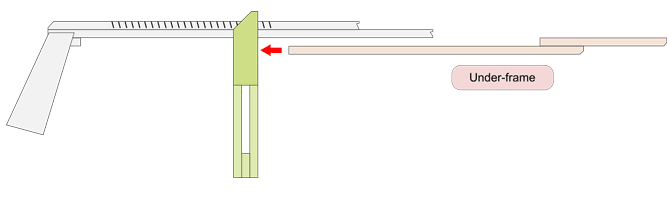

    3. Insert the "Under frame" through the "Sliding fore grip" from front.

    assemble

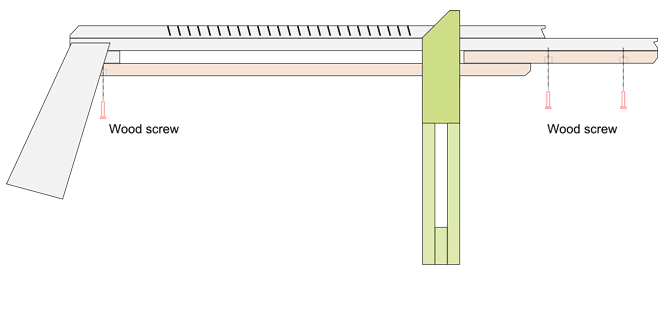

    4. Screw it.

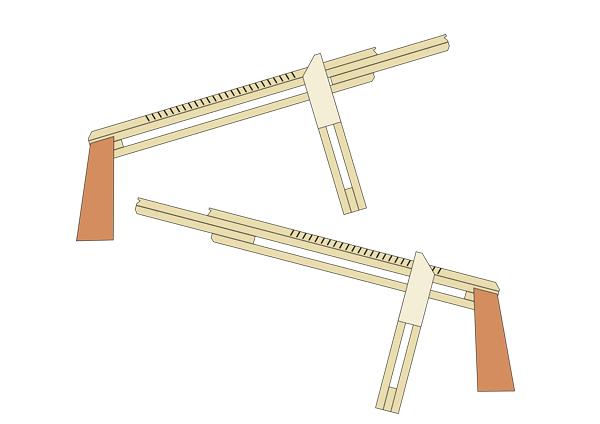

    - Finished -
    assemble

    The detail is here.

    2013.04.24 UP
