Rubber Band Gun made from square stick
top
Designed for Japanese magazine "Kodomo no kagaku (Science for children)"

I designed a sigle shot Rubber Band Gun using mainly wooden small square stick. It was named P210 Koka.

- Note -

  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.
  • Do not over-load.
  • Do not aim other person.

    • Please understand and accept above. Then let's enjoy your hadicraft!

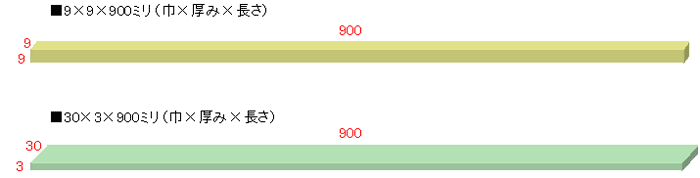

    - Materials -
    how to make

  • Wooden square timber 9 x 9 mm
  • Wooden board 30 x 3 mm thickness
  • Wooden screw x 4

    • - Tools -

    Scroll saw or coping saw
    Pin vice
    Wood glue
    Sandpaper
    Screw driver

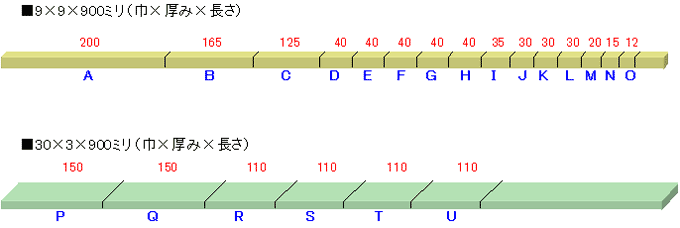

    - Cutting -
    how to make

    Like images, cut out each parts.

    - Glueing -
    how to make
    1. Barrel

    Glue A and B.
    Cut the muzzle-groove at the front-tip of the Barrel.
    Drill a prepared hole to the under face of the Barrel and put a screw.


    how to make
    2. Releaser

    Glue G and H. Cut out the shaded area.


    how to make
    3. Trigger

    Glue J and K and L.
    Cut out the shaded area.


    how to make

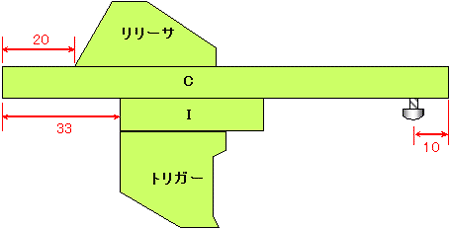

    4. Trigger-group

    Glue C and I.
    Glue the Releaser to C and glue the Trigger to I.
    Drill the prepared hole to under face of C and put a screw.
    Also it needs to be moved smoothly in the frame.


    how to make
    5. Frame-panels

    Make a Holding-hook to P and Q.
    Cut out the shaded area.


    how to make

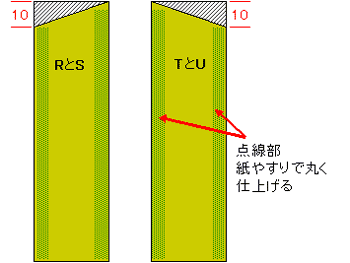

    6. Grip

    Glue R and S. And glue T and U.
    Cut out the shaded area.
    Lastly chamfer the front and rear edge.


    how to make
    7. Grip-base

    Glue D and E and F.
    Cut out the shaded area.

    - Building -

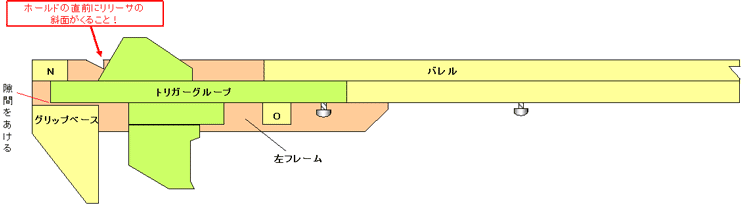

    how to make
    8.

    Put the Trigger-group on the Frame-panel (L) and Glue the Barrel, N, O, and the Grip-base on there.


    how to make

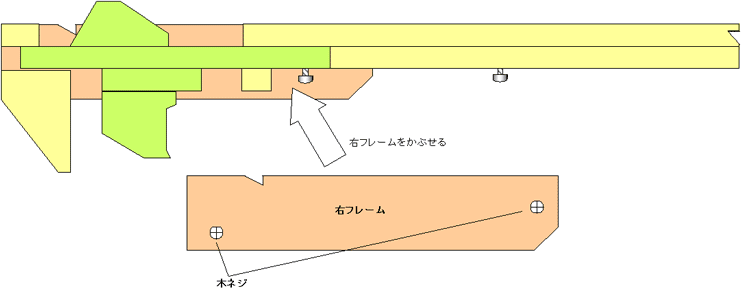

    9.

    Screw the Frame-panel (R) to the work.


    how to make

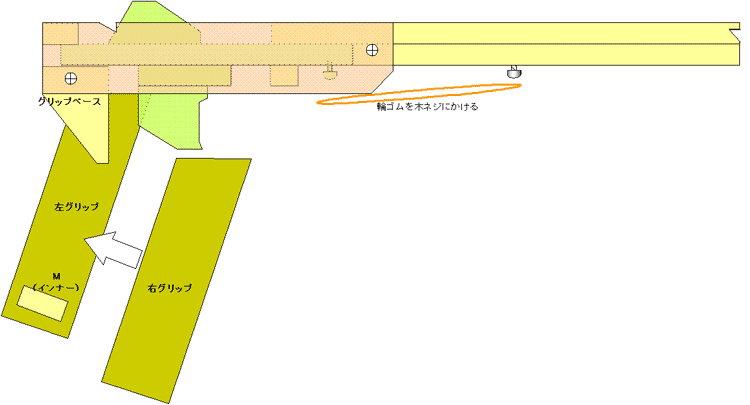

    10.

    Glue both Grips to the Grip-base.
    Glue M into Grip.
    Lastly hang a rubber band to wood screws as Trigger-spring.

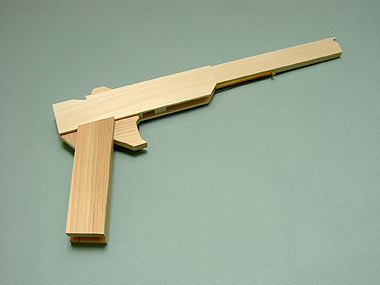

    - Finished work -
