How to make Cardboard Machine Gun
OGG CRAFT

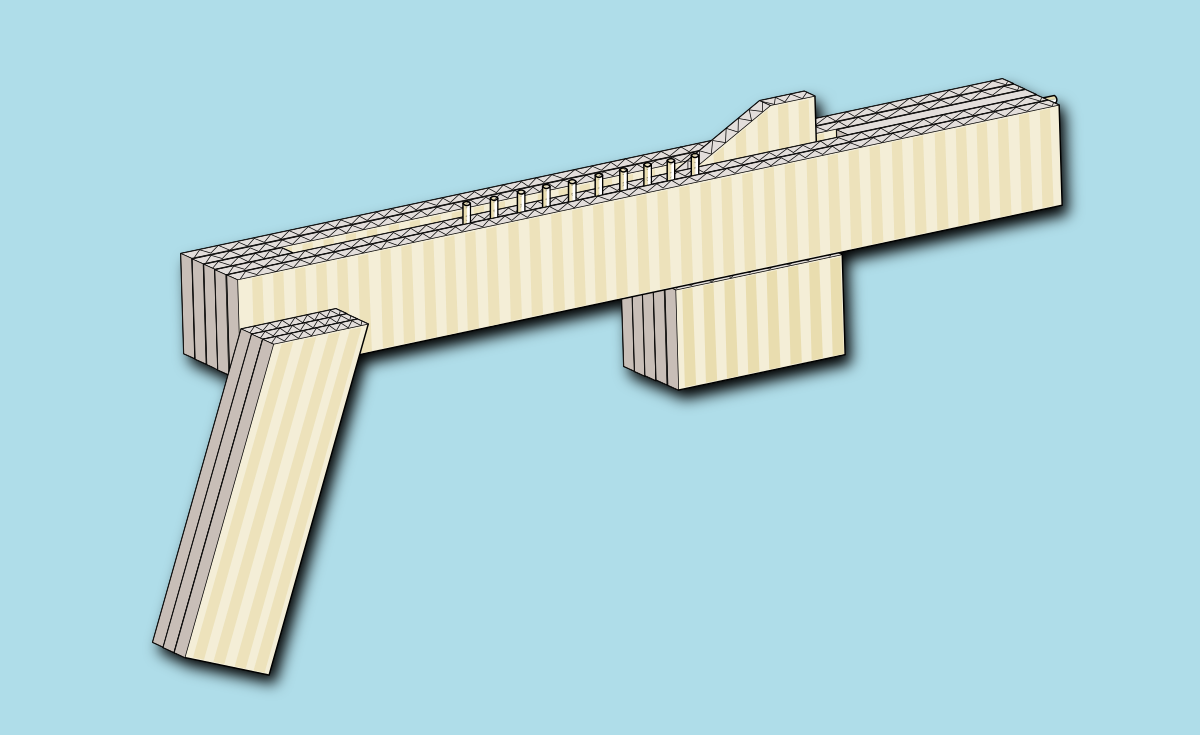

Easy making Rubber Band Gun made of cardboard
- About this model -
Category: Sub machine gun
Capacity: 10 rounds
Mechanism: Ramp release, pseud full automatic


Youtube video
- drawing -

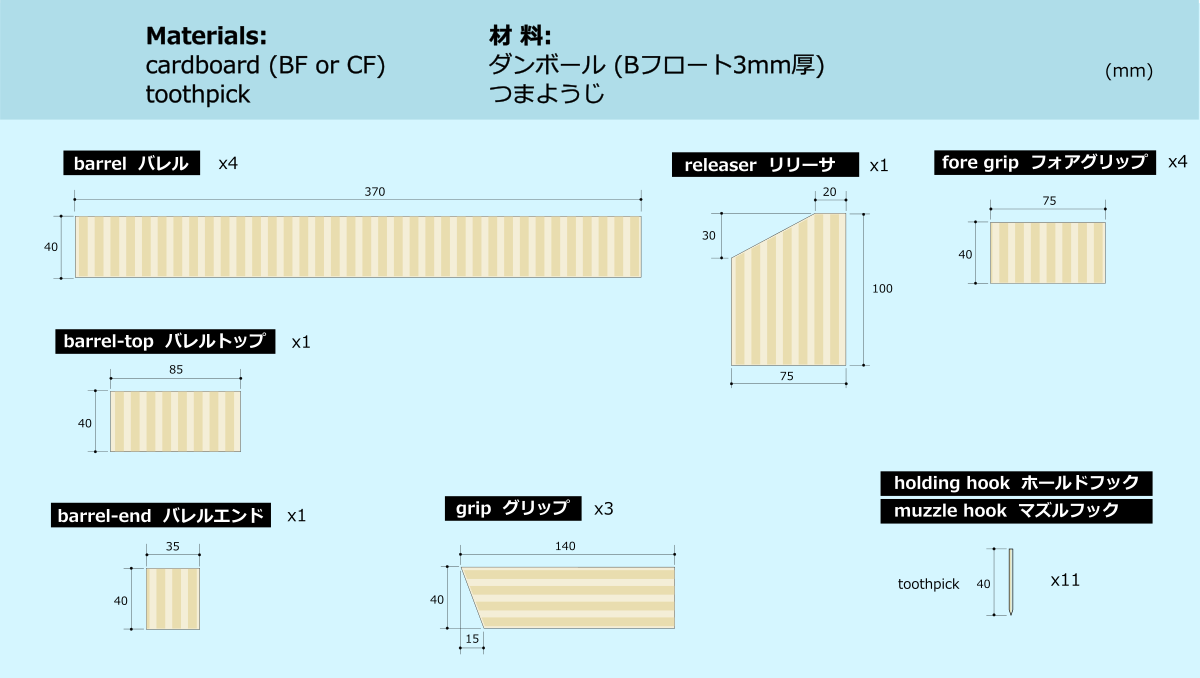

Cut out each part from cardboard according to drawing below.
(vertical lines indicate the flow direction of medium paper)

OGG CRAFT




- Note -
  • Due to variation in individual skill, I offer no warranty for the result of your work. Build it at your own woodworking skill.
  • I do not assume any responsibility for any monetary damage or your bodily injury. Try to build (or play) it at your own risk.
  • Copyright oggcraft.jp. All Rights Reserved.
    You are allowed to use this content for personal hobby use only.
    You are prohibited to sell the kits or finished products or plans that you have built on the basis of this content.
  • Do not over-load rubber bands.
  • Do not aim other person.

    • Do you understand and accept above? Then let's try to build it.
    - Materials -
  • Cardboard (BF or CF)
  • Toothpick --- 11
    • - Tools -
  • Craft knife
  • Wood glue
  • Crip
    • - Assembling -

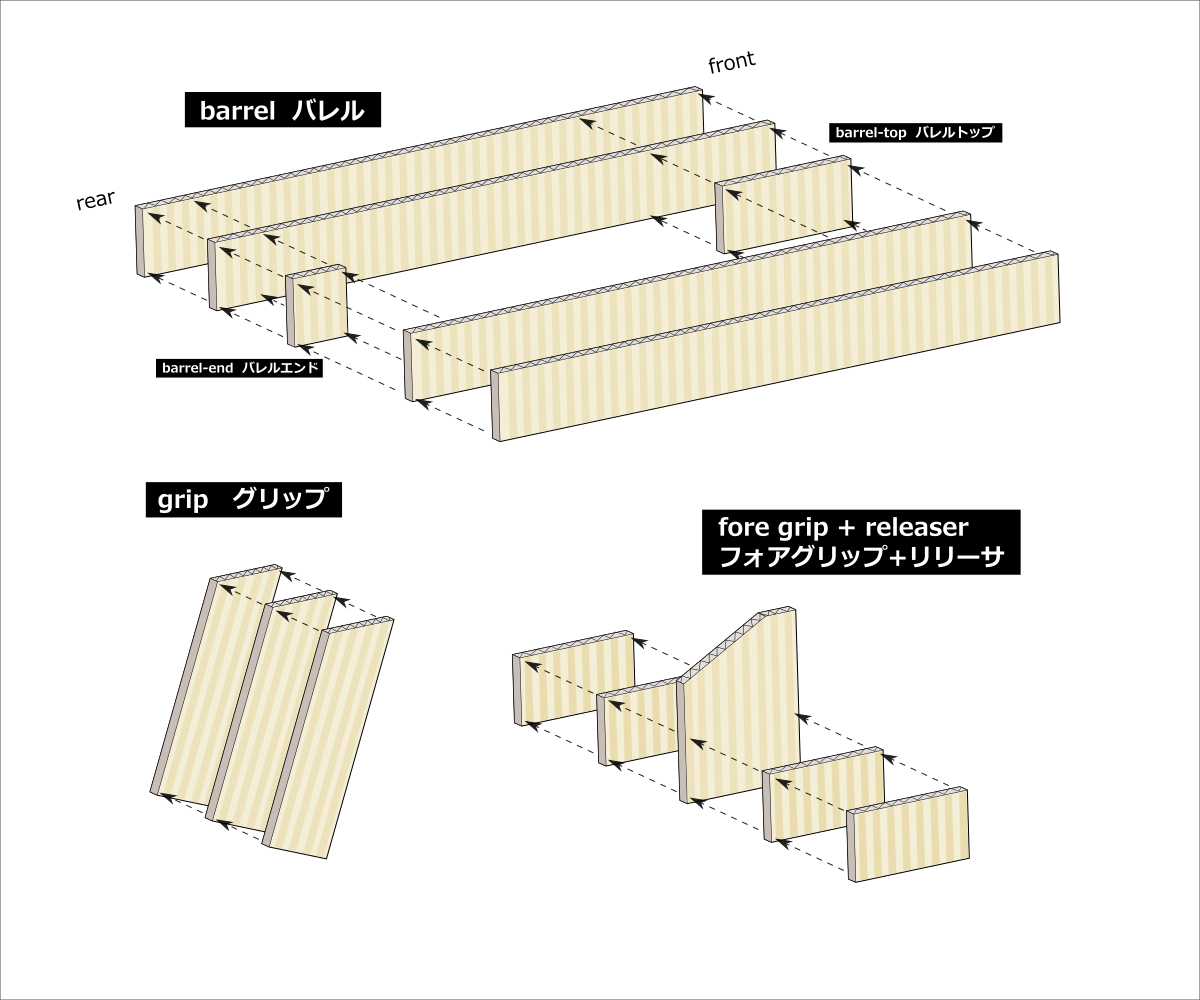

    1 Glueing (barrel, grip, fore grip+releaser)
    OGG CRAFT




    2Add glue the ramp face of the releaser (for hardening).
    OGG CRAFT

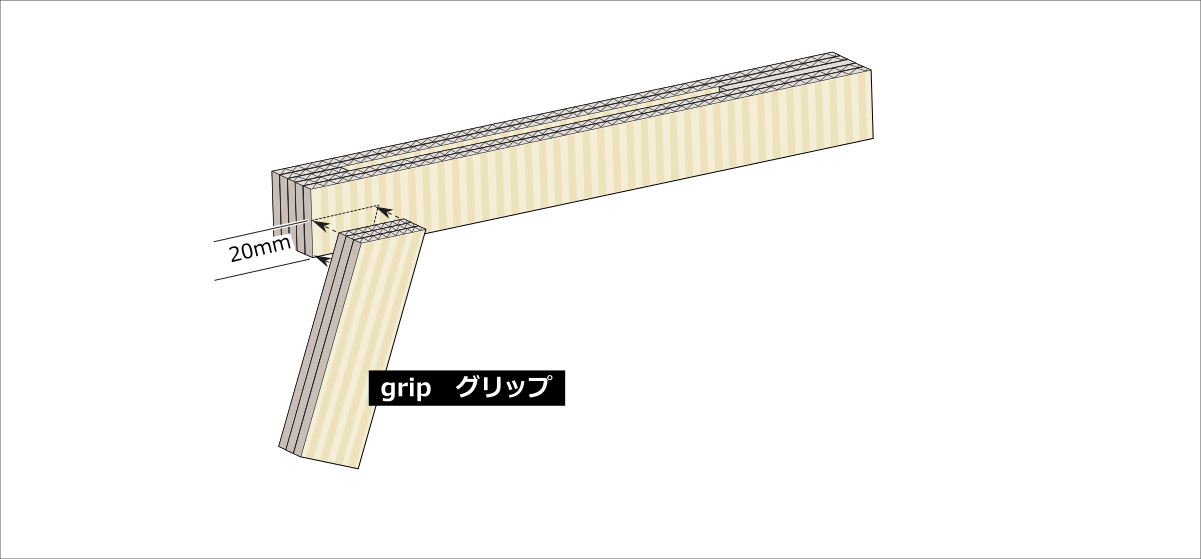

    3Glue the grip to the right side of the barrel.
    OGG CRAFT




    4

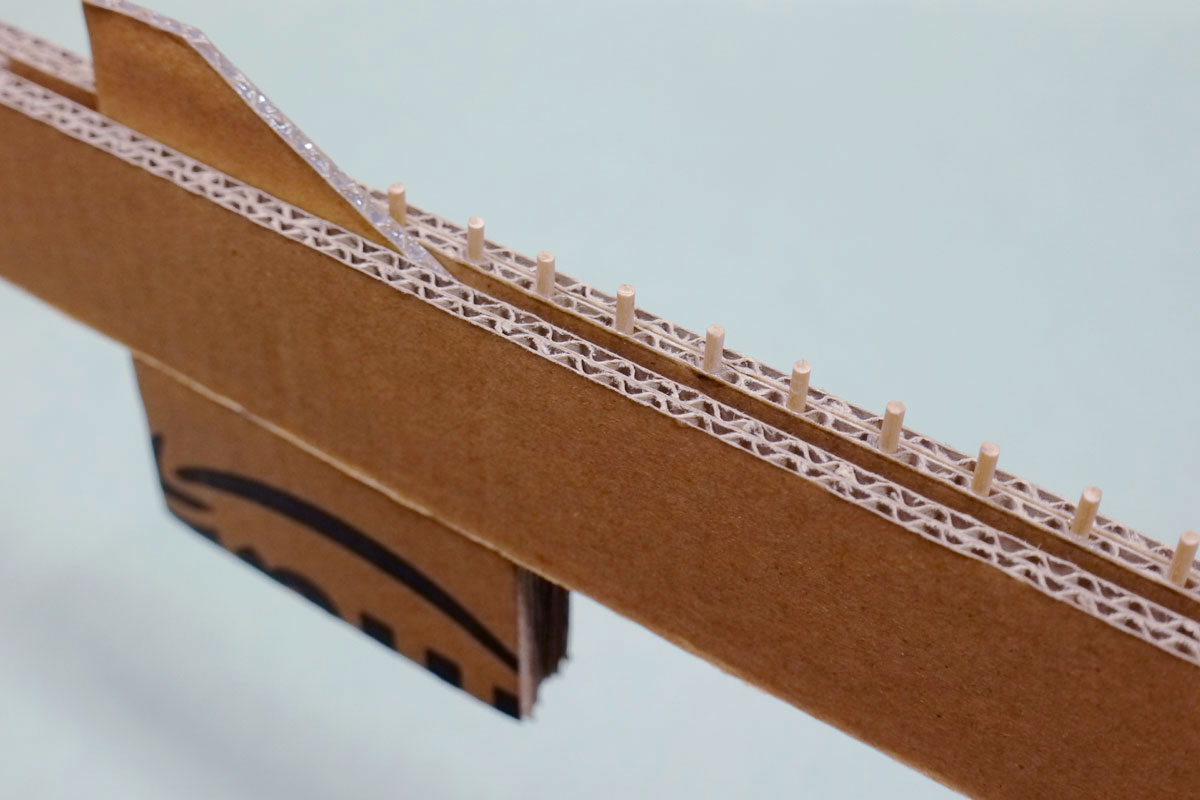

    (1) Insert and glue a pin into the front face as "muzzle hook".
    (2) Insert and glue 10 pins into the top face of the right side barrel plate.
    OGG CRAFT



    - Loading and shooting -
    1 Attach the releaser from the bottom.
    OGG CRAFT



    2
    Load rubber band from rear hook. (10 rounds)
    Slide the fore grip backward, then rubber bands will be released.
    OGG CRAFT



    - Work -
    OGG CRAFT
    Offset hooks.

    OGG CRAFT

    OGG CRAFT

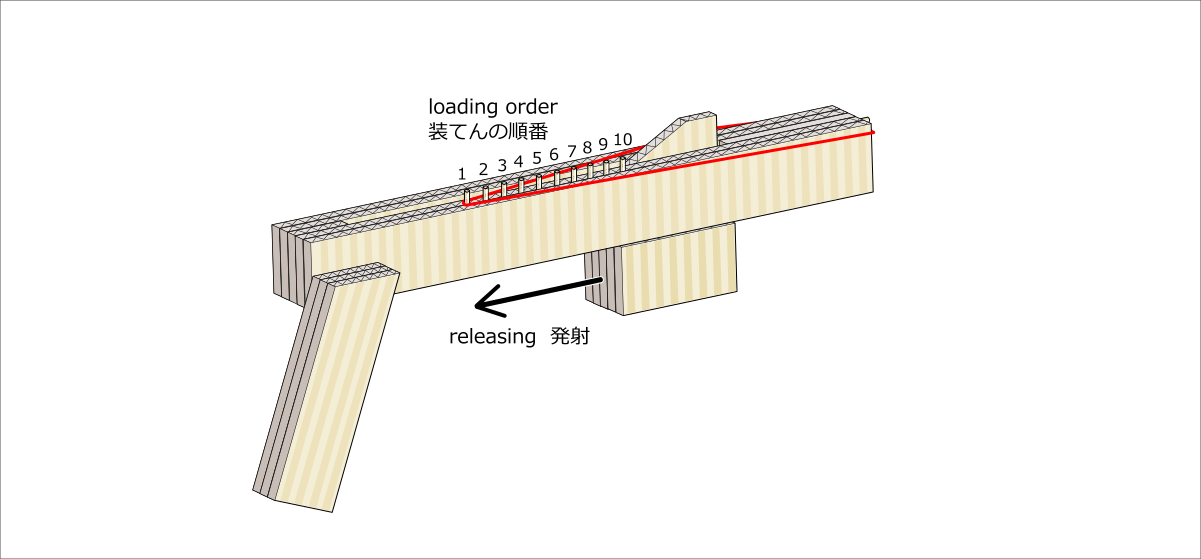

    10 rounds. Rubber bands are released by the ramp of a sharkfin-like releaser.

    2020.05.17 UP
